Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-3 (9440) V6-2.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate
>>
System Diagram
>>

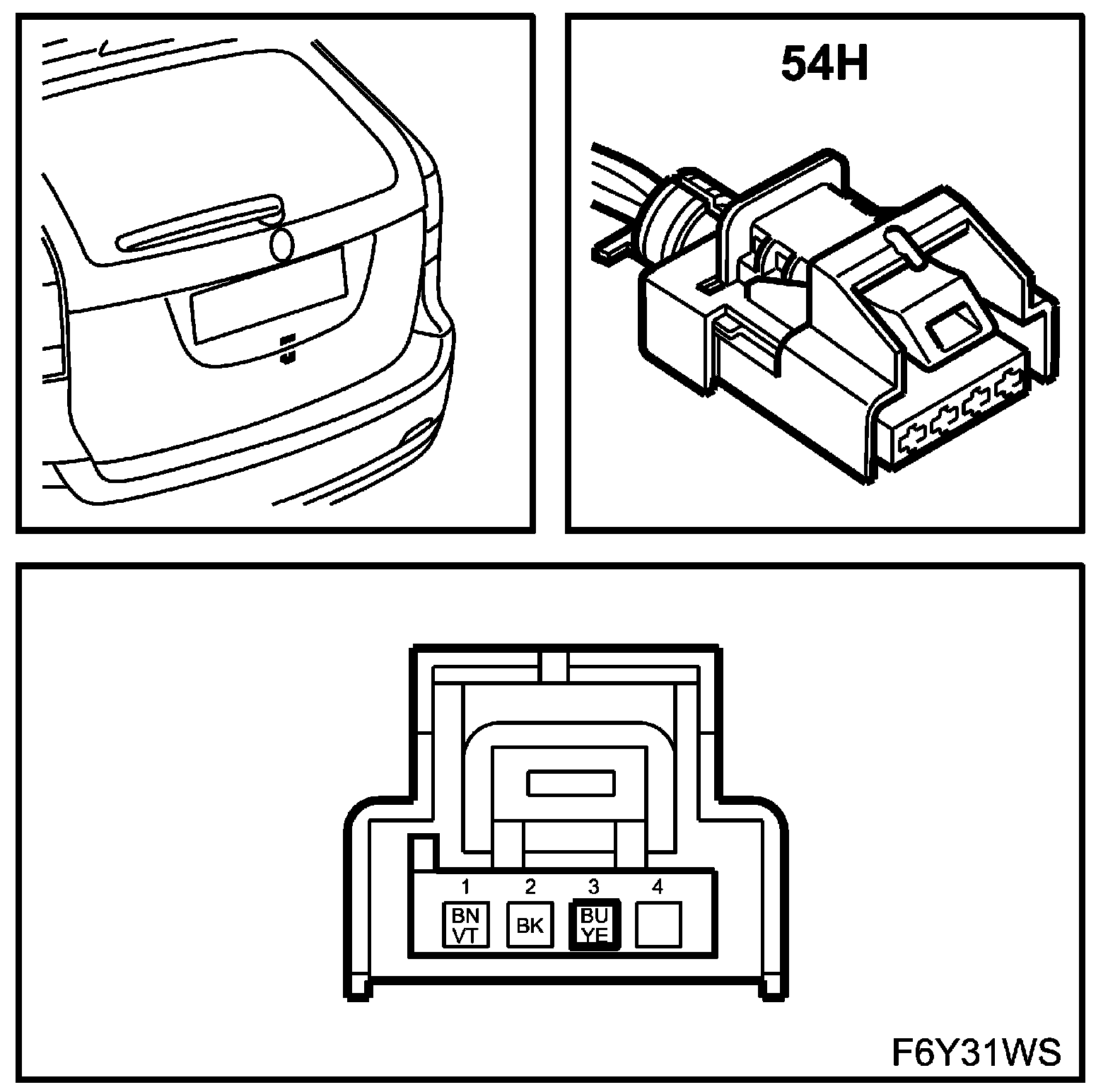

Connector, Boot Lid (54H) 5D
Connector, Boot Lid (54H) 5D
Location:
in the central locking system motor
Connector, Boot Lid (54H):
