Connector H24-6
Connector H24-6

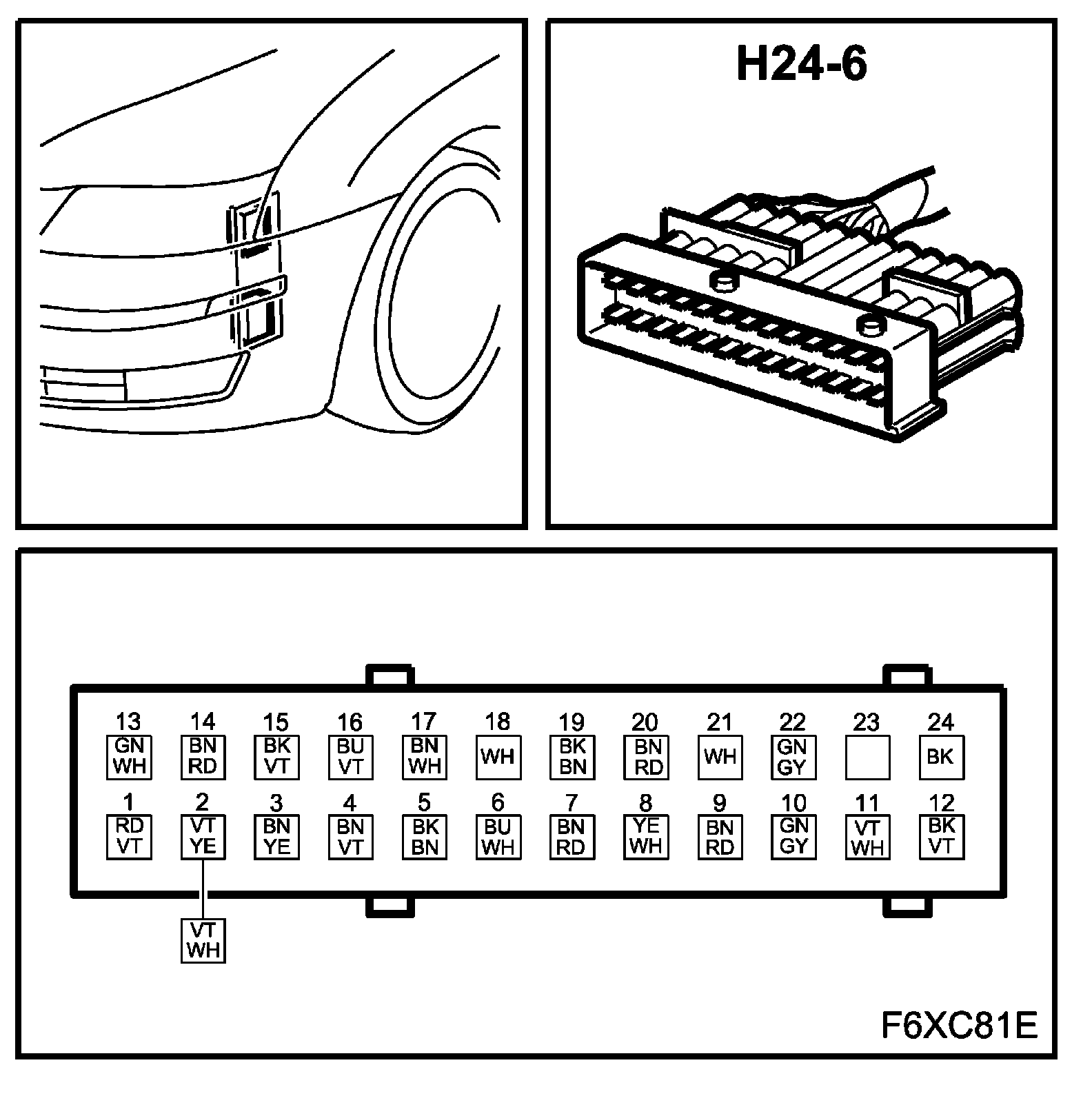

Location:
Grey connector in front of battery on side of left structural member
Connector H24-6 (ME9):
