Boot Electrical Center 701

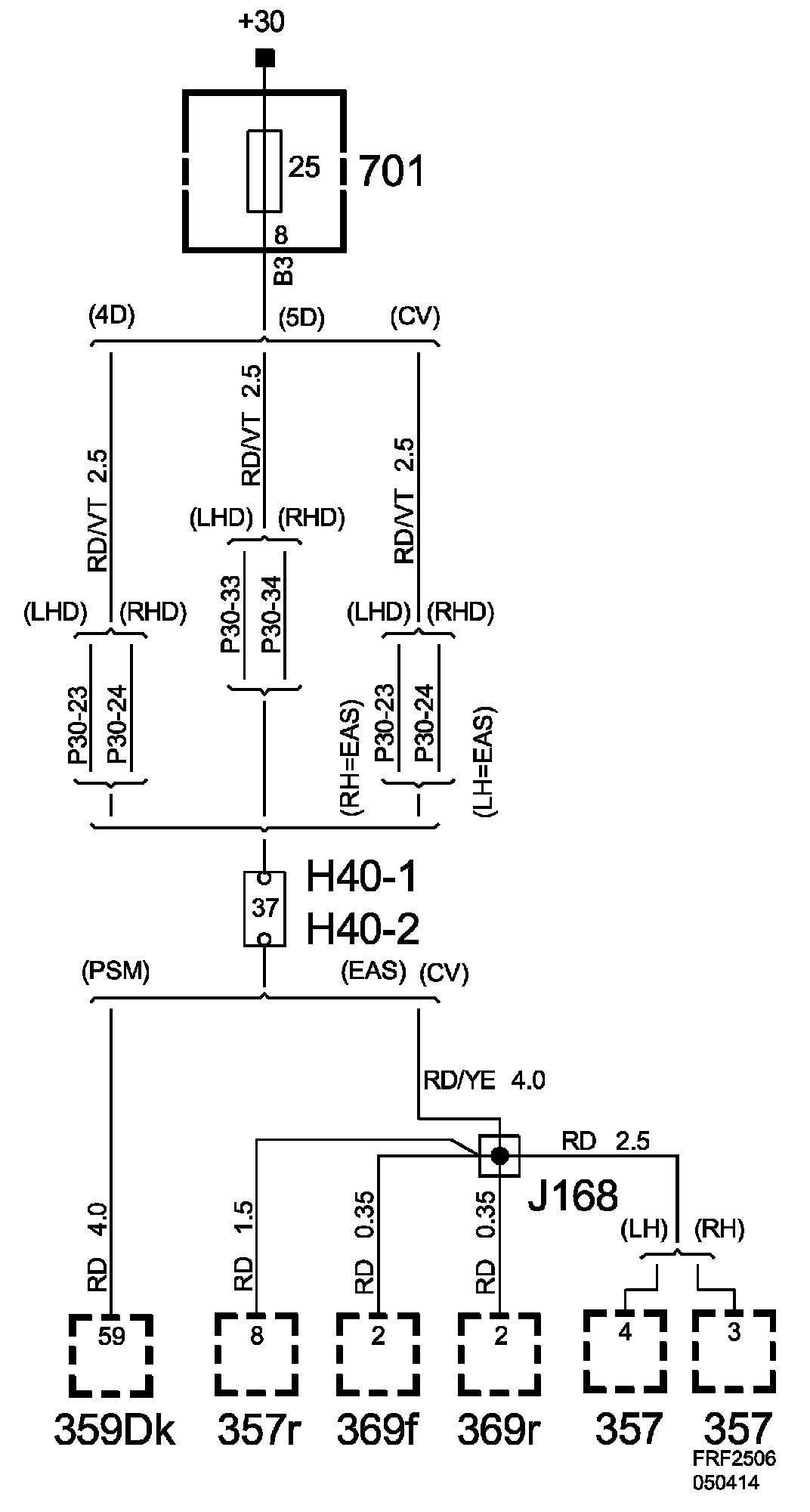

Fuse 25, Boot Electrical Centre 701:

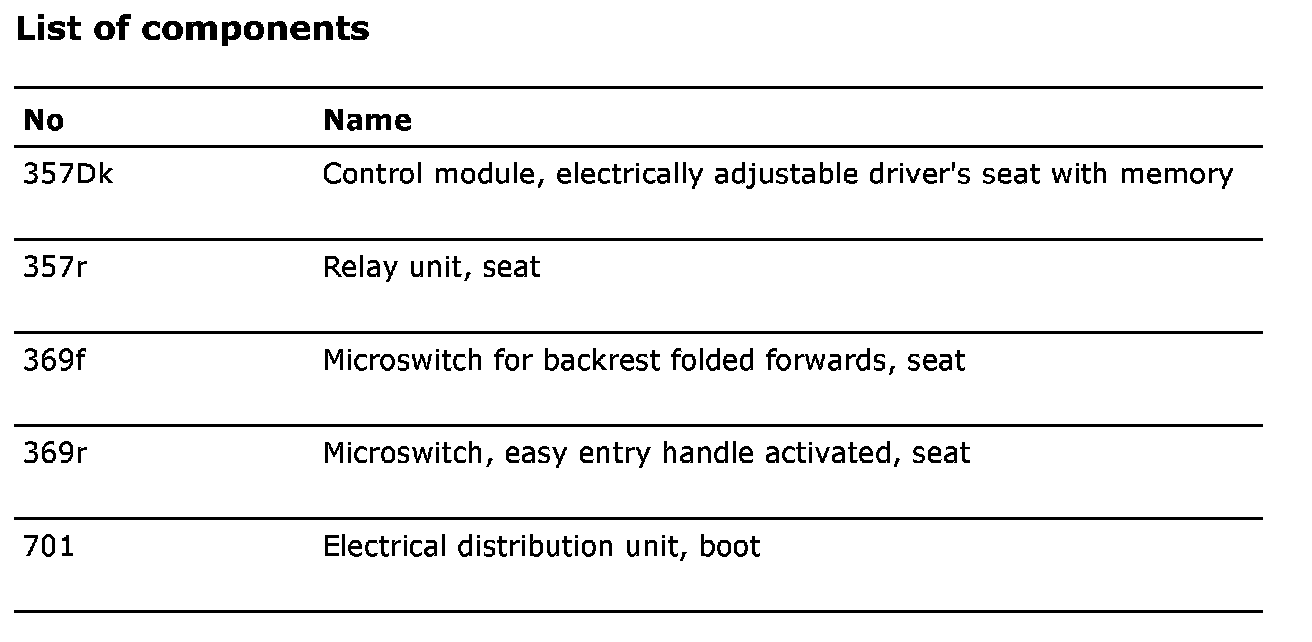

List Of Components:

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
