Power and Ground Distribution
>>
Fuse
>>
Engine Bay Fuse Box 342
>>
Fuse 2
Fuse 2

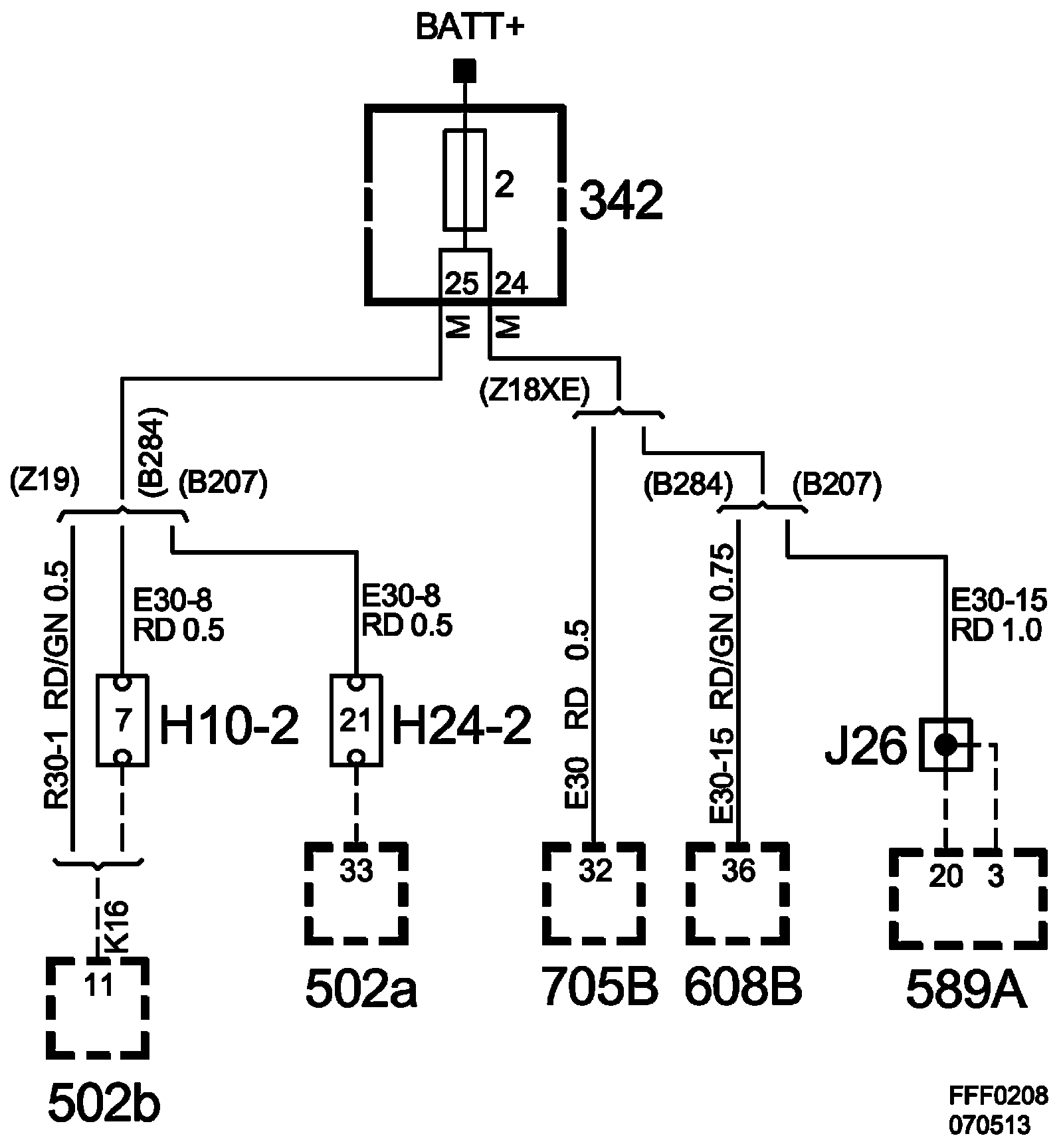

Fuse 2, Engine Bay Fuse Box 342:

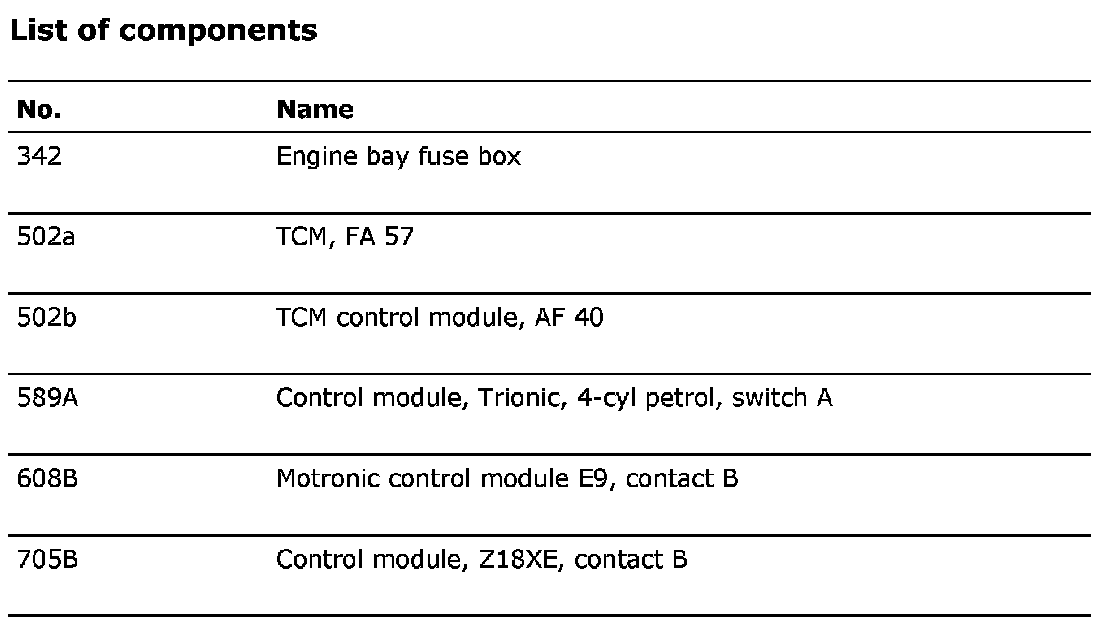

List Of Components:
