Diesel Data: Automotive Repair
Home >> Saab >> 2008 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Main Fuse Box 727 >> Fuse 4

Fuse 4

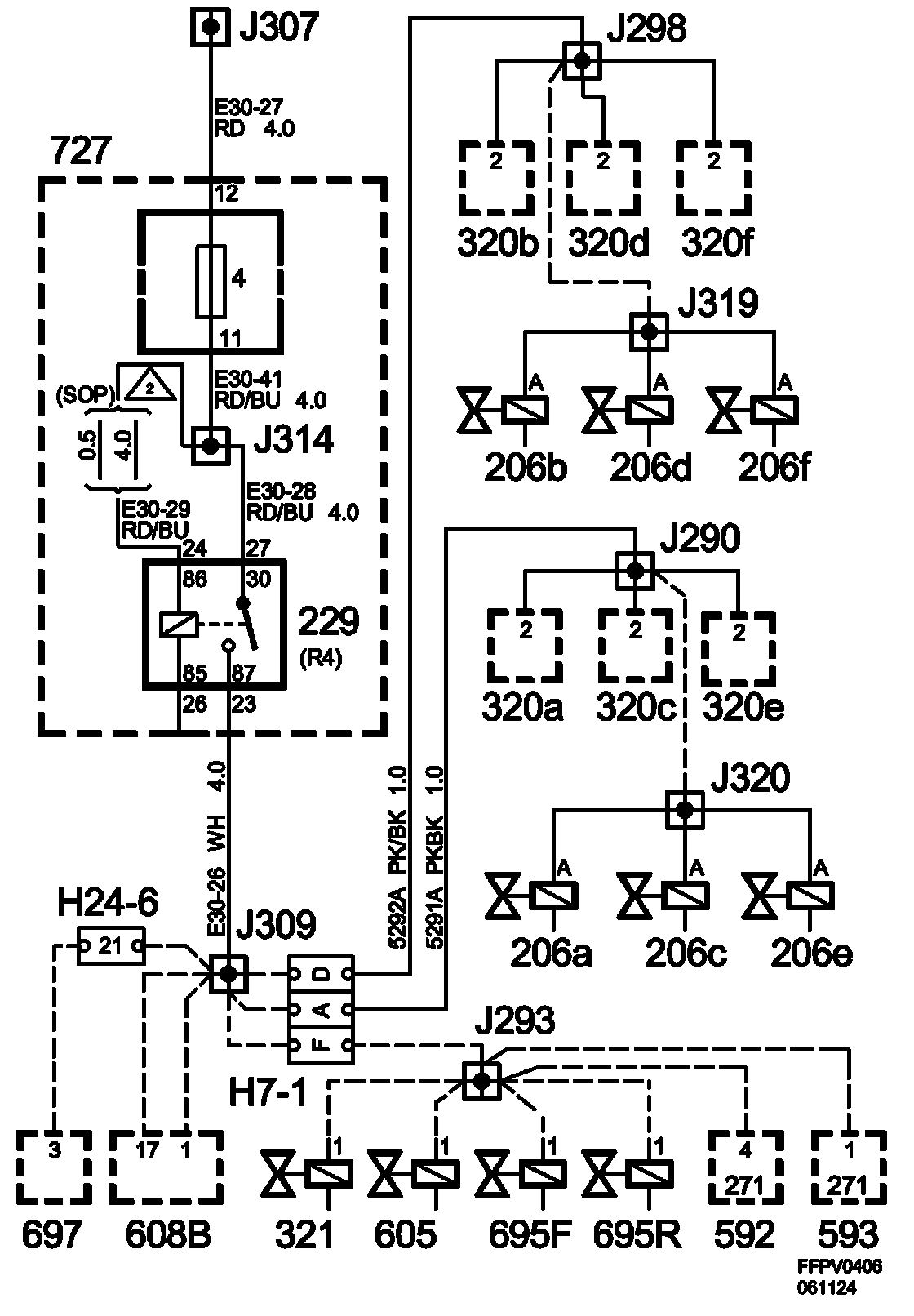

Fuse 4, Main Fuse Box 727:

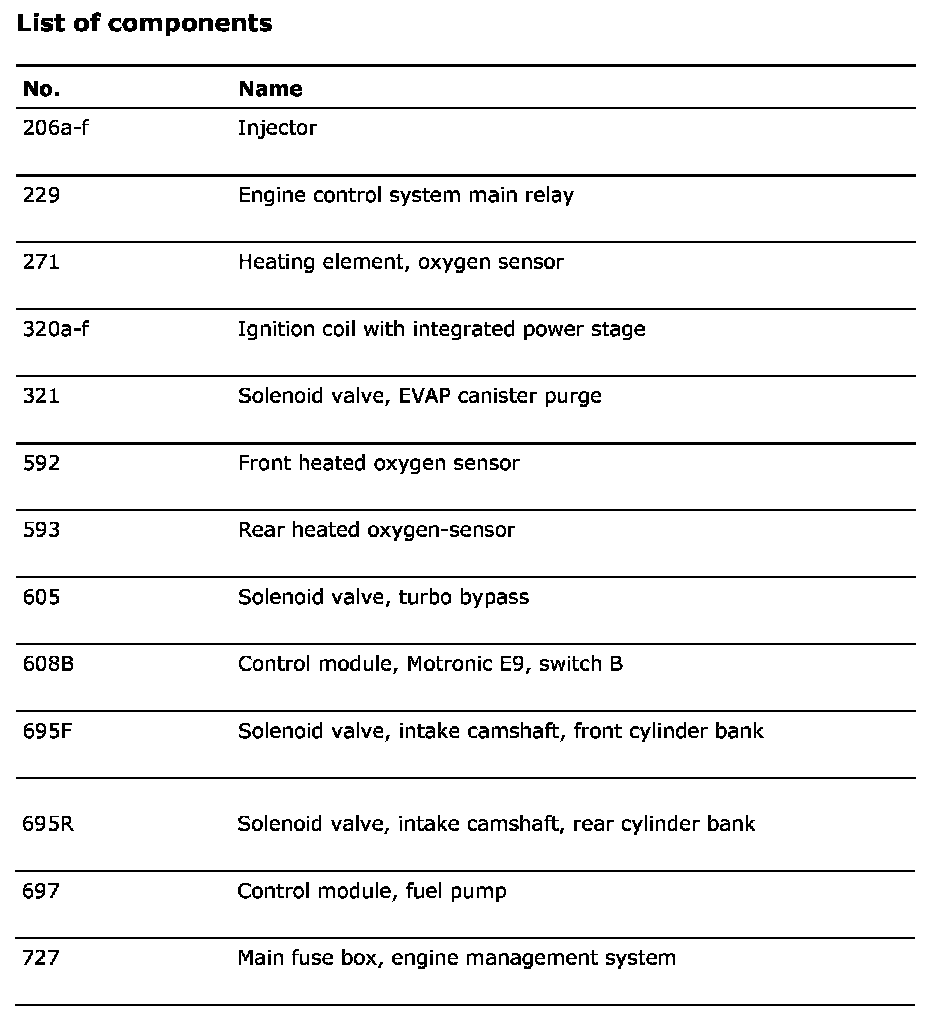

List Of Components:
