Home >> Saab >> 2008 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Main Fuse Box In the Luggage Compartment 701 >> Fuse 24

Fuse 24

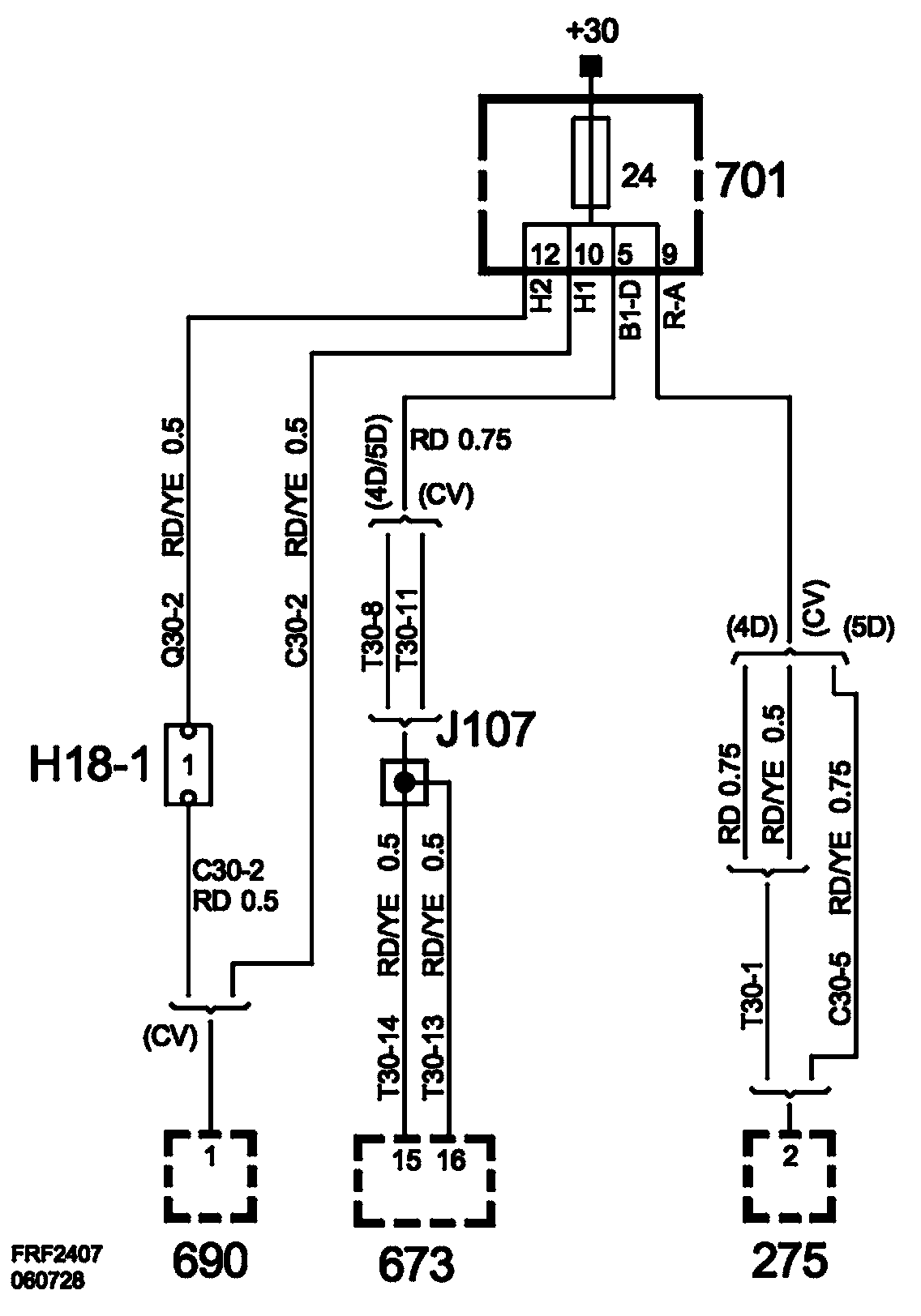

Fuse 24, Main Fuse Box In The Luggage Compartment 701:

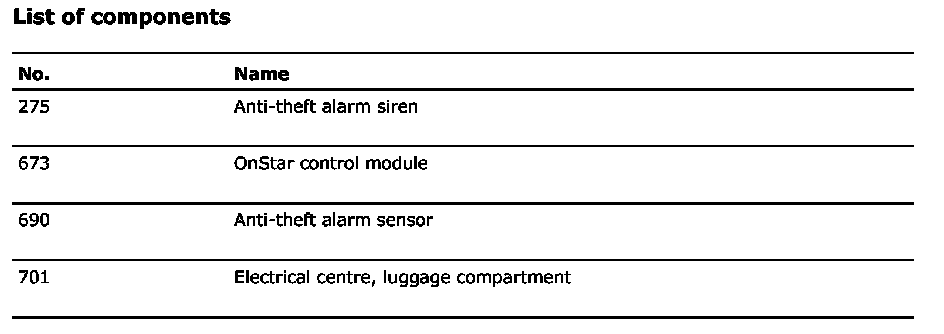

List Of Components:
