Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-3 (9440) V6-2.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Rear Electrical Center 701
>>
Fuse 17
Fuse 17

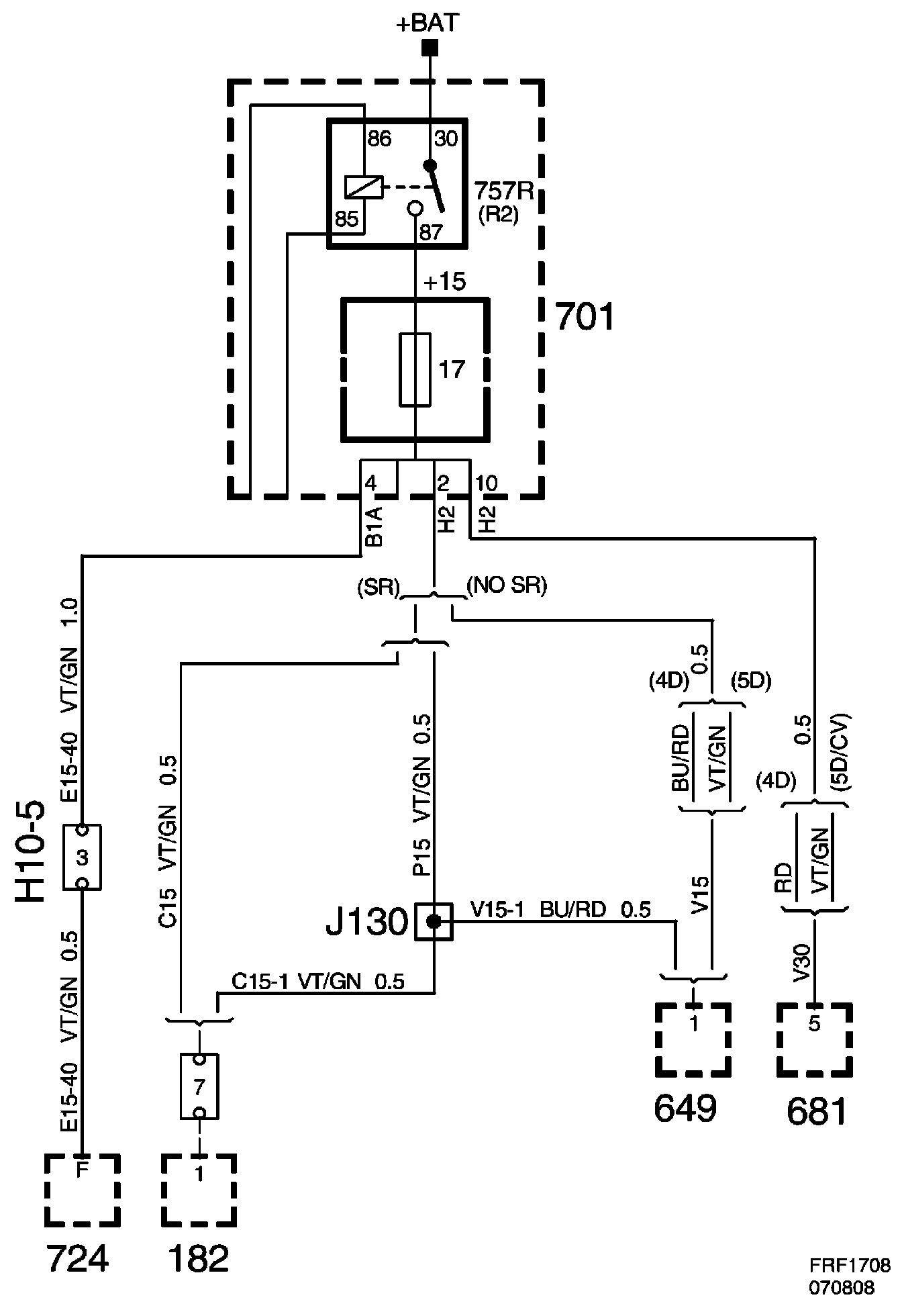

Fuse 17, Rear Electrical Centre 701:

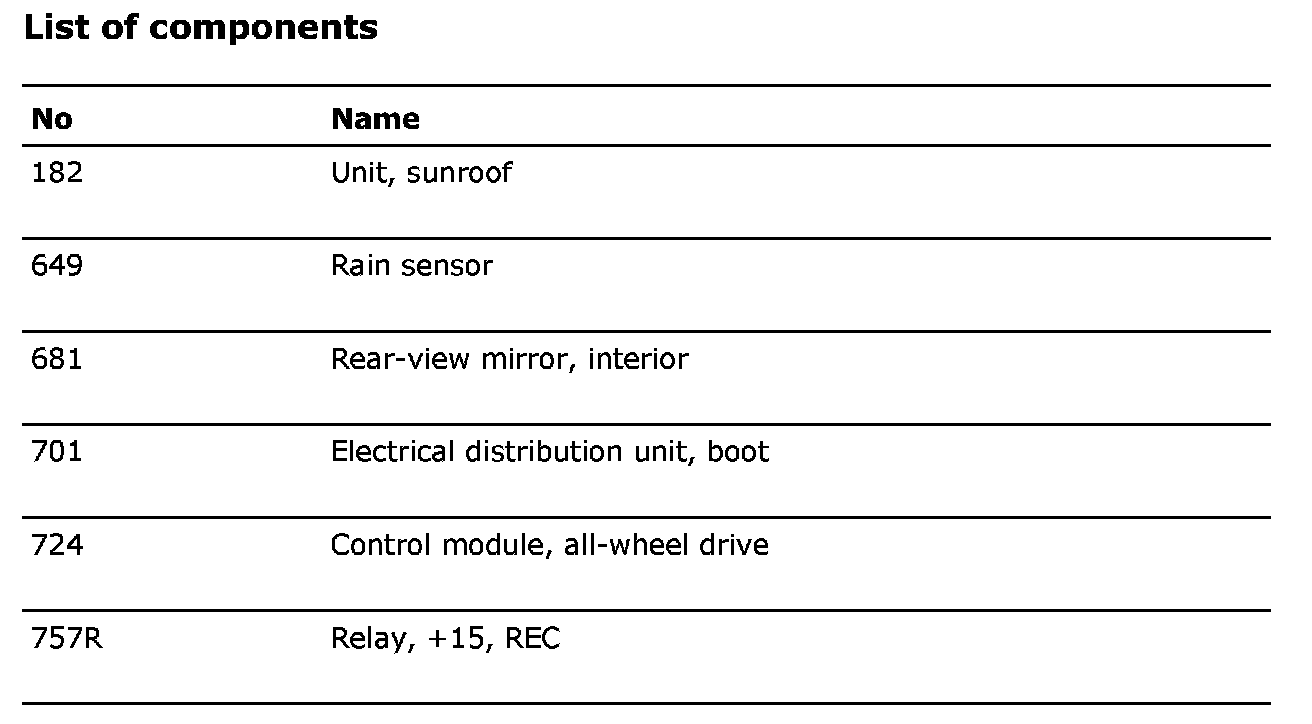

List Of Components:
