Crimp Connection J299, Engine Harness ME9



Location: Approx. 40 mm from branching of cylinder 2 ignition coil toward cylinder 4

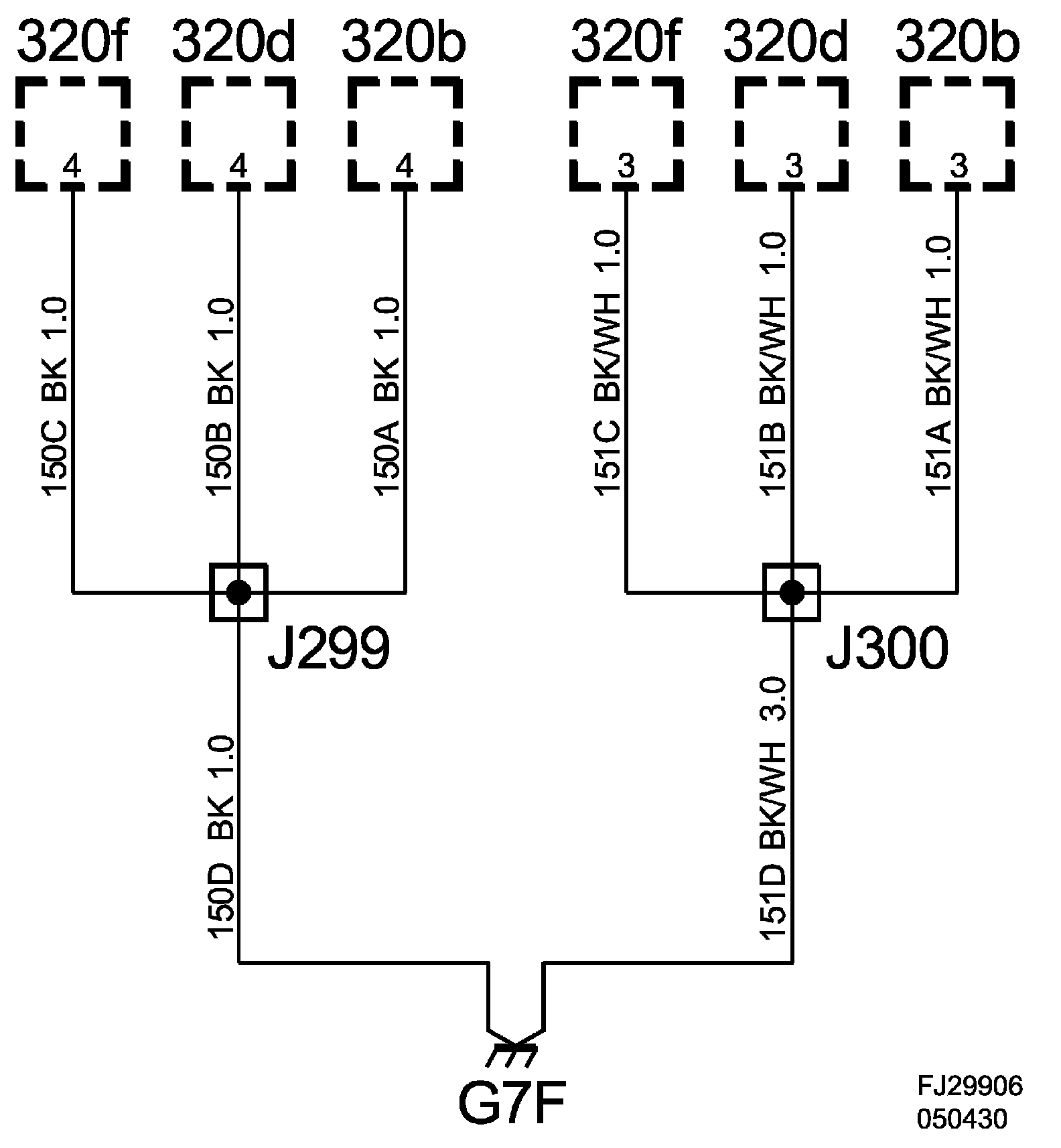

Crimp Connection J299, Engine Harness ME9:

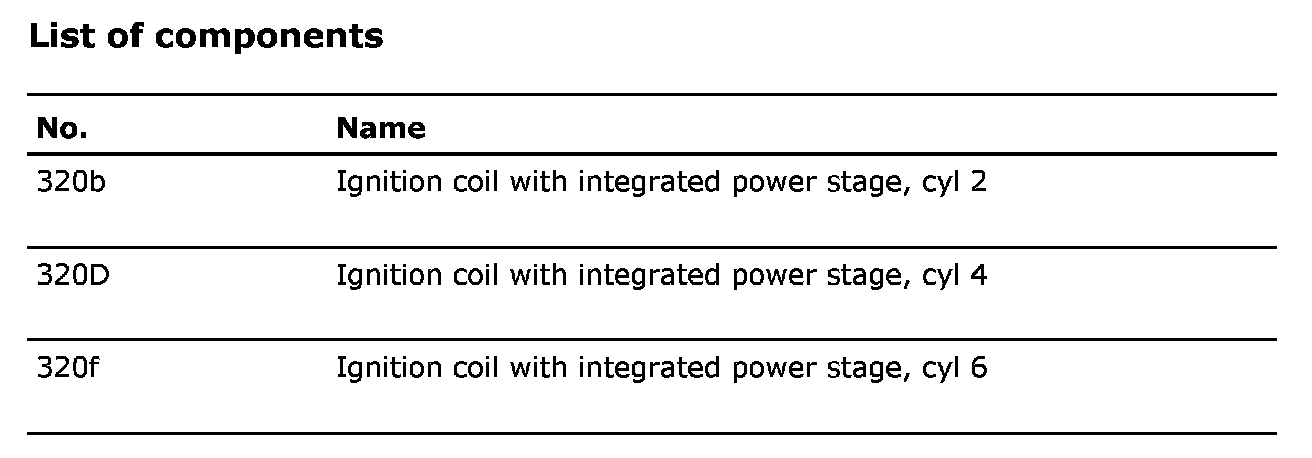

List Of Components:
