Rear Audio Amplifier, Bose (R) Sound System

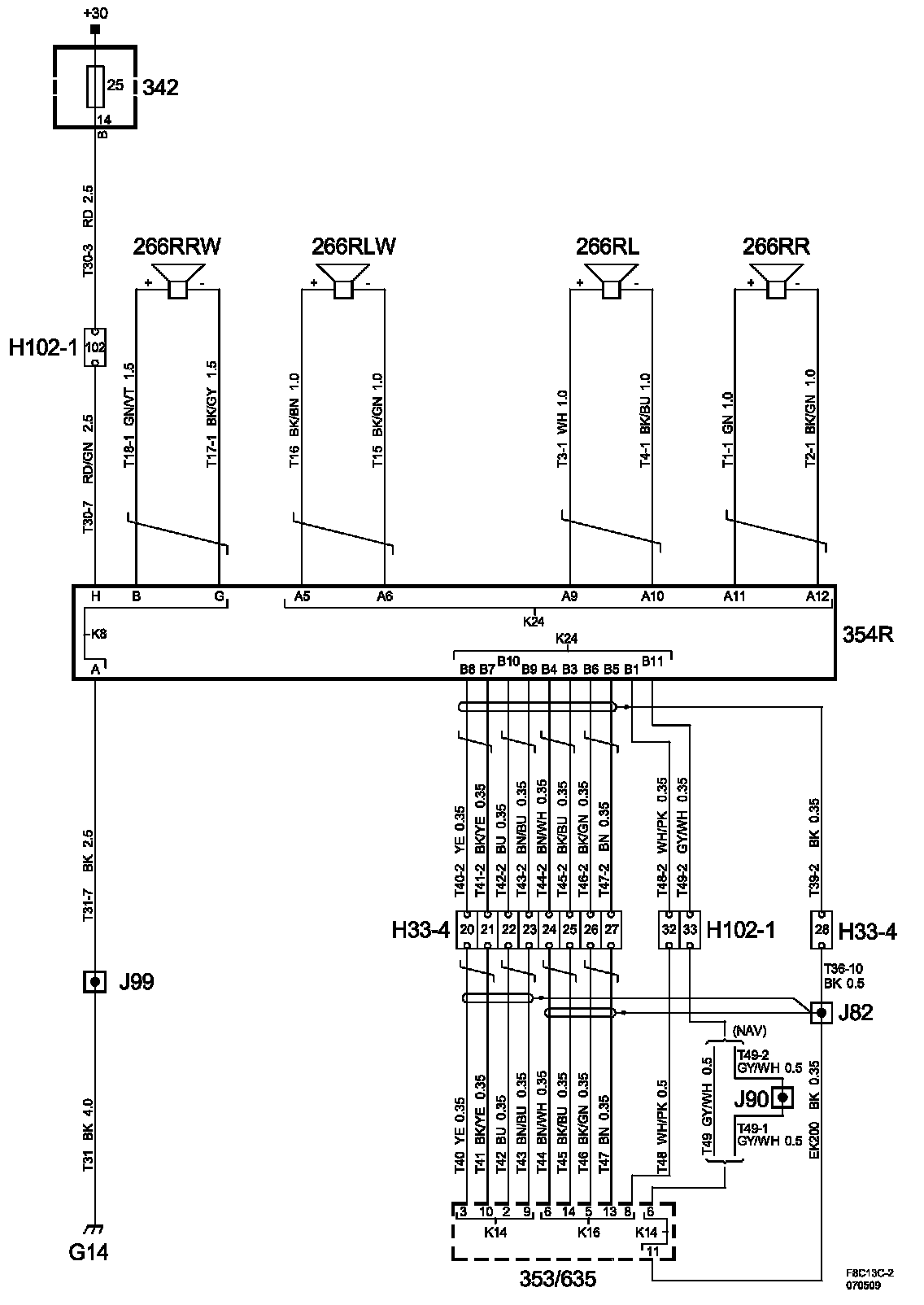

Rear Audio Amplifier, Bose (R) Sound System:

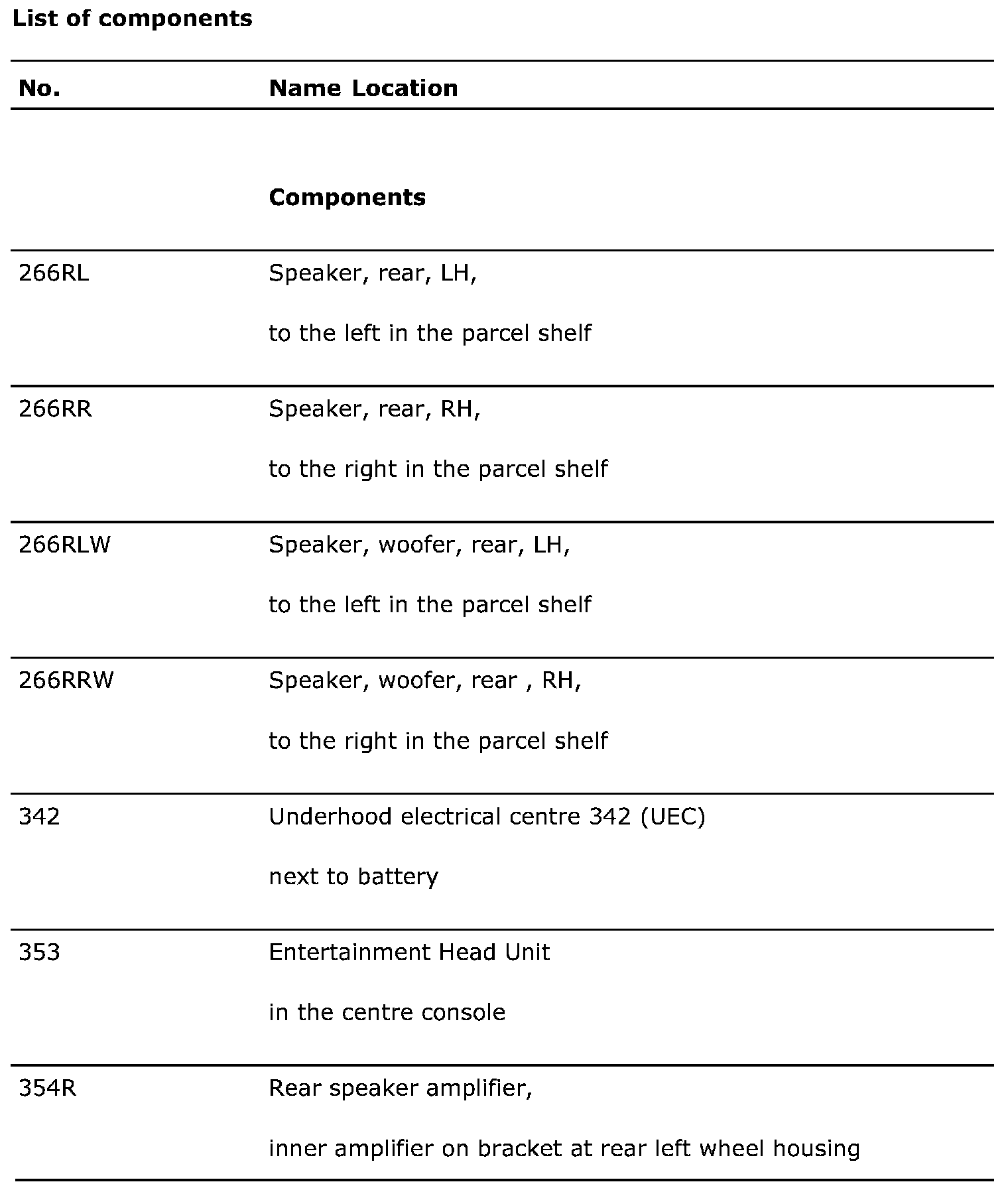

List Of Components (Part 1):
List Of Components (Part 2):
