Radiator Cooling Fan Motor Relay: Description and Operation

Relay unit, radiator fans (706a), B284

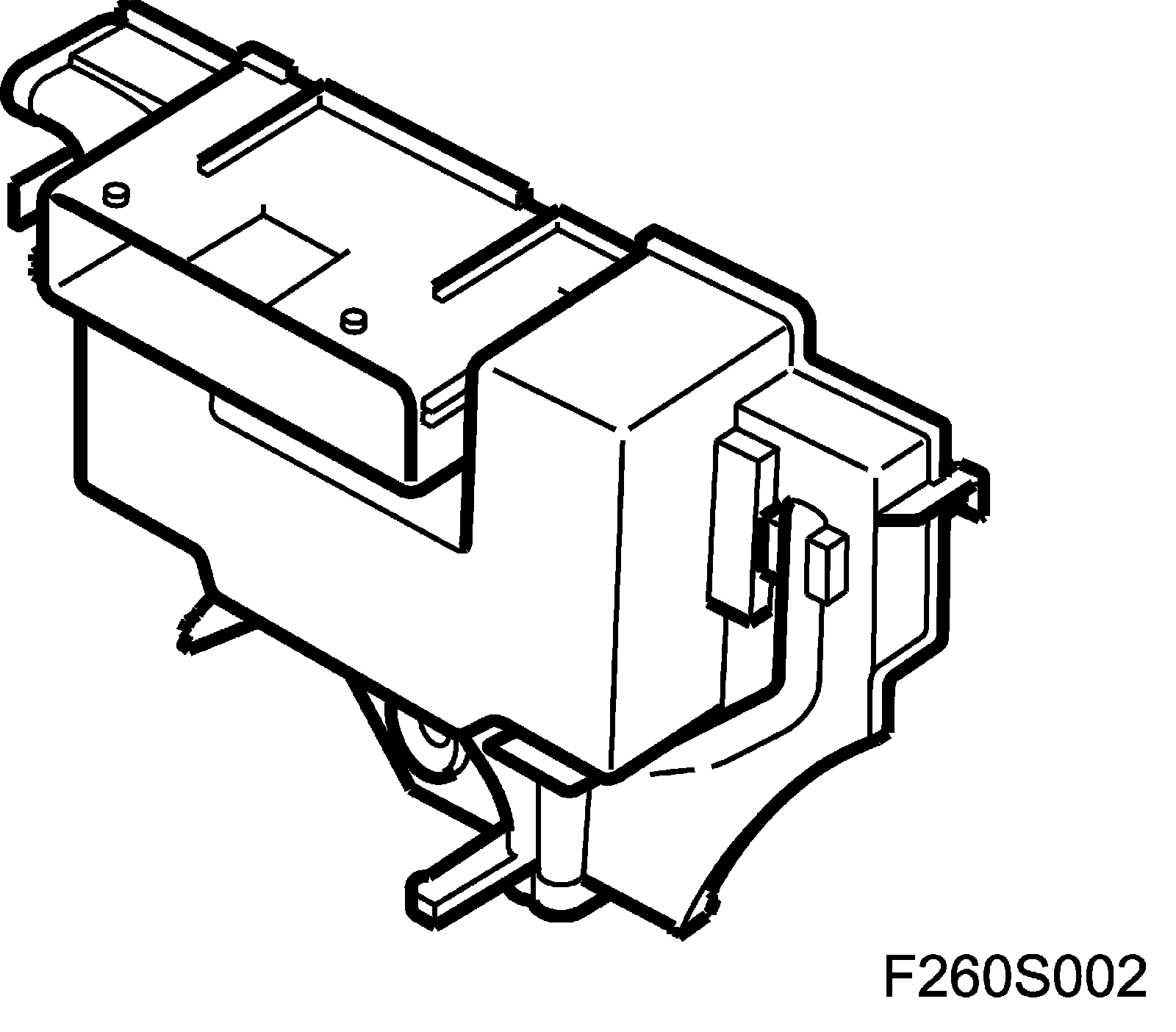

Location
Relay unit, radiator fans (706)

Main task
To control the radiator fans.

Type





Relay box containing relays and resistors.

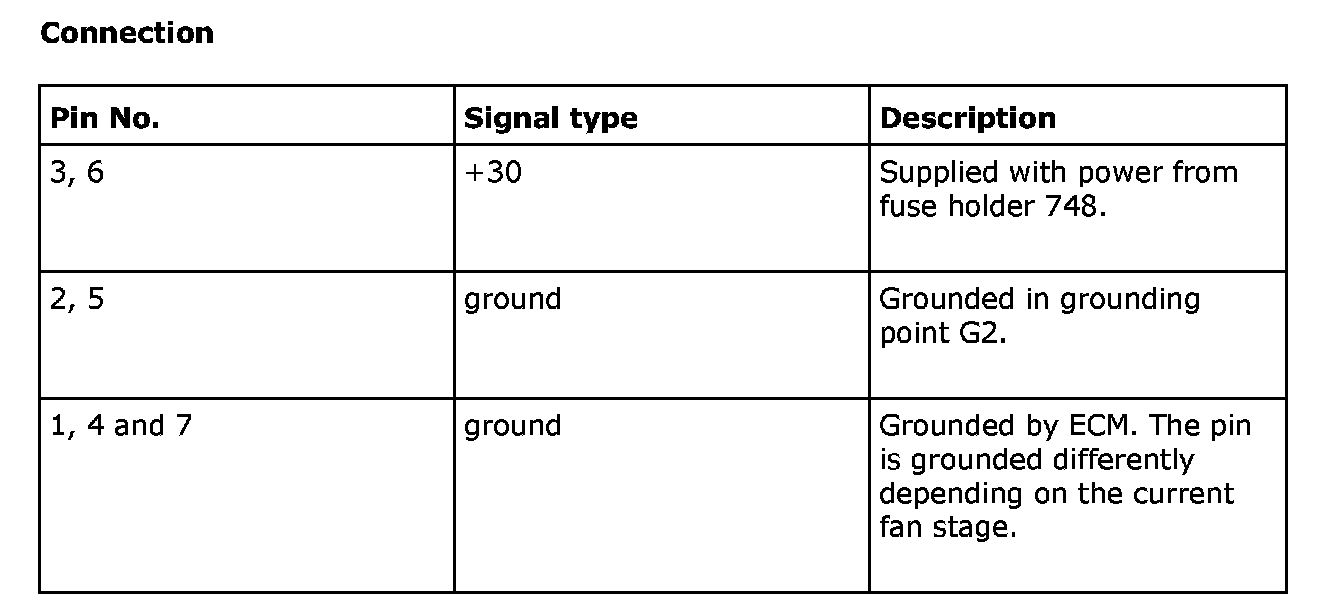

Connection

Connection:

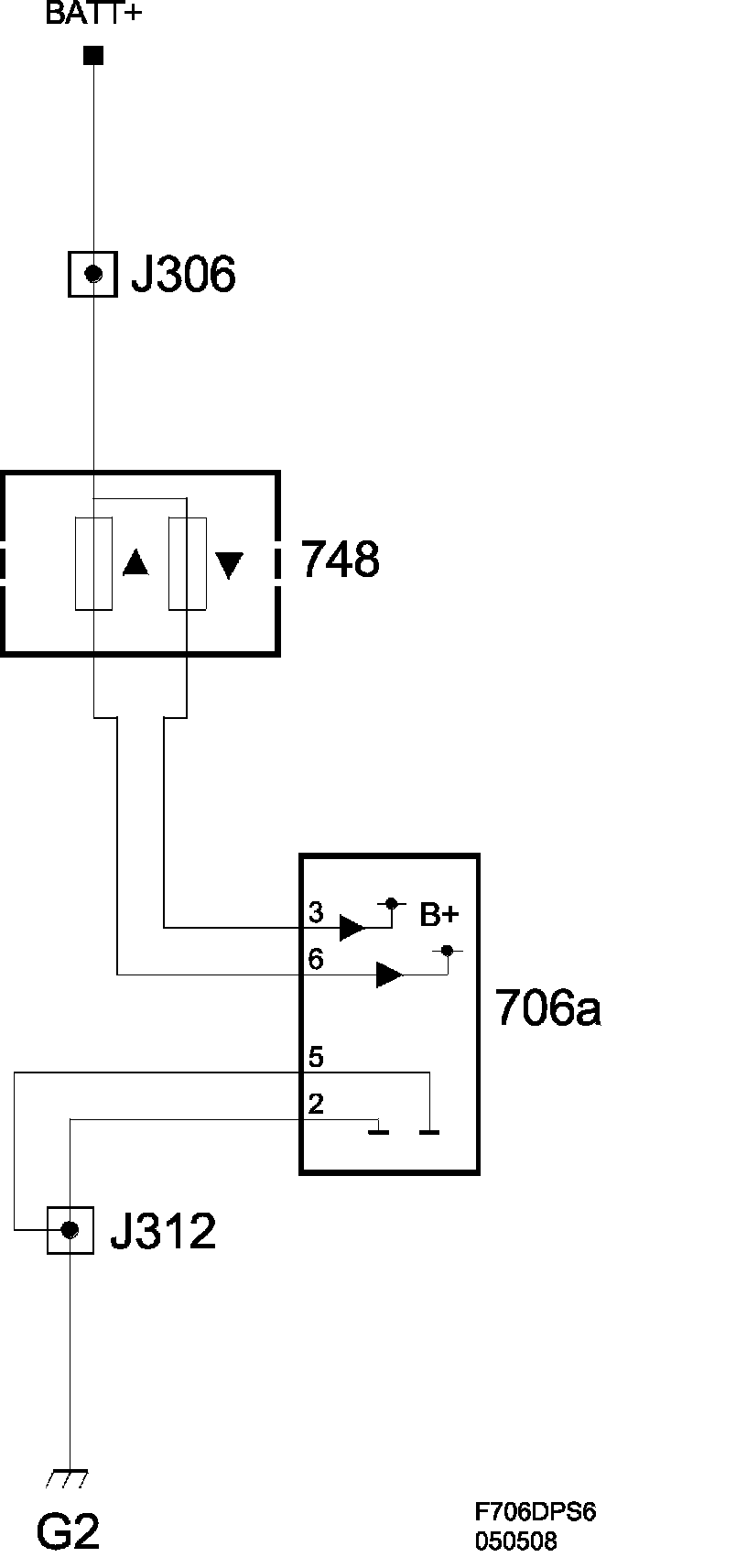

power supply

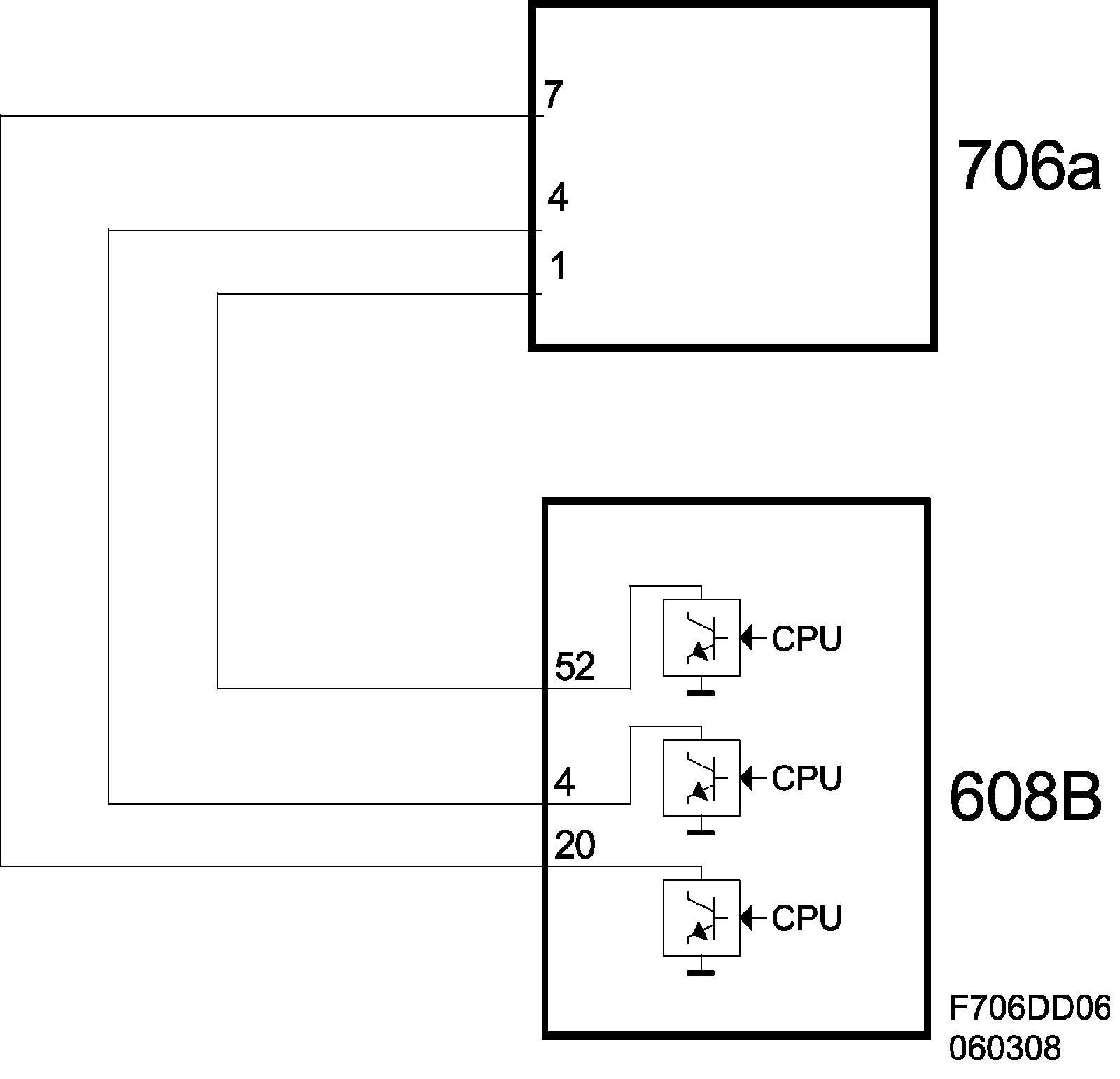

control
