Rocker Arm, Front Cylinder Head Camshaft, B284 (New Version)

Rocker arm, front cylinder head camshaft, B284 (new version)

To remove
1. Remove Camshafts in situ, front cylinder head, B284 (new version).

Important
Store all removed valve parts in the valve stand 83 93 787.

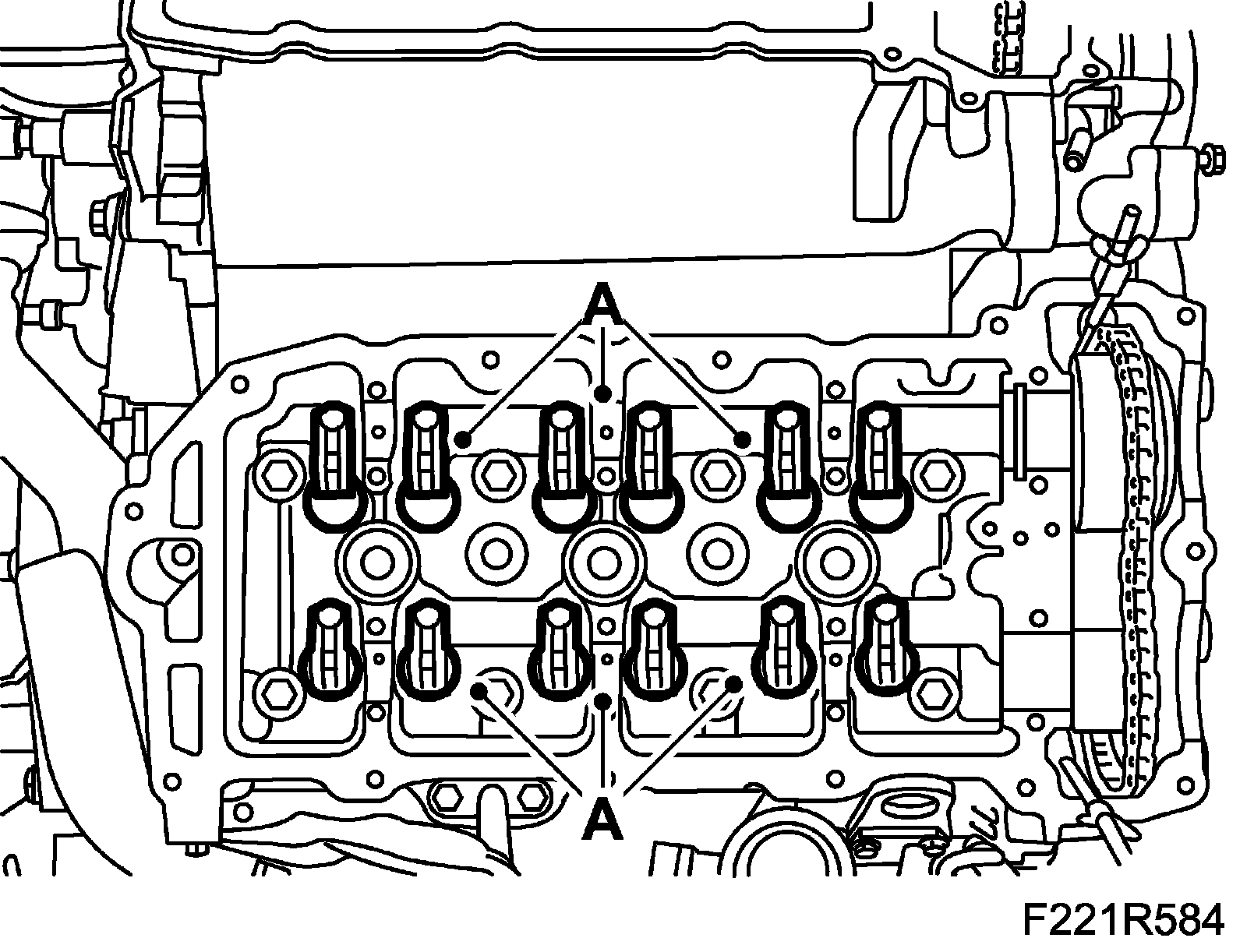

2. Remove the roller rockers (A).





Important
Cover all return oil ducts in the cylinder head so that impurities cannot fall into the engine.

To fit
1. Fit the roller rockers (A).
2. Fit Camshafts in situ, front cylinder head, B284 (new version)
