Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil filler pipe

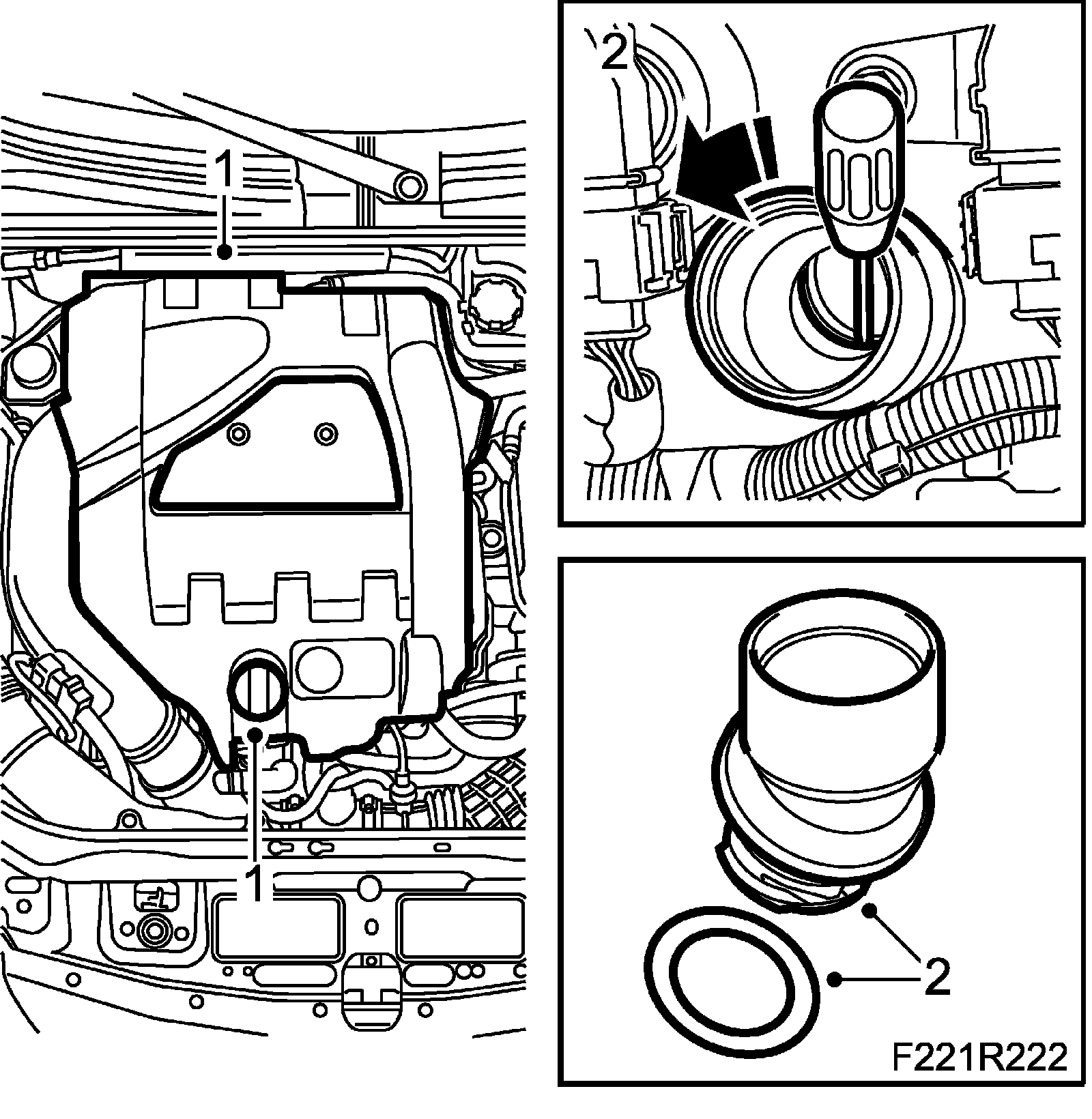

To remove
1. Remove the upper engine cover.





2. Lift the catch with small, bent screwdriver, turn clockwise and raise the filler pipe.

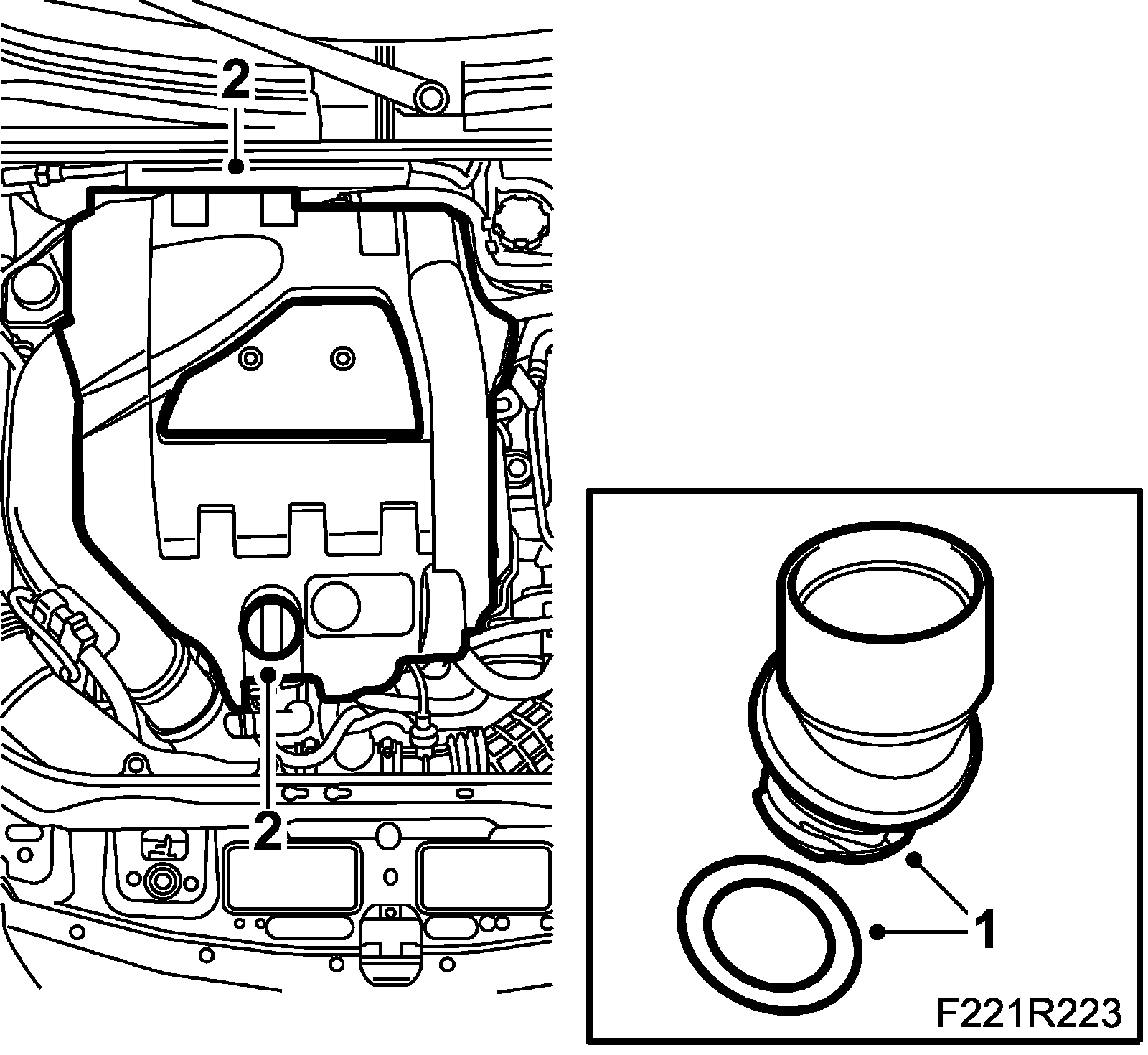

To fit
1. Fit the oil filler pipe with O-ring.





2. Fit the upper engine cover.
