Front Crankshaft Seal: Service and Repair

Front crankshaft seal

To remove
1. Remove Crankshaft pulley.

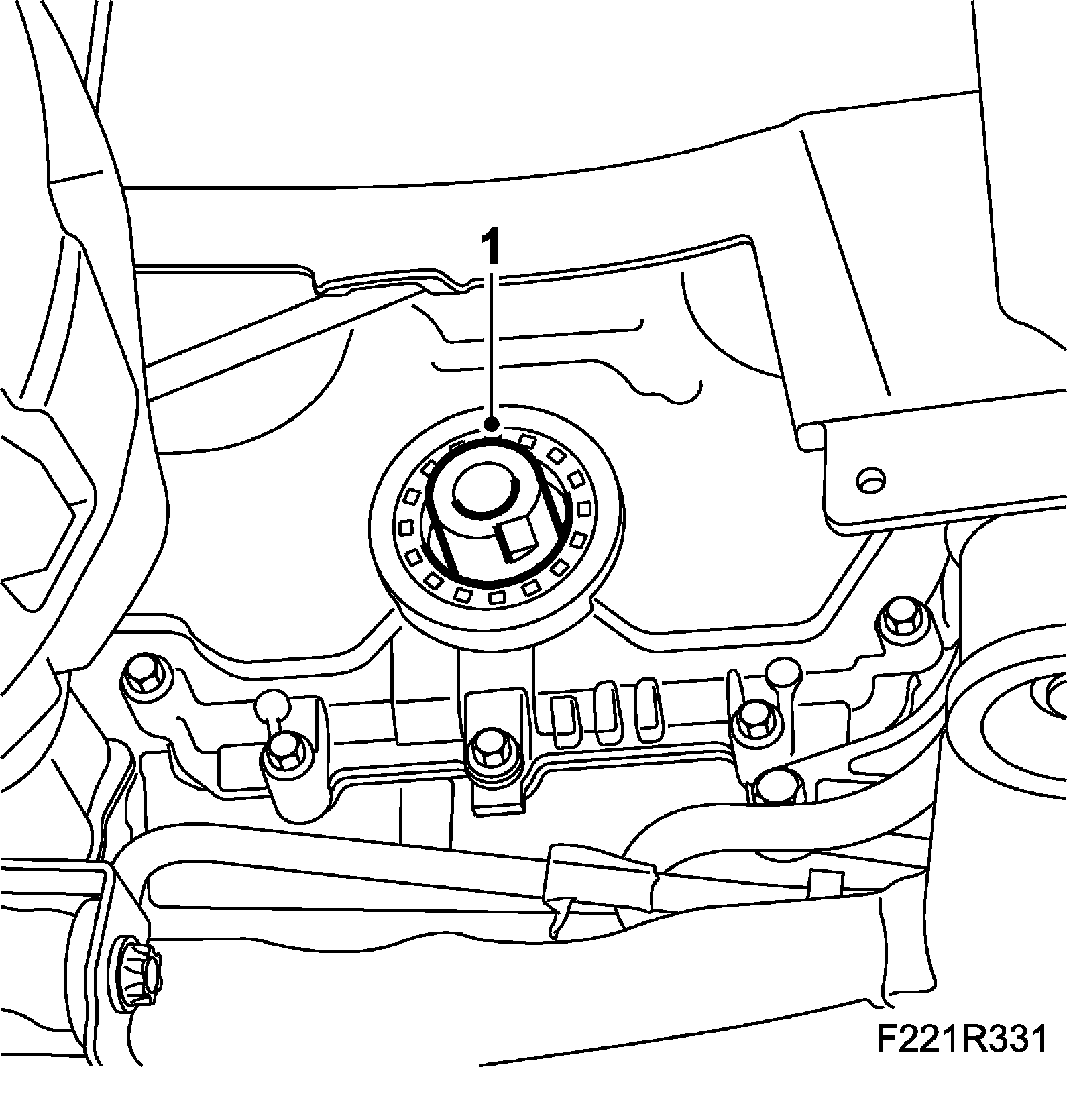

2. Remove the seal using 87 91 360 Extractor

To fit
1. Clean the sealing surfaces.
2. Lubricate the new seal with non-acidic Vaseline.

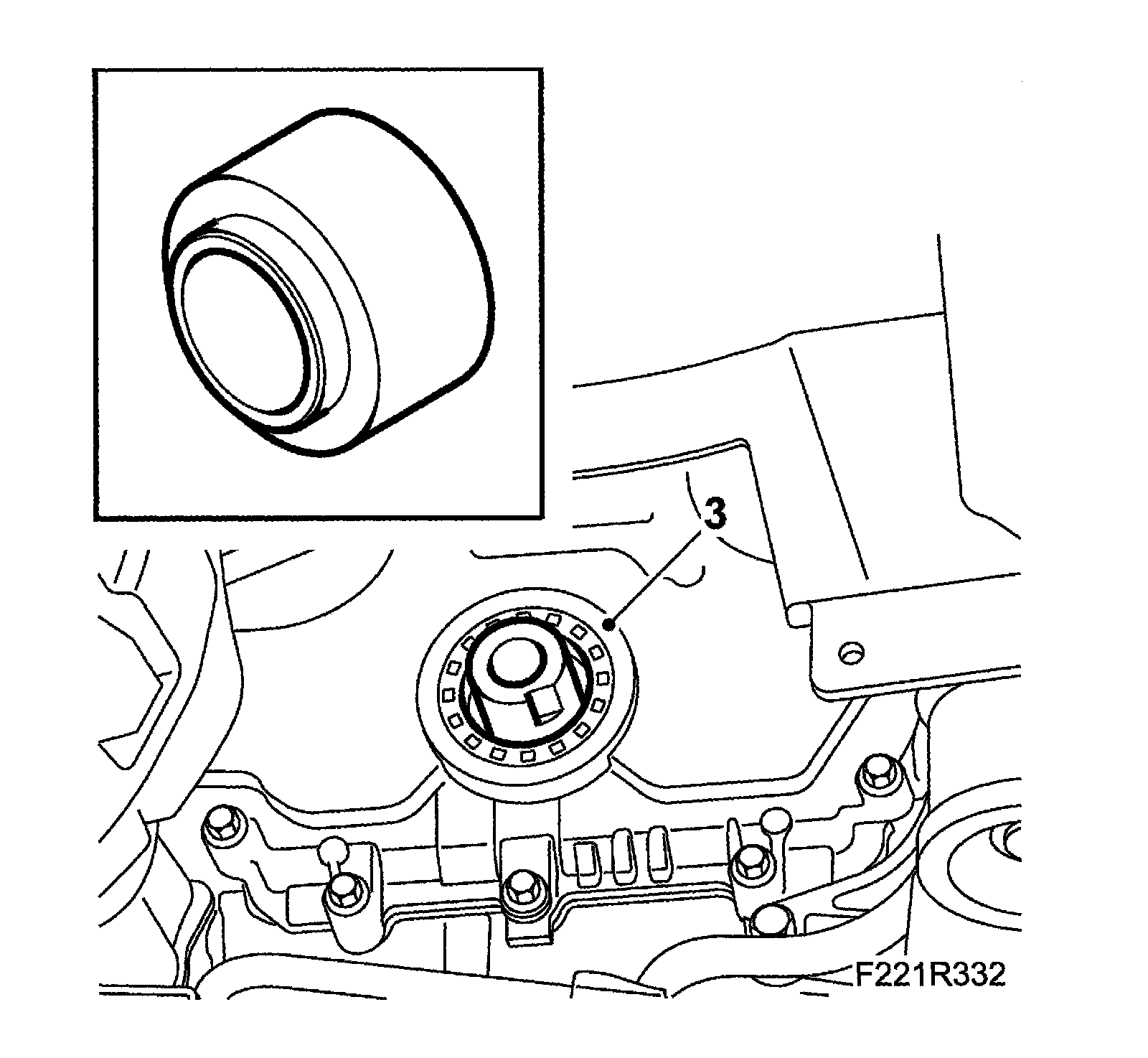

3. Fit the seal using EN-47635 Fitting tool and a plastic mallet.





4. Fit Crankshaft pulley.
