Locations
>>
Ground Locations
>>
Grounding Point G7R
Grounding Point G7R

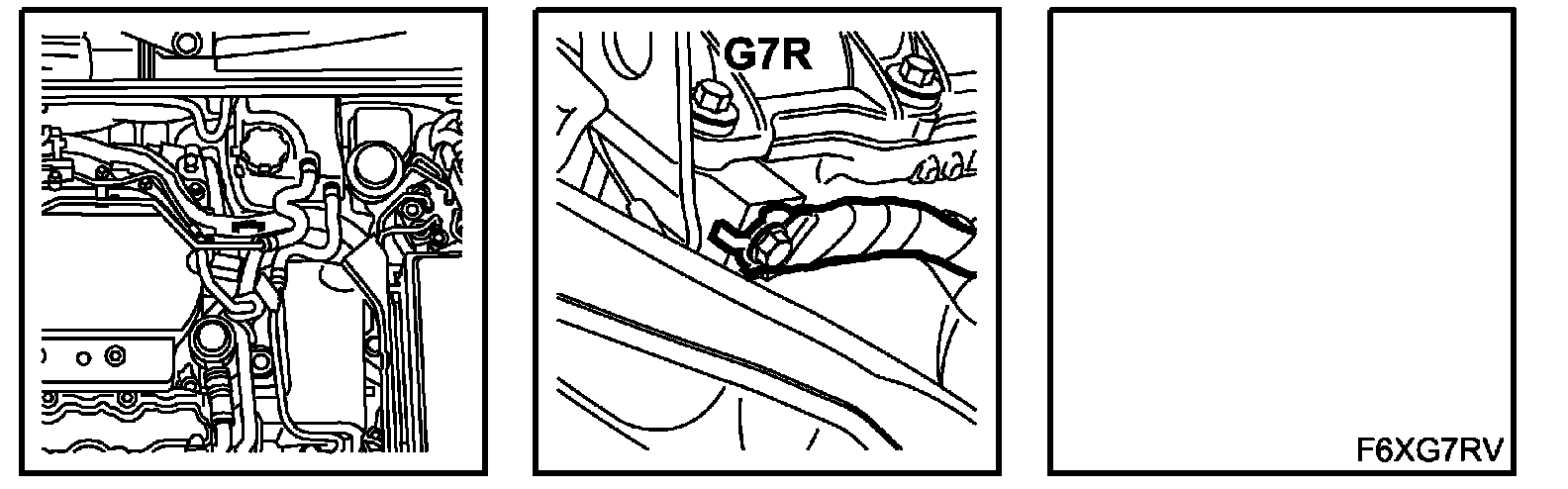

Location:
On the rear cylinder bank toward the gearbox side
Grounding Point G7R:

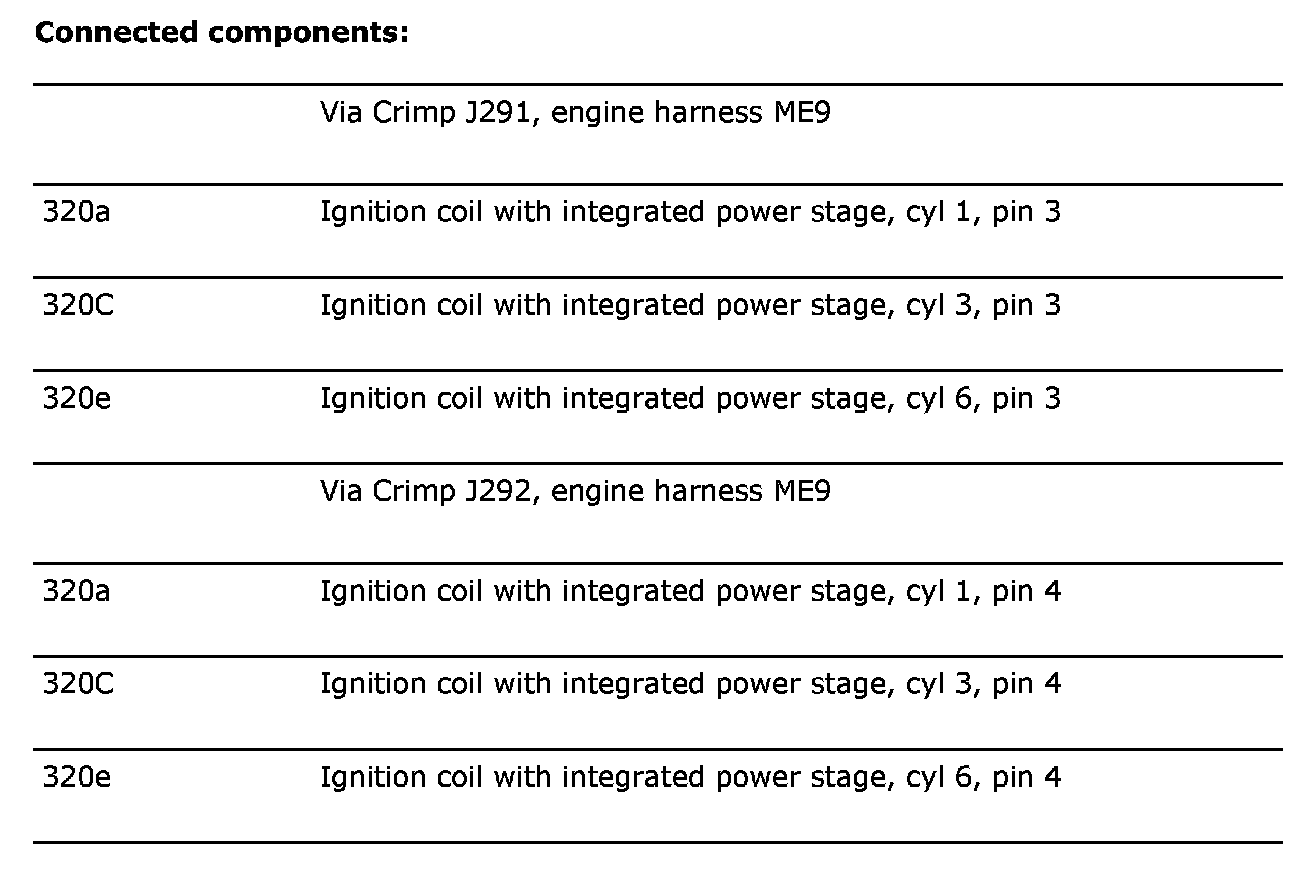

Connected Components:
