Crimp Connection J308, Adapter Harness ME9




Location: Approx. 60 mm from branching point battery towards engine control module

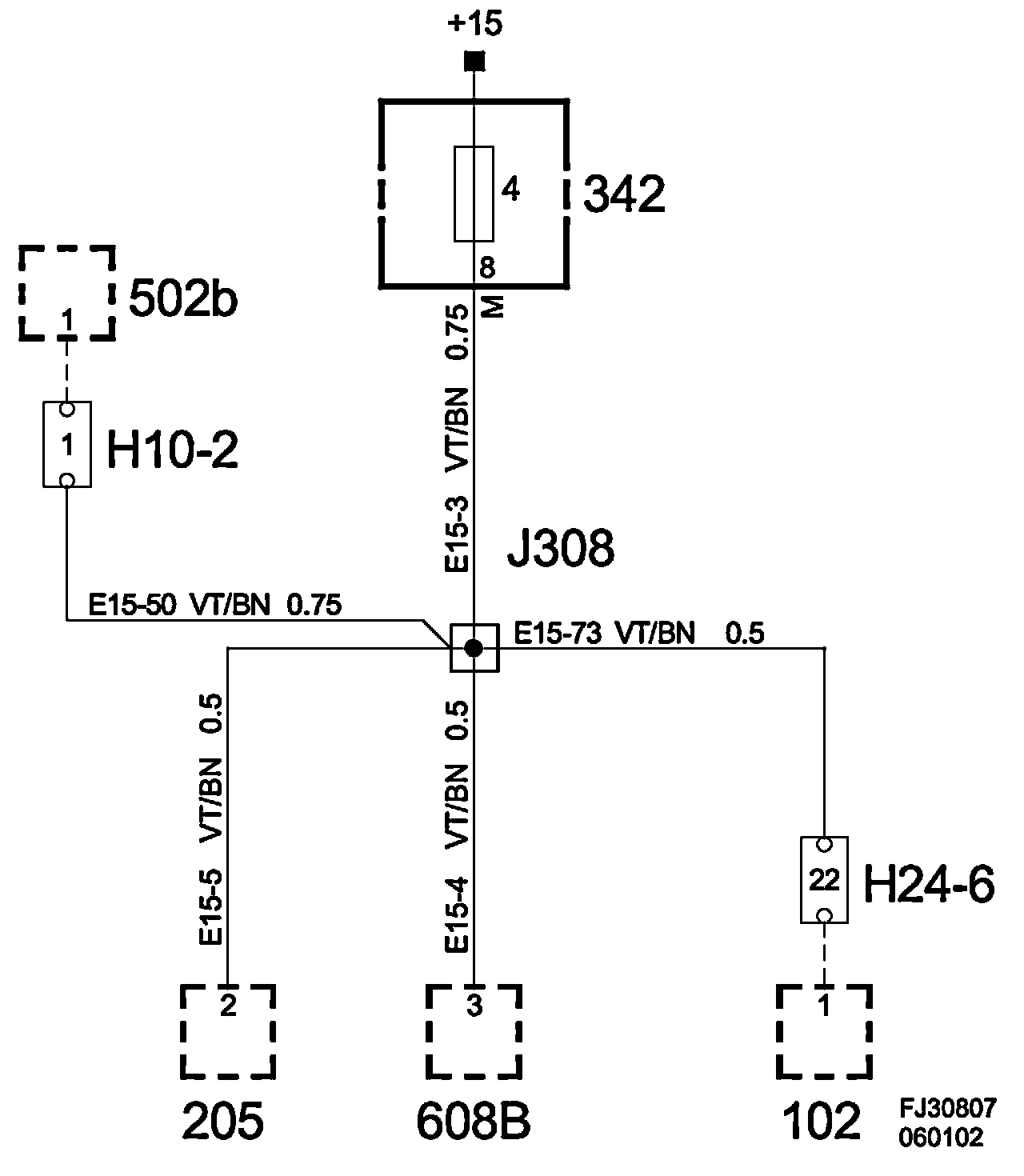

Crimp Connection J308, Adapter Harness ME9:

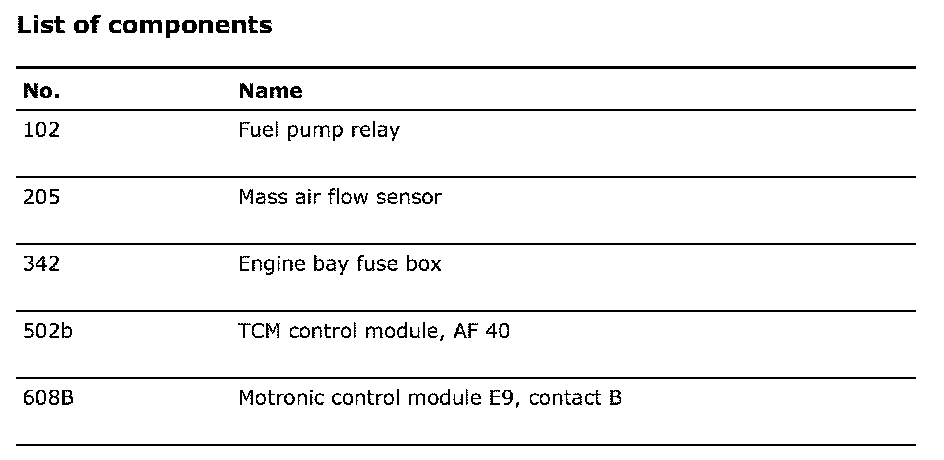

List Of Components:
