Crimp Connection J319, Injector Harness, ME9



Location: Approx. 30 mm from branching of cylinder 3 injector toward cylinder 1

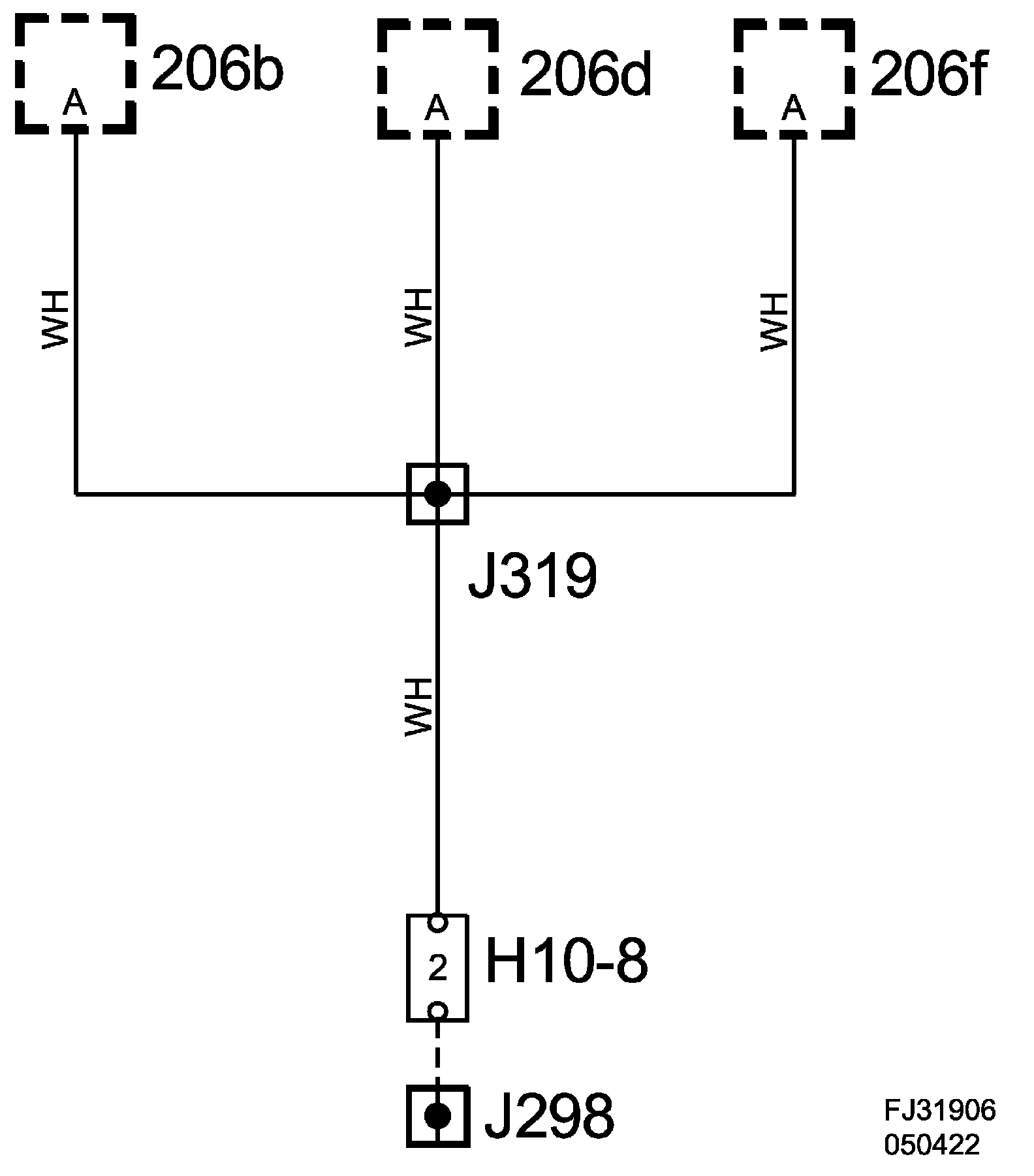

Crimp Connection J319, Injector Harness ME9:

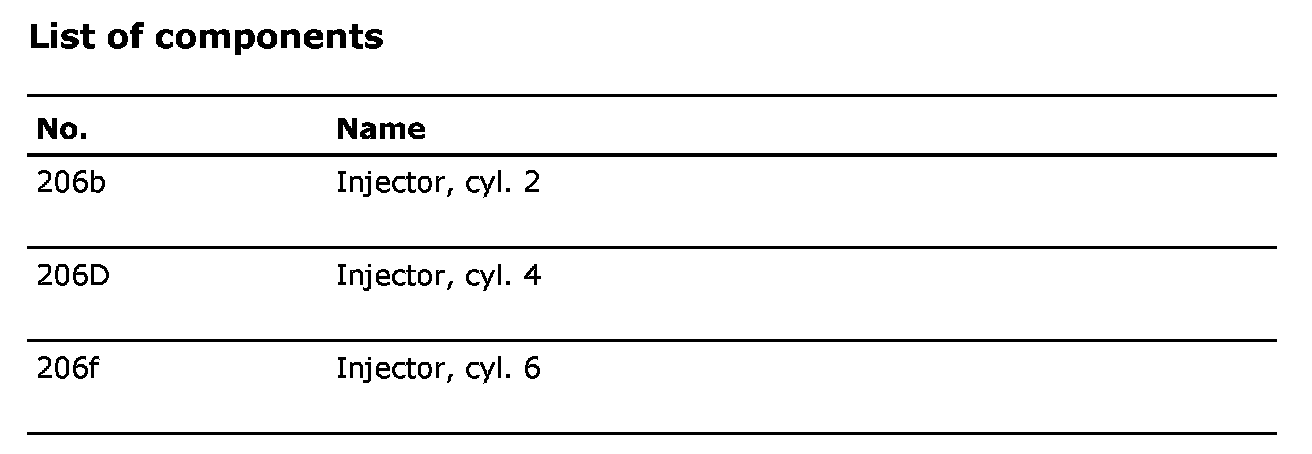

List Of Connections:
