Home >> Saab >> 2008 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Engine Bay Main Fuse Box 342 >> Fuse 15

Fuse 15

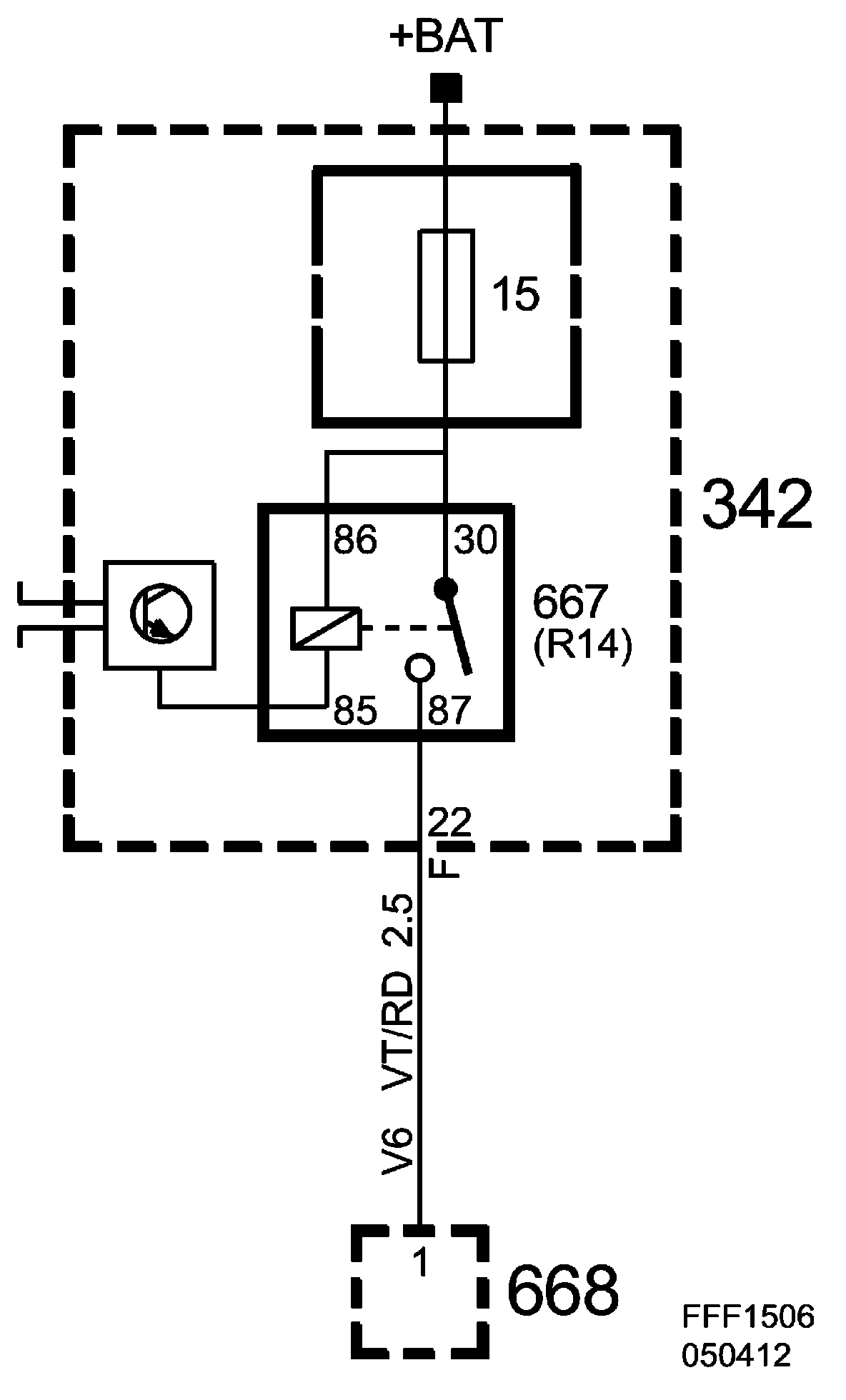

Fuse 15, Engine Bay Main Fuse Box 342:

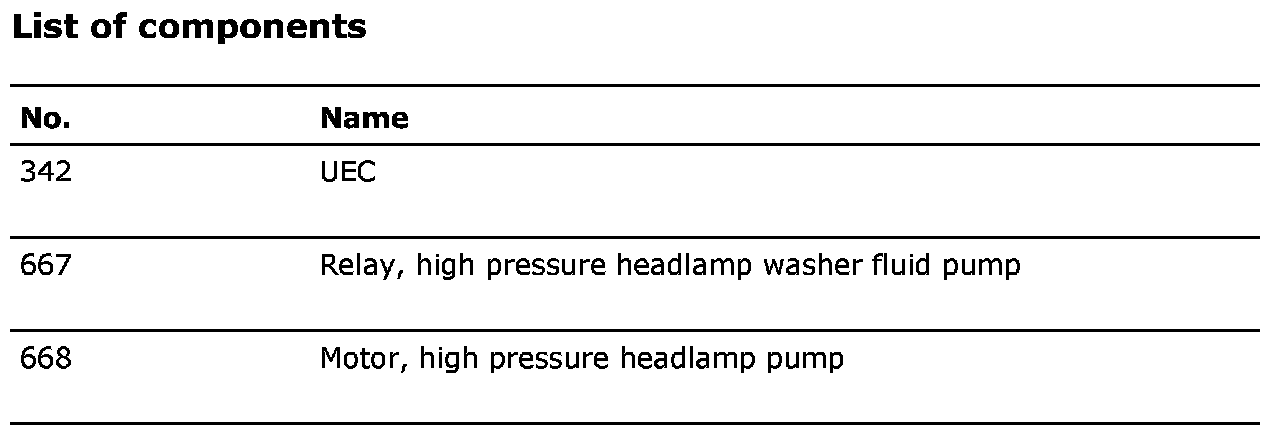

List Of Components:
