Home >> Saab >> 2008 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Turbocharger >> Air Bypass Valve >> Diagrams

Air Bypass Valve: Diagrams

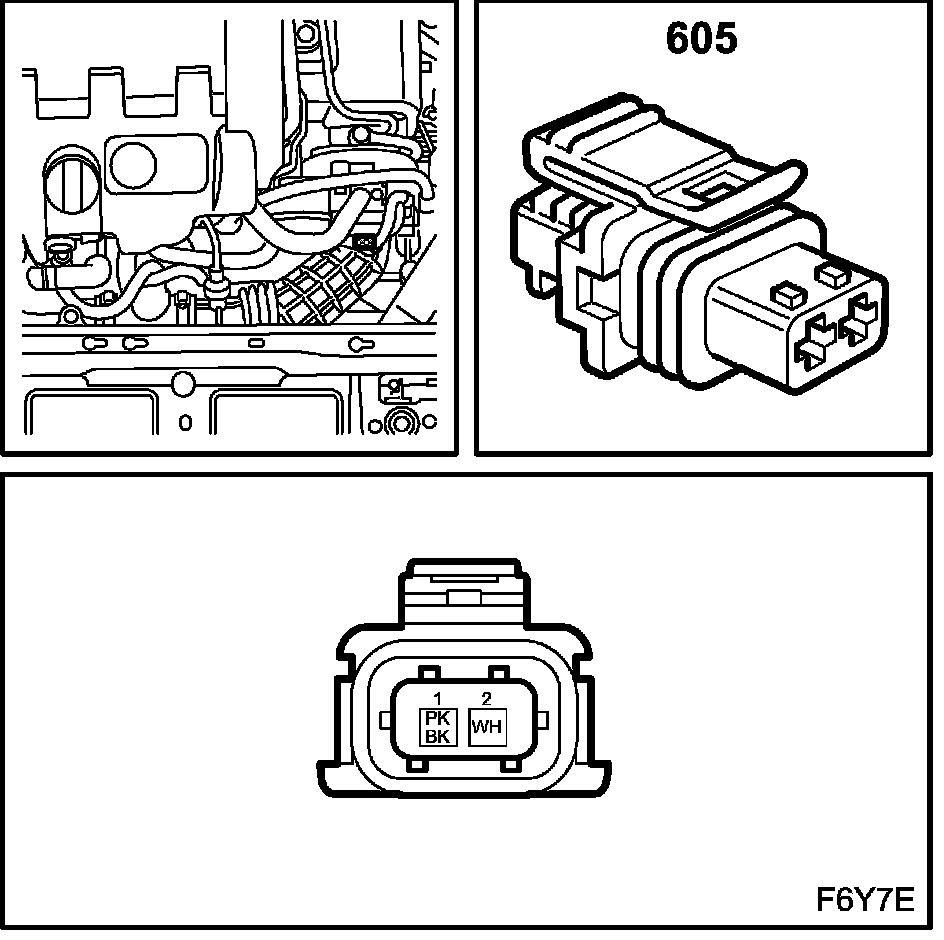

Solenoid Valve, Turbo Bypass (605)

Location: On turbocharger delivery pipe.
