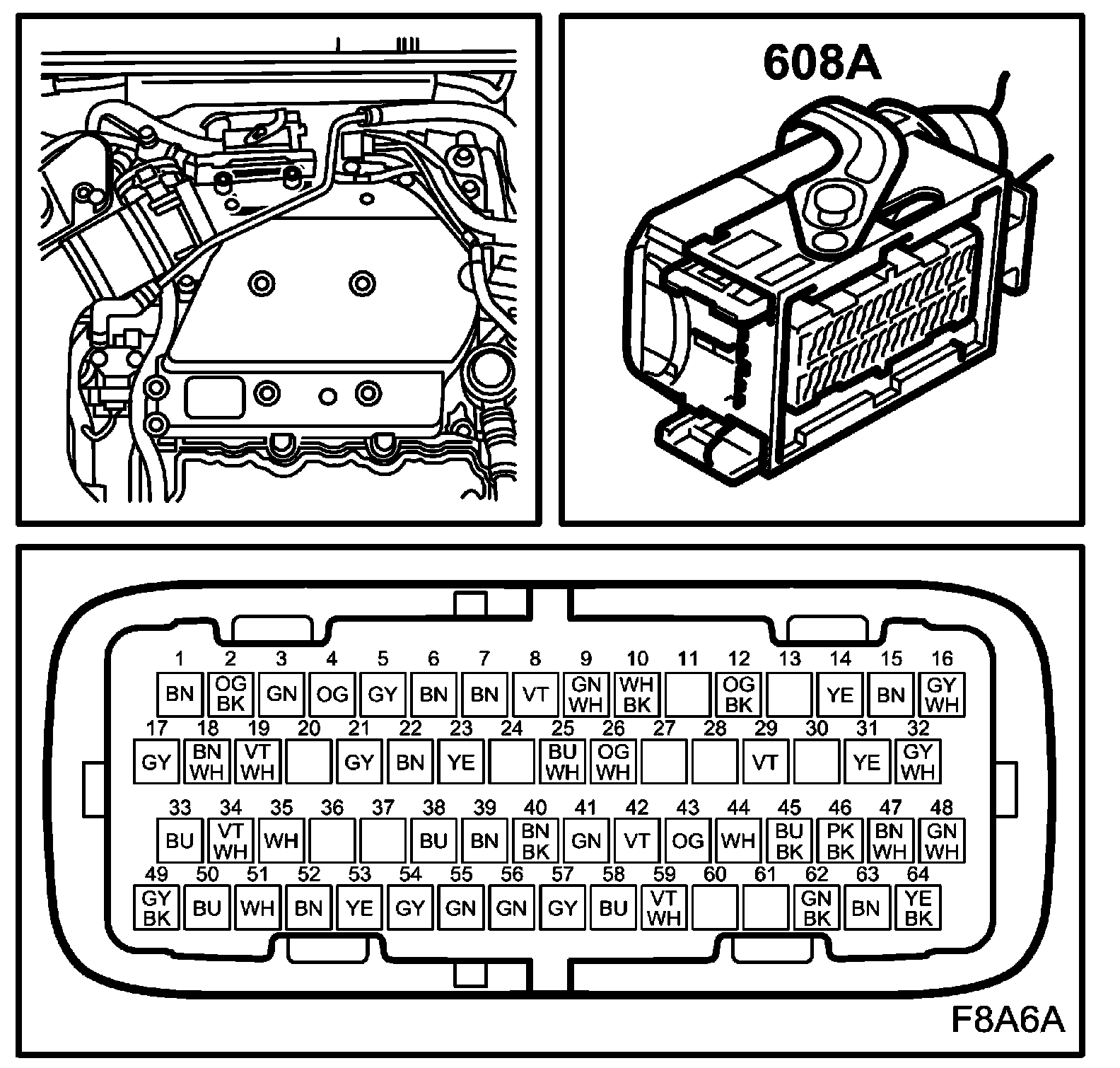

Control Module, Switch A, Engine (608A)
Control Module, Switch A, Engine (608A)
Location:
at the top of the rear cylinder bank, lower switch
Control Module, Switch A, Engine (608A):
