Steering Wheel Contact Unit (336)



Location: integrated in steering column unit

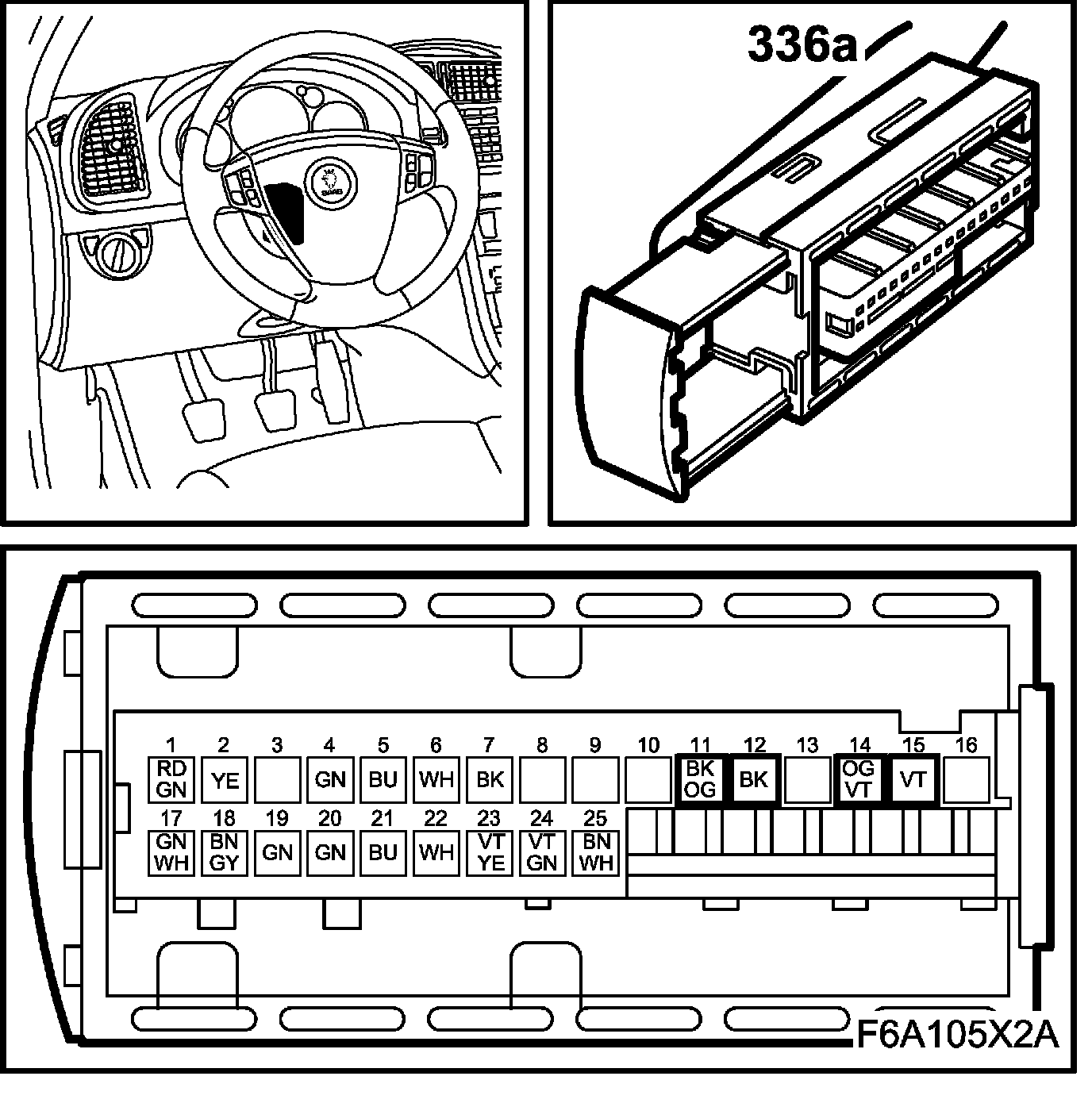

Connection from the steering wheel wiring harness

Steering Wheel Contact Unit (335):

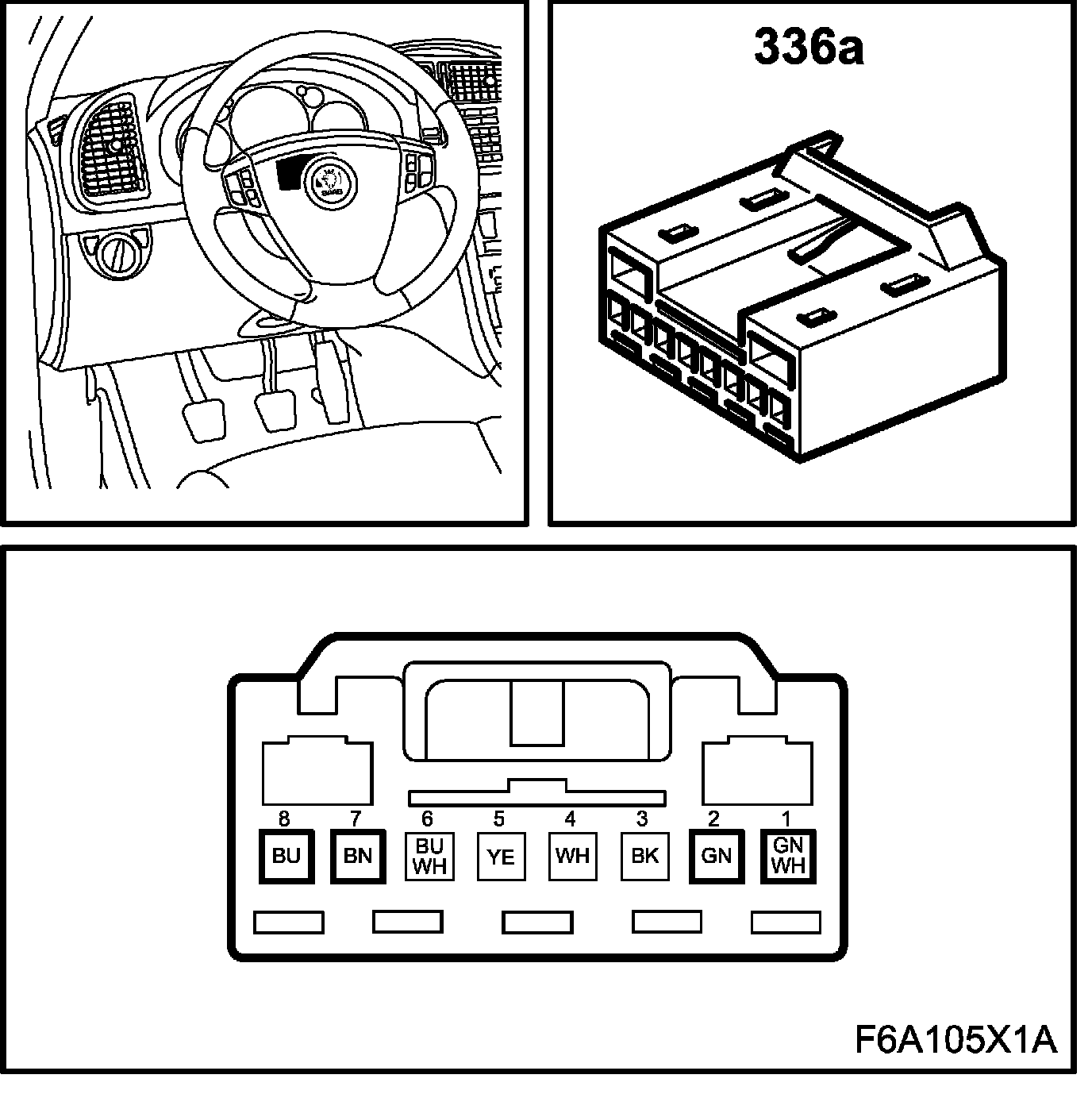

Connection from the instrument wiring harness

Steering Wheel Contact Unit (335):
