Clutch Switch: Description and Operation

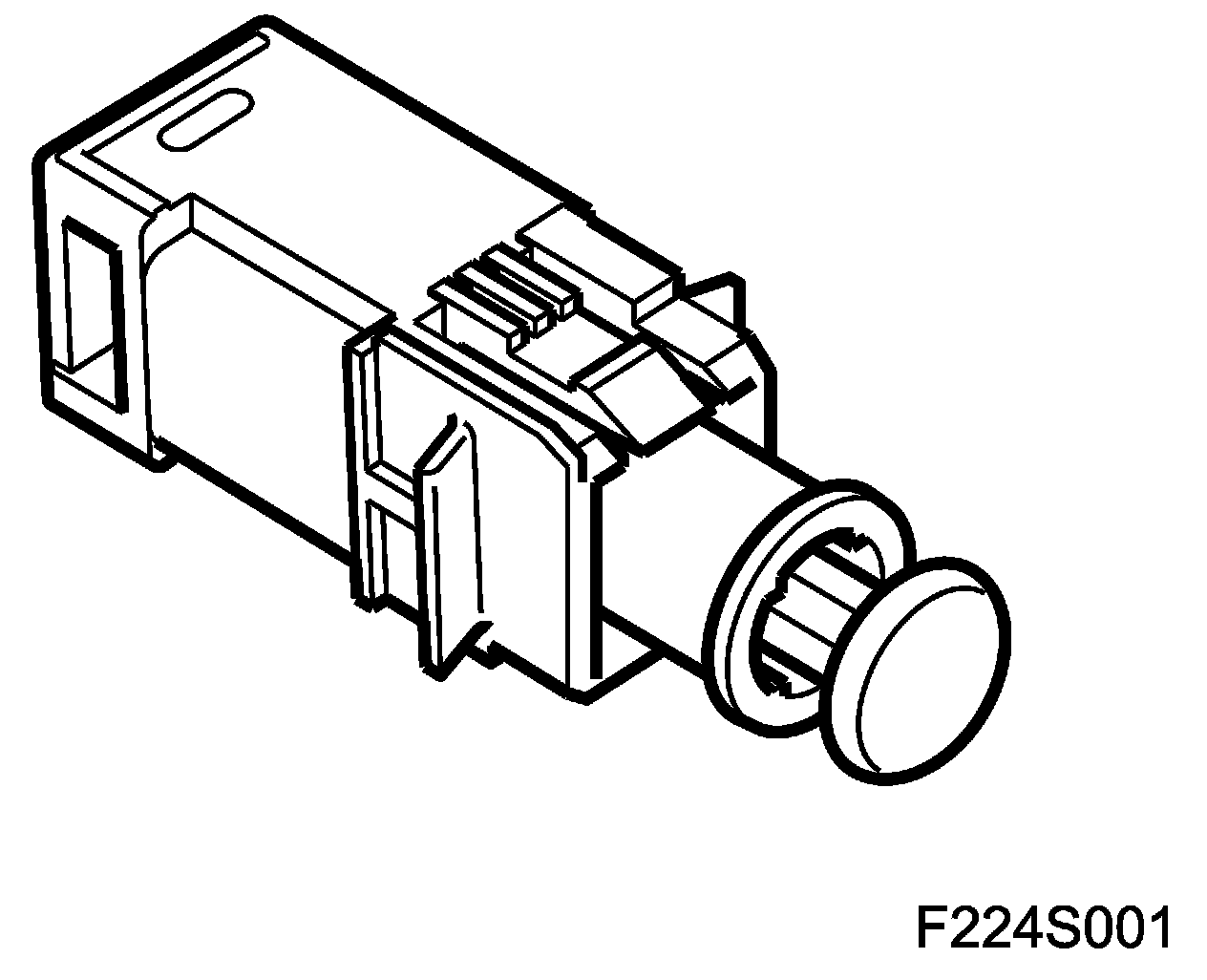

Clutch Switch, Cruise Control (133), ME9





Main task
Disengages cruise control when the clutch pedal is depressed.

The control module uses the clutch switch to calculate gear position with the help of an additional sensor.

Type
Breaking switch.

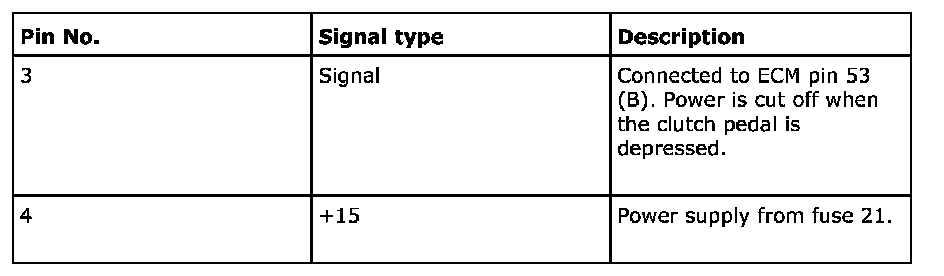

Connection

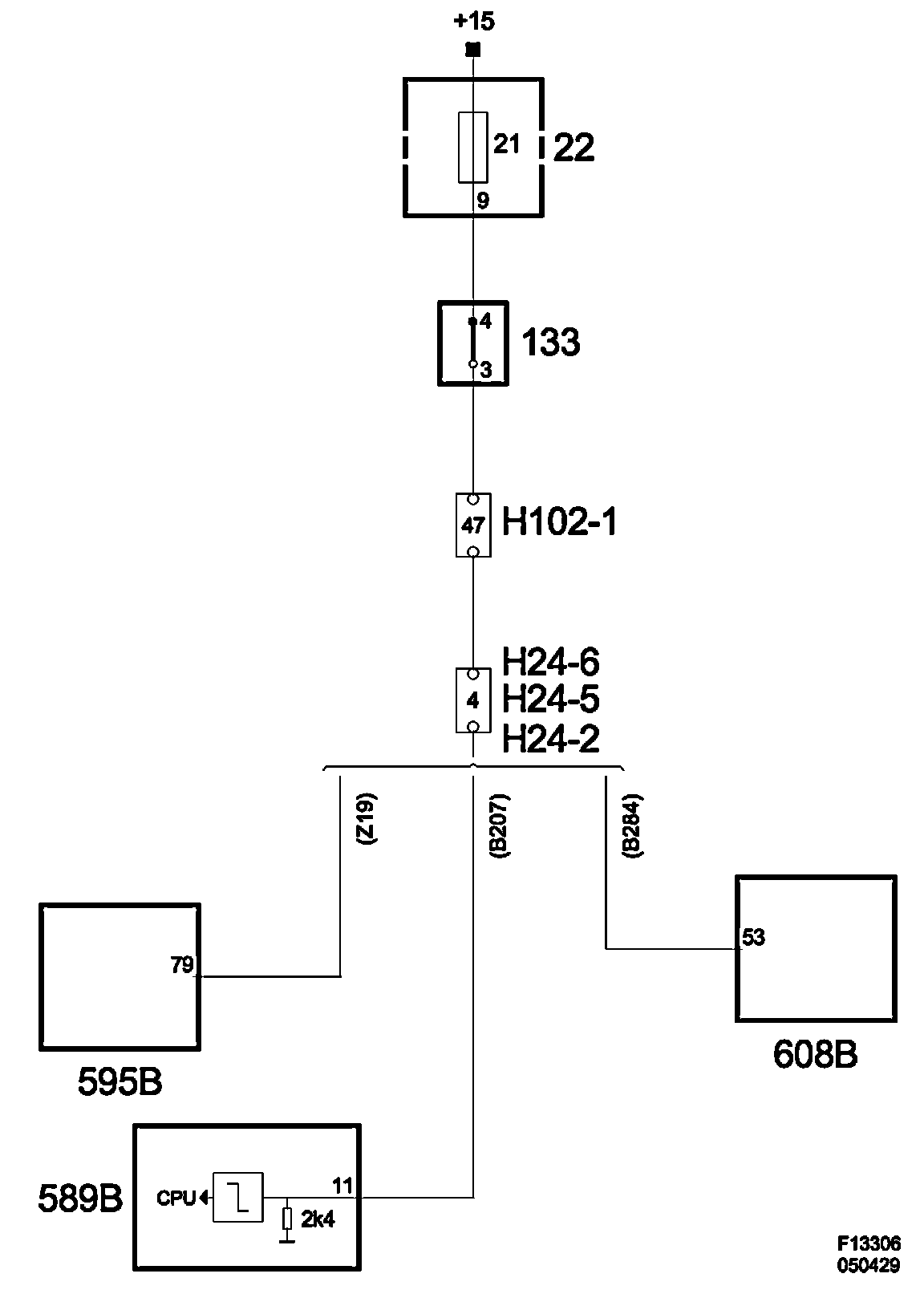

Diagram
