Brake Light Switch: Description and Operation

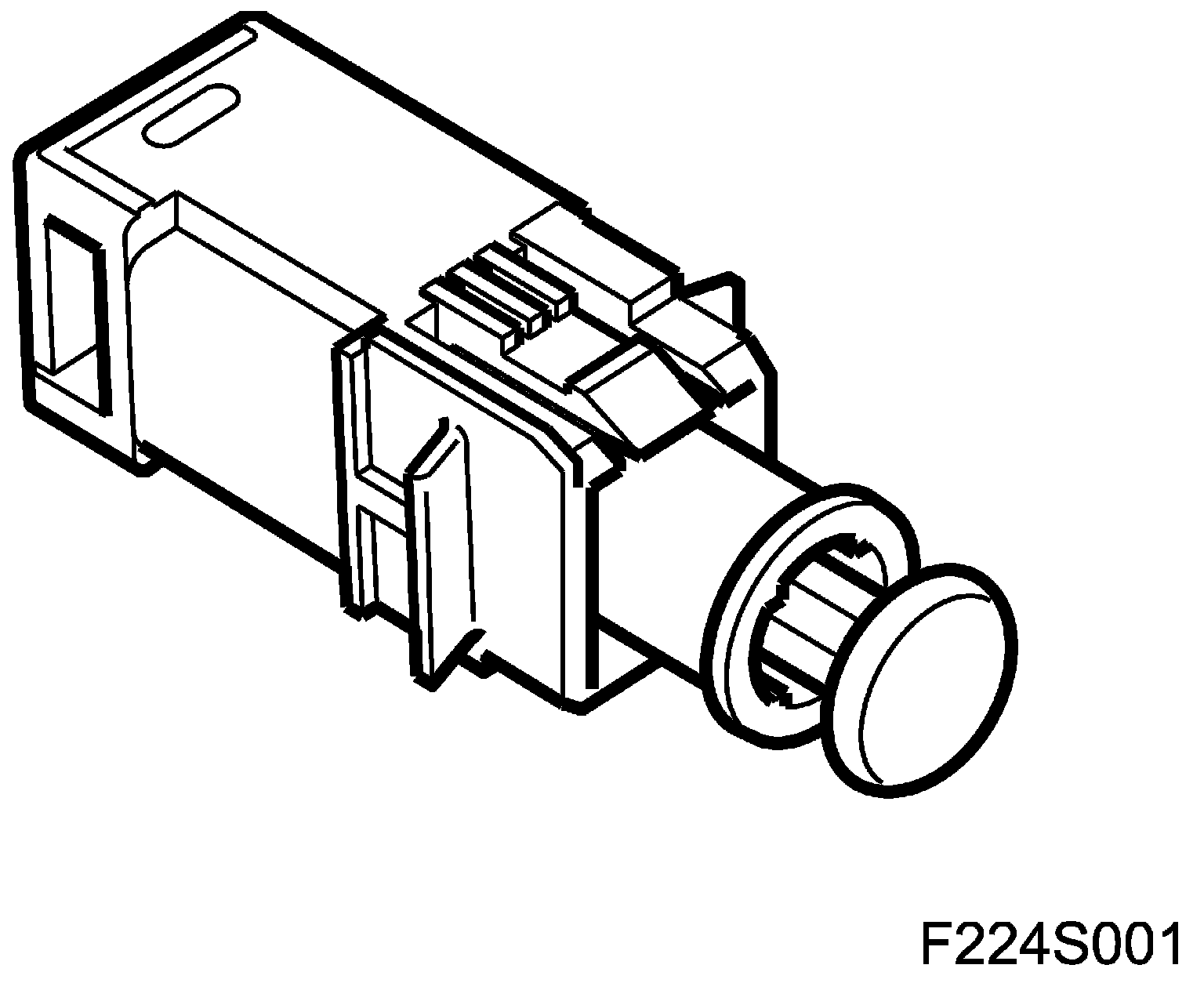

Brake Light Switch (29)





Main task
Brake light information is used by the control module to:
^ Disengage cruise control
^ Limit engine torque when braking
^ Allow for vehicle speed signal diagnosis.

Type
Closing switch.

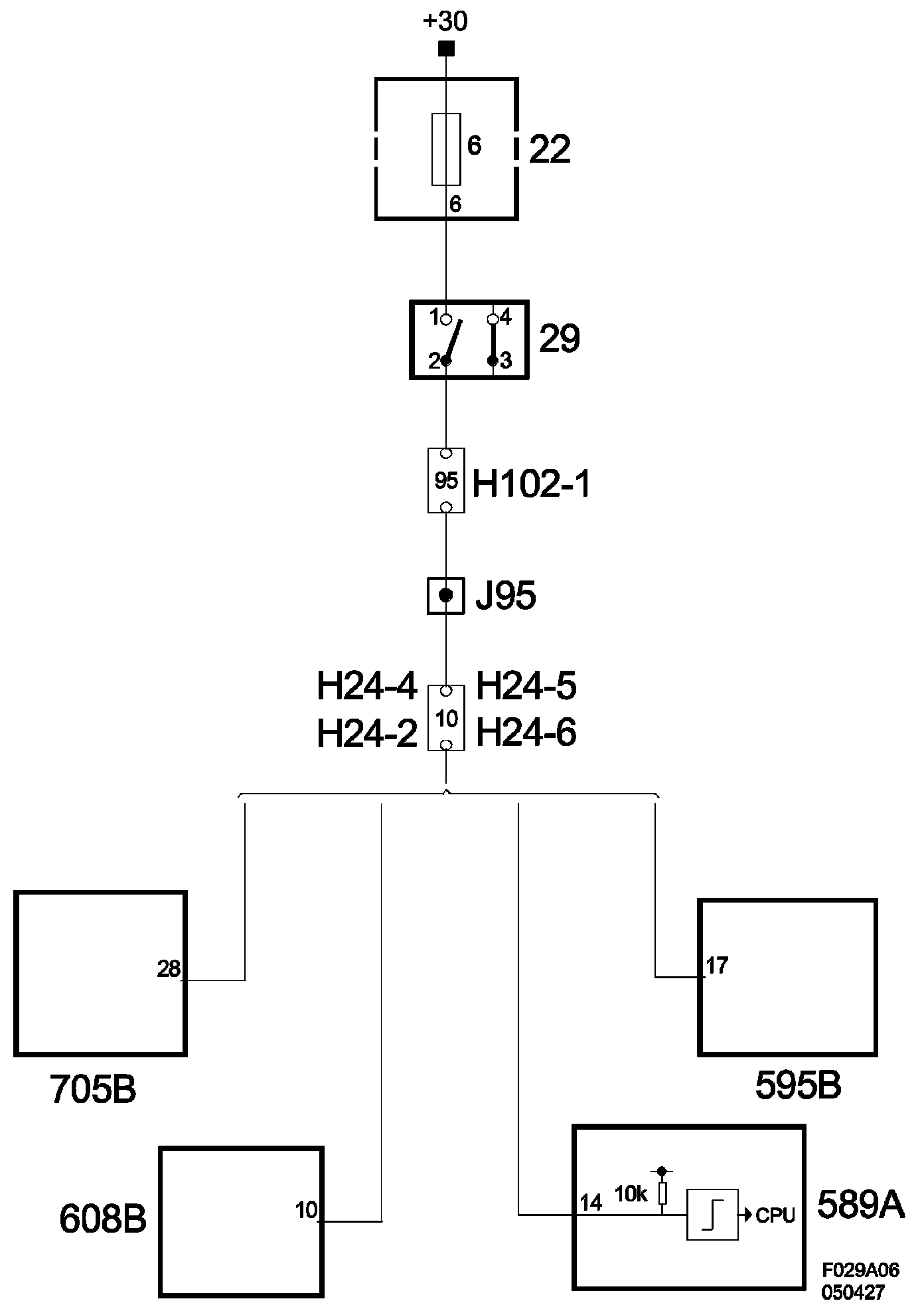

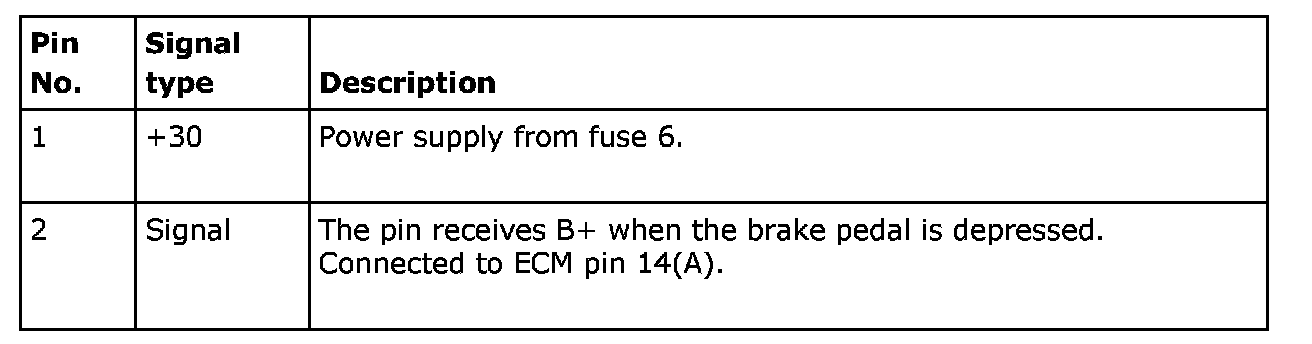

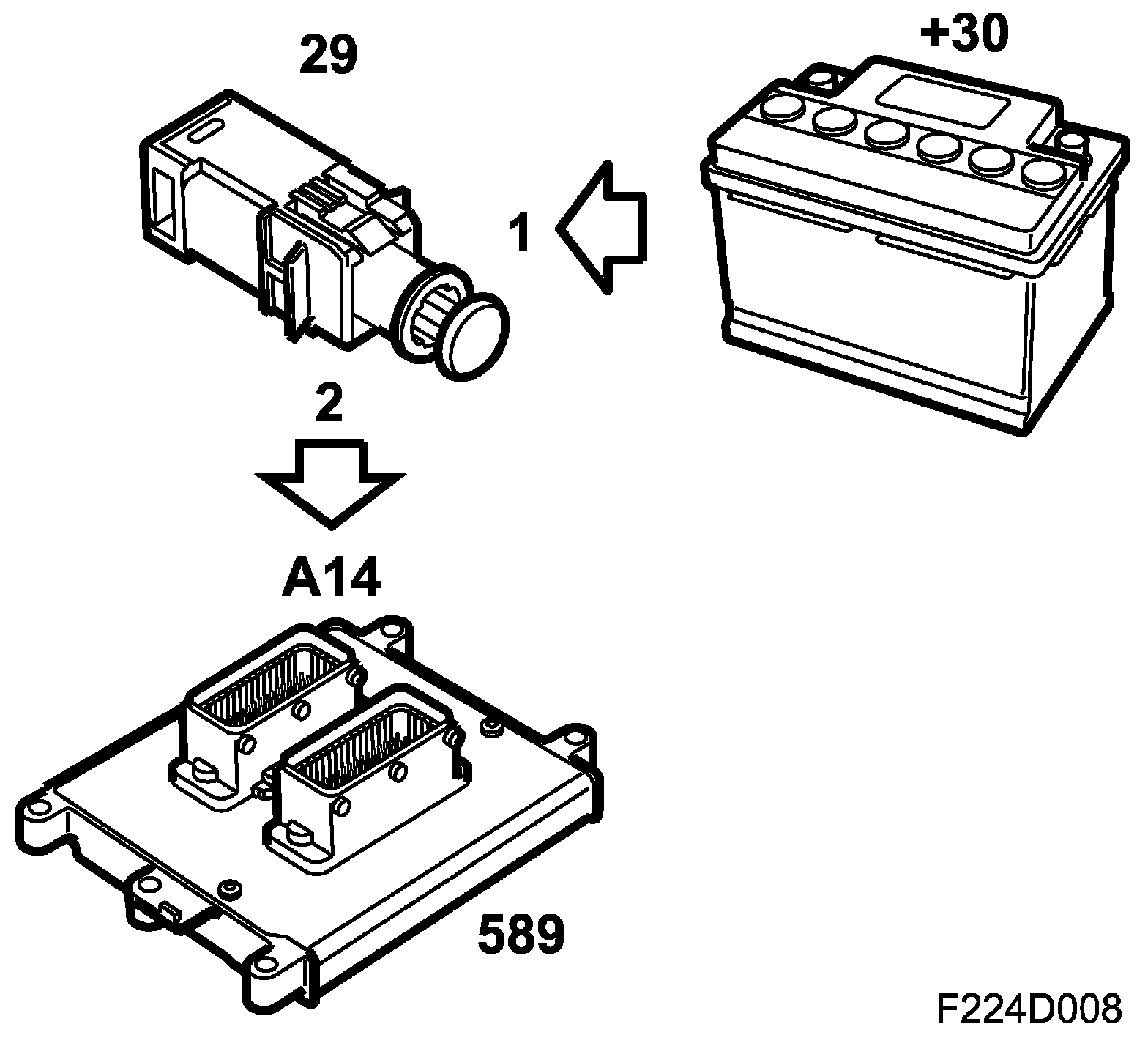

Connection
