General Specifications

Valve gear

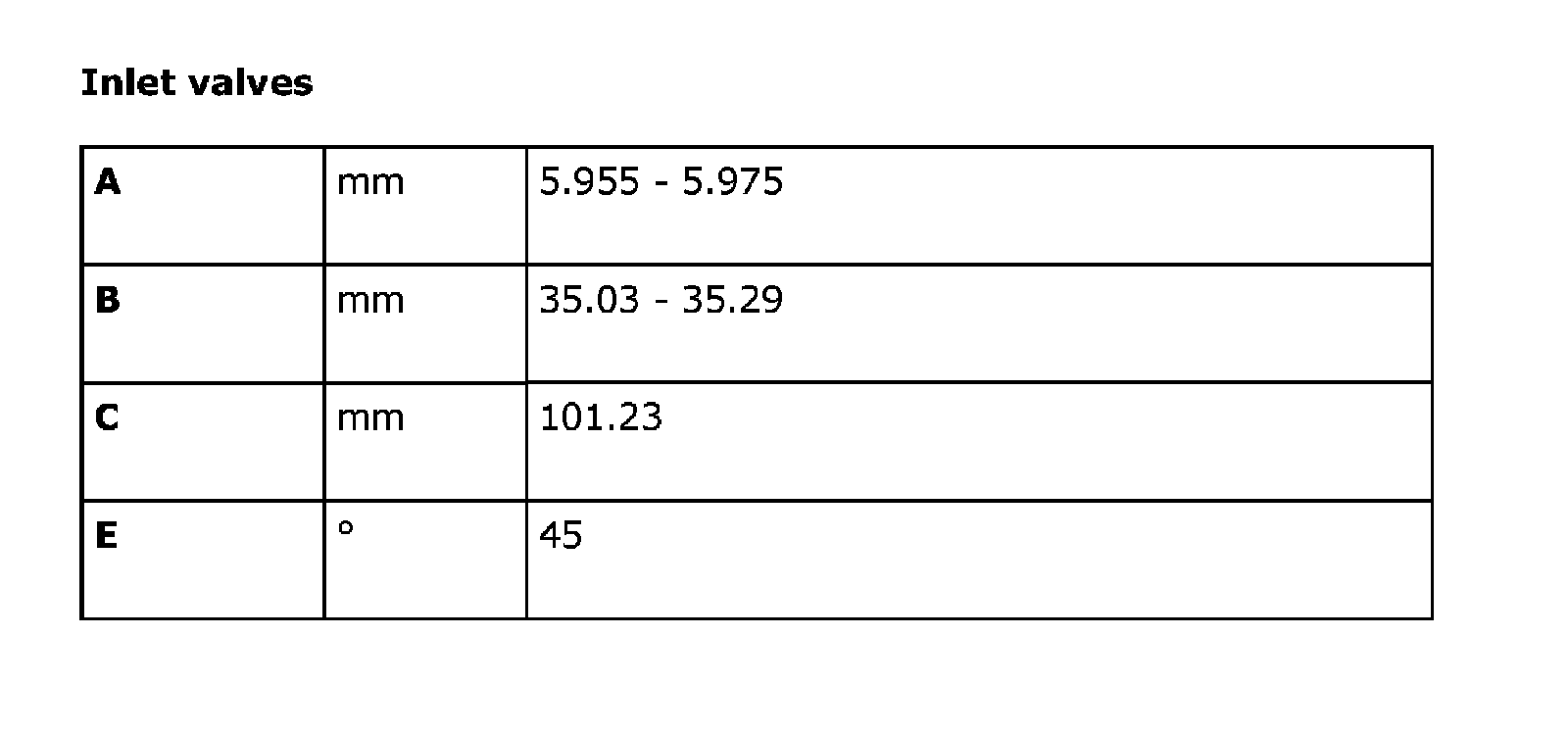

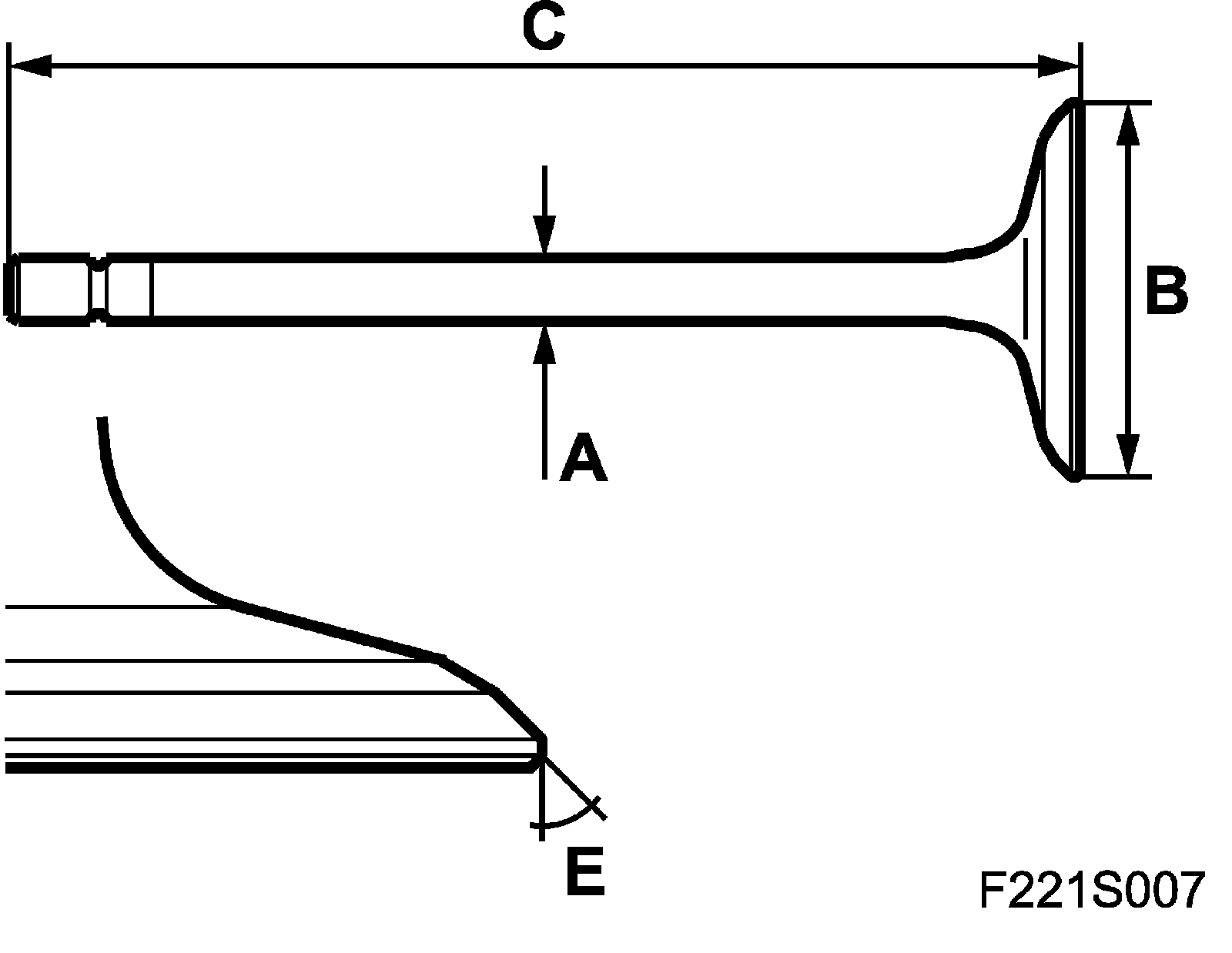

1. Inlet valves

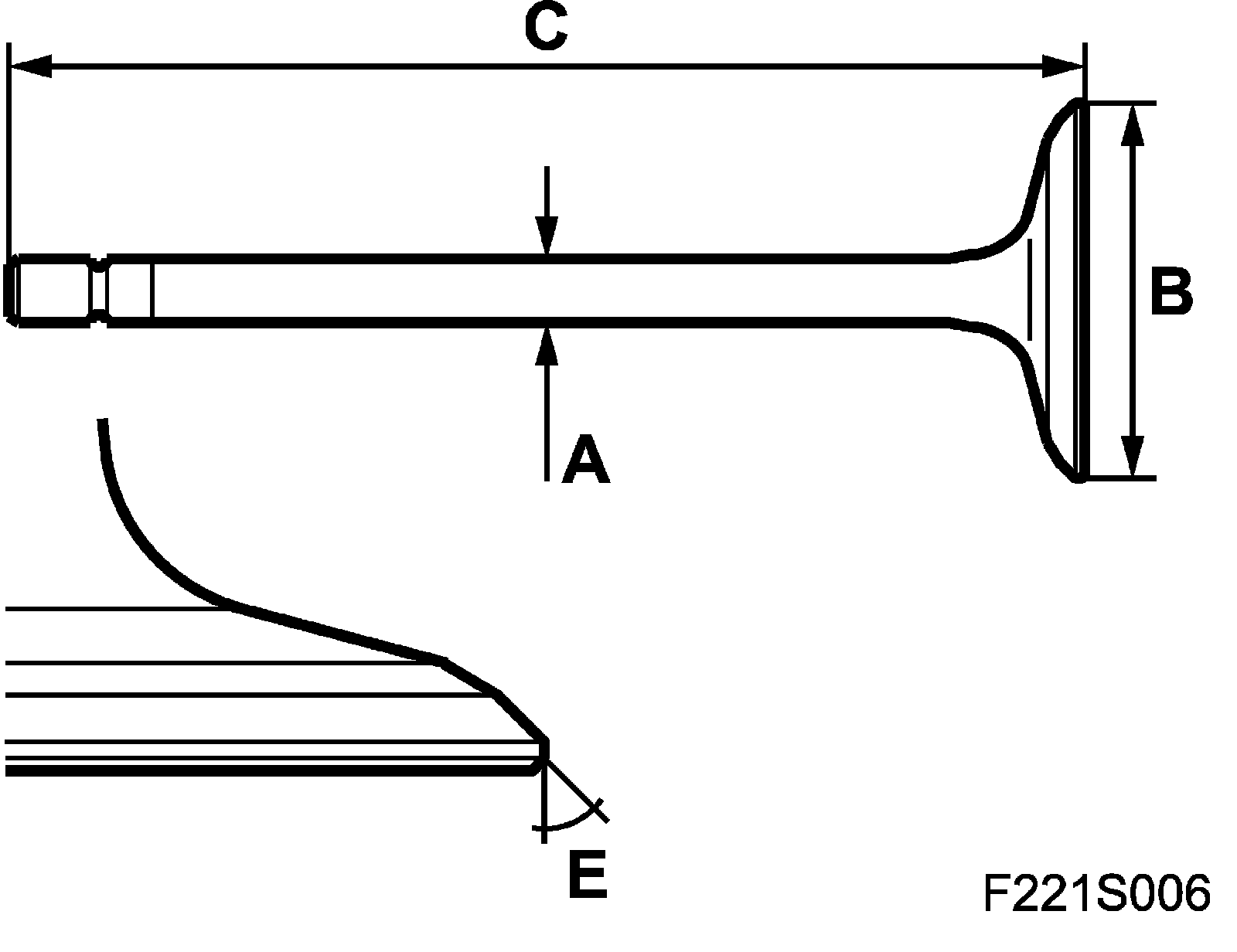

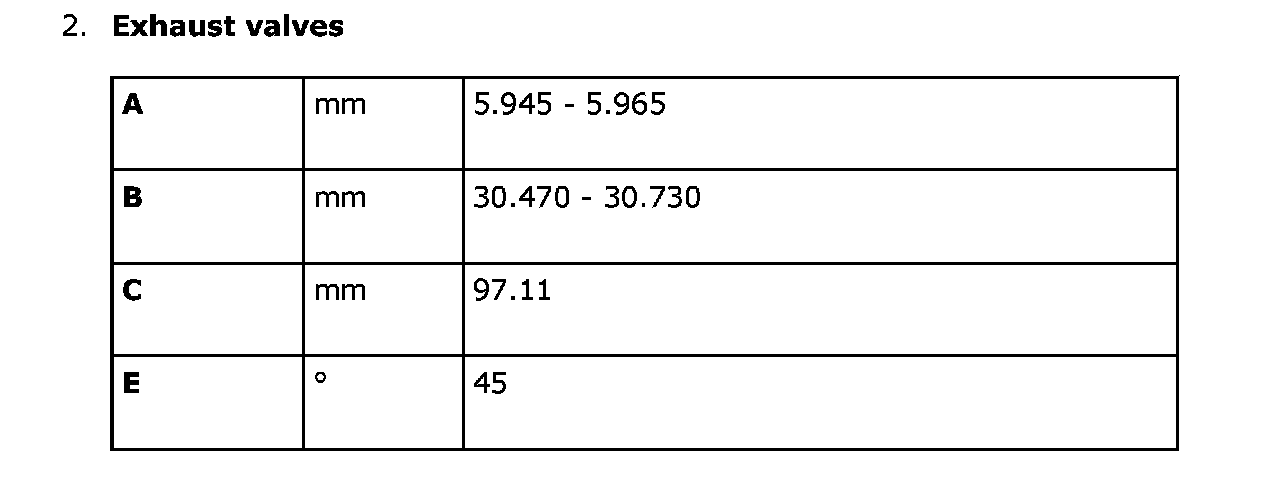

2. Exhaust valves





Warning
The exhaust valves are filled with salt and must not be heated to glowing else there is a risk of explosion.

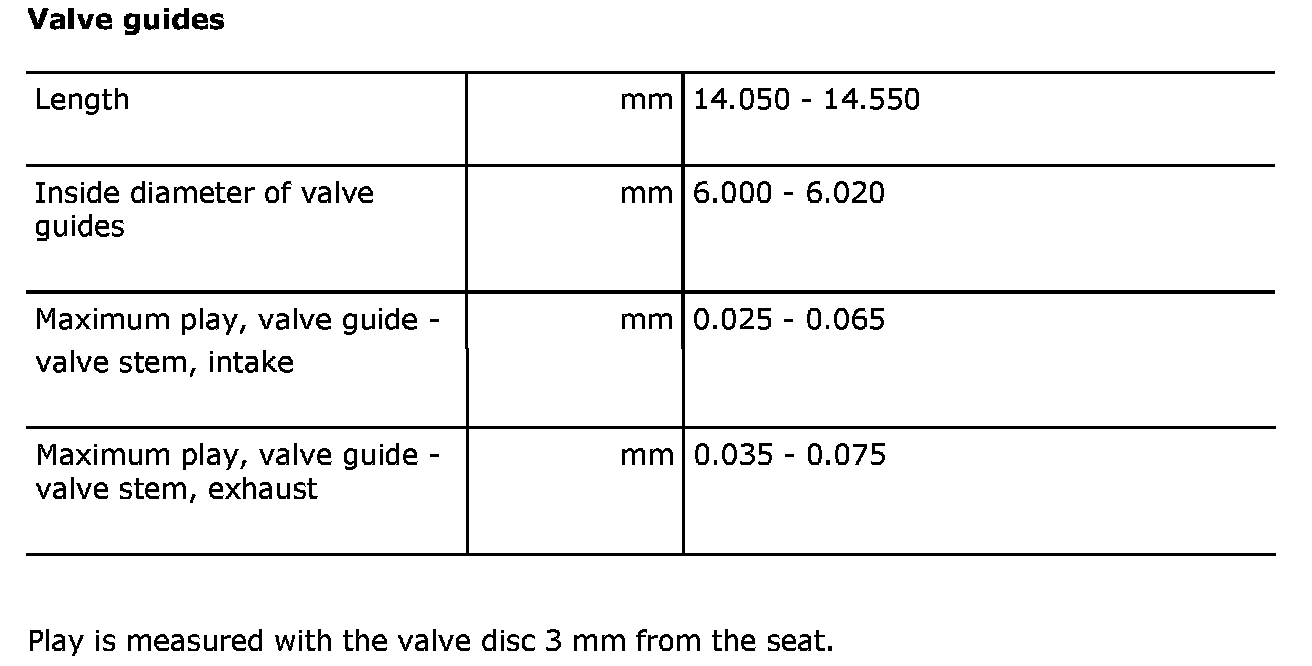

Valve guides

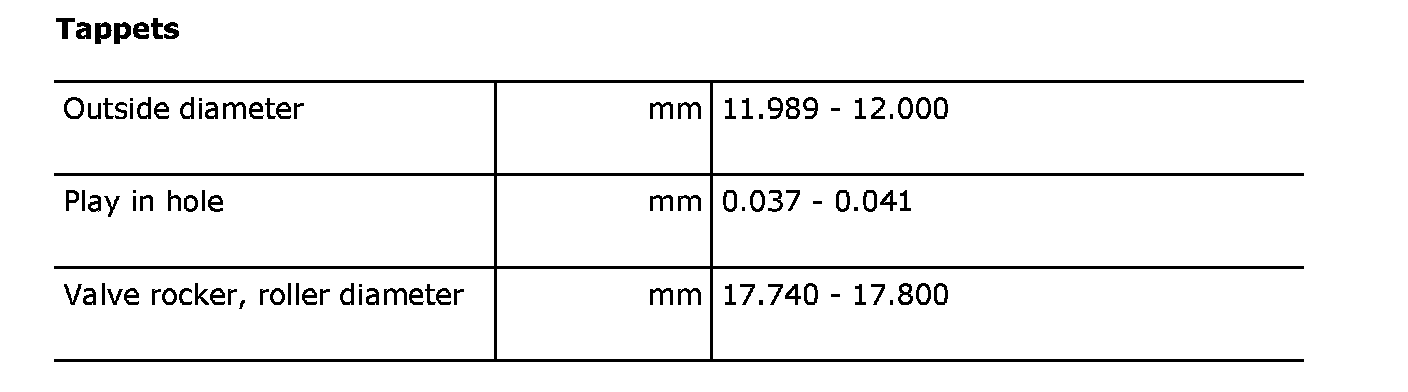

Tappets

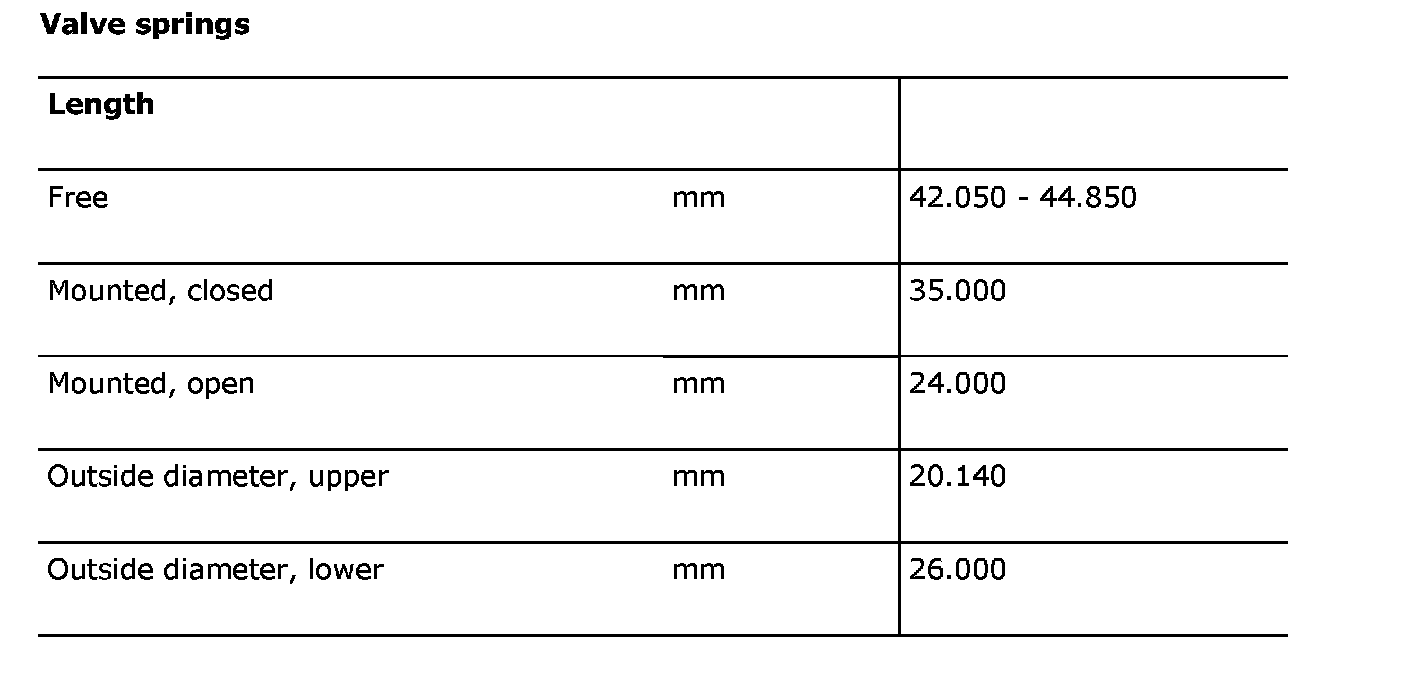

Valve springs
