Crimp J360, Center Console Harness
Crimp J360, Center Console Harness
Location:
Approx.
80 mm
from UHP control module

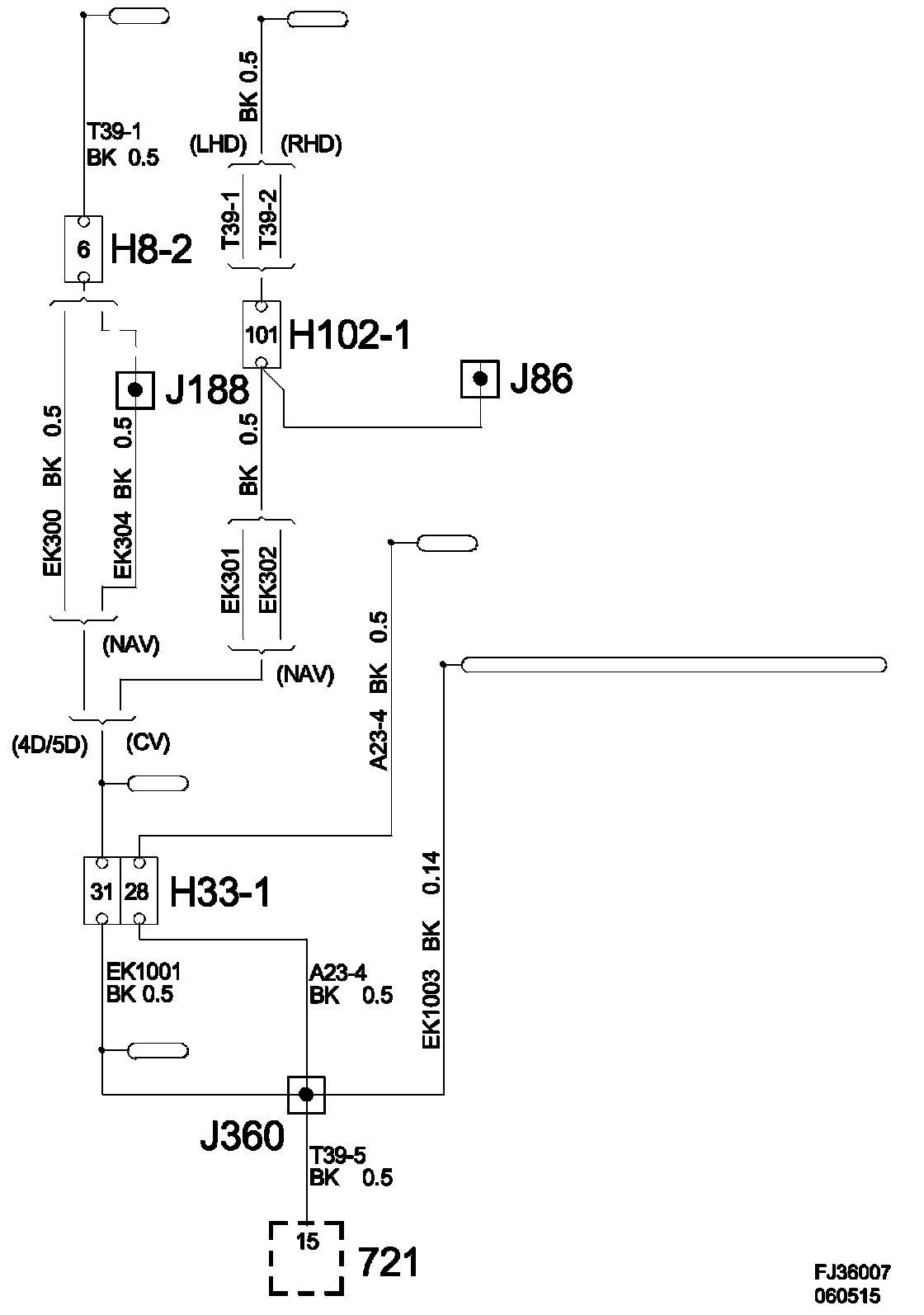

Crimp J360, Centre Console Harness:

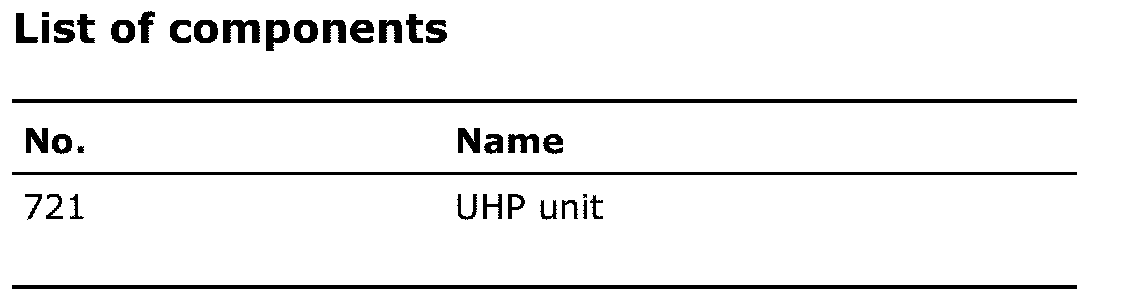

List Of Components:
