Grounding Point G48 (CV)
Grounding Point G48 (CV)

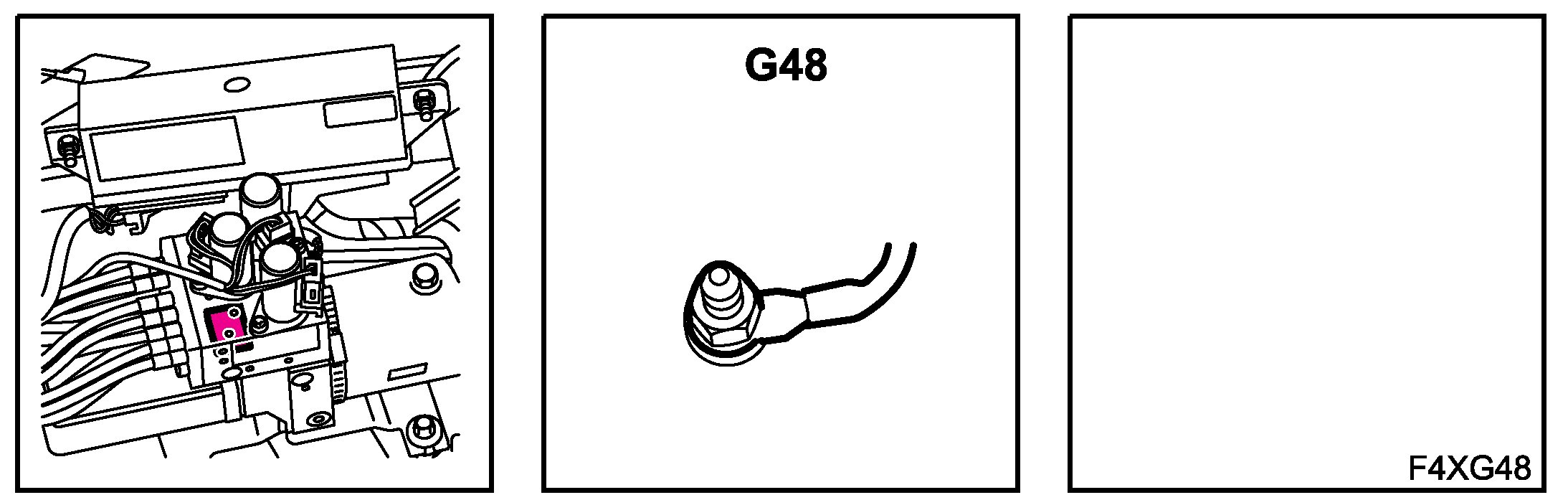

Location:
by the STC control module

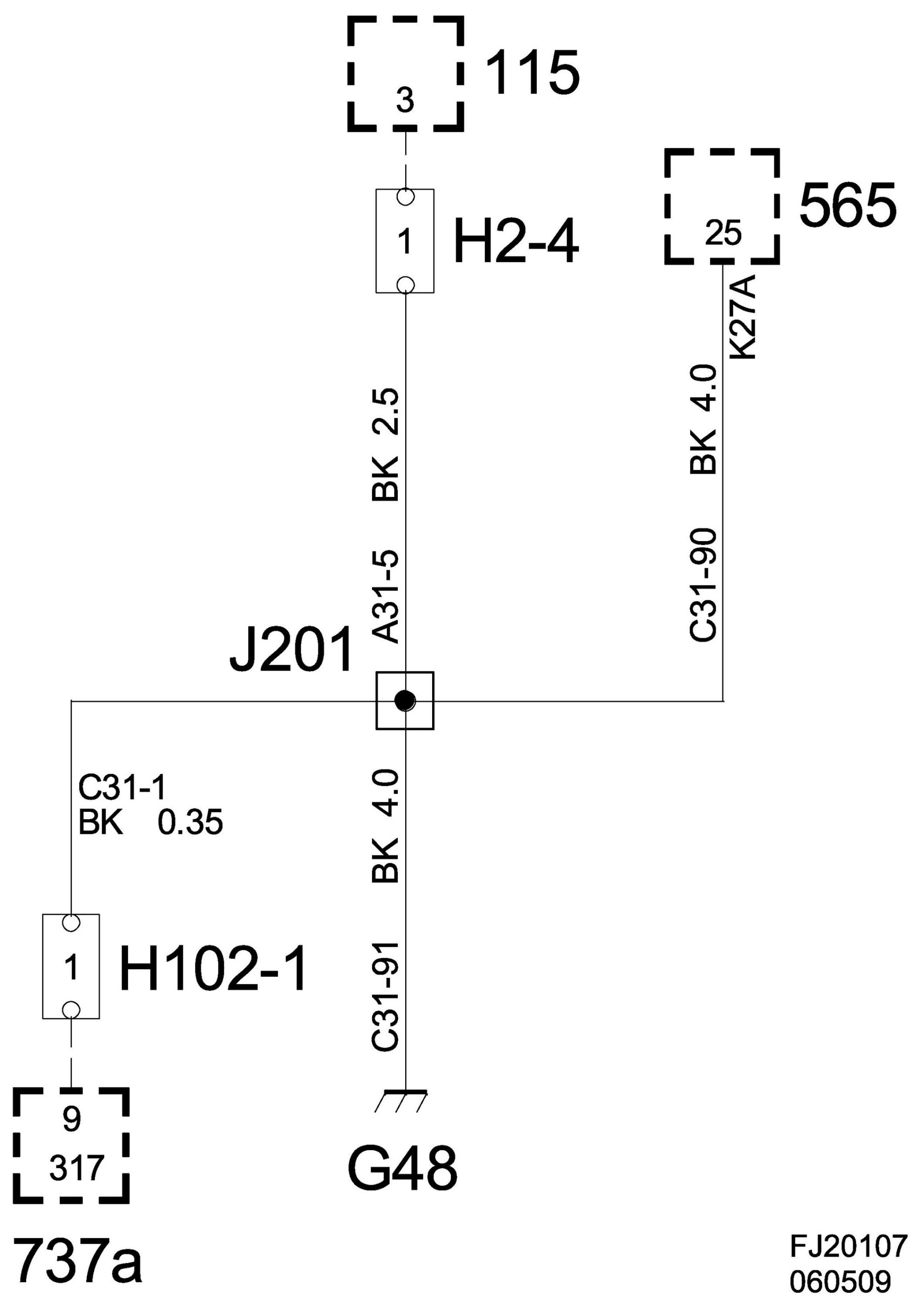

Grounding Point G48 (CV):

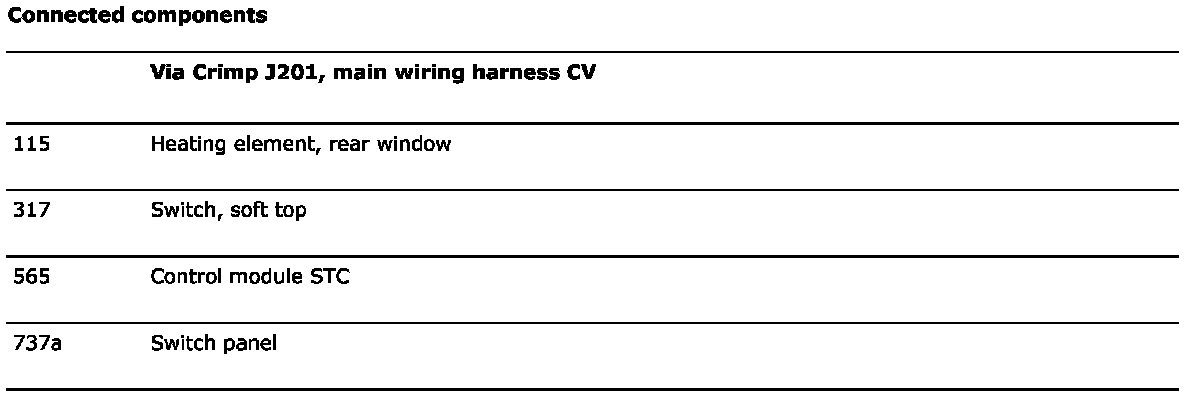

Connected Components:
