Power Steering Pump, Bracket

Power steering pump, bracket, B284

To remove
1. Remove the Power steering pump, B284 2. Remove the bracket:

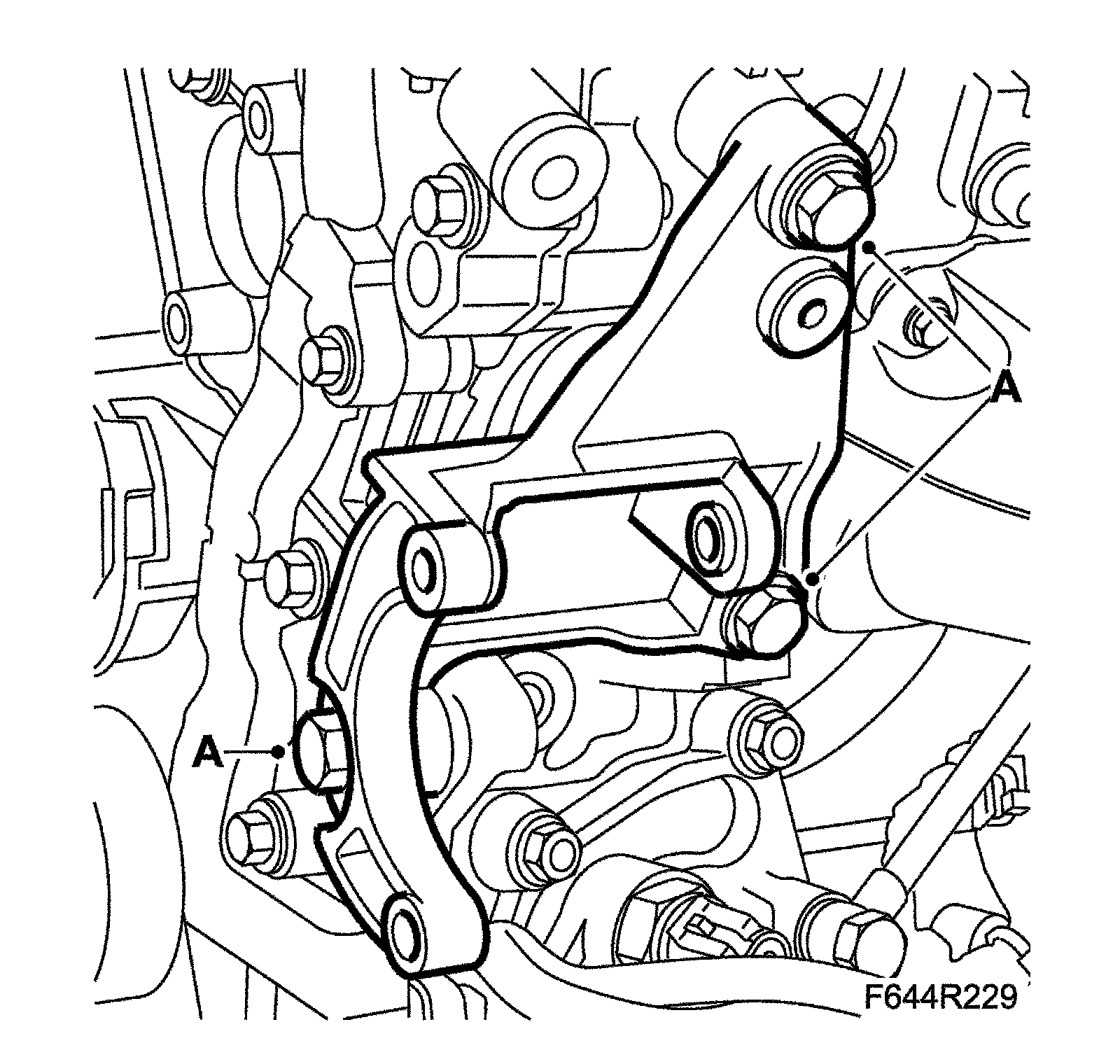

^ Remove the screws (A) and lift away the bracket.





To fit
1. Fit the bracket

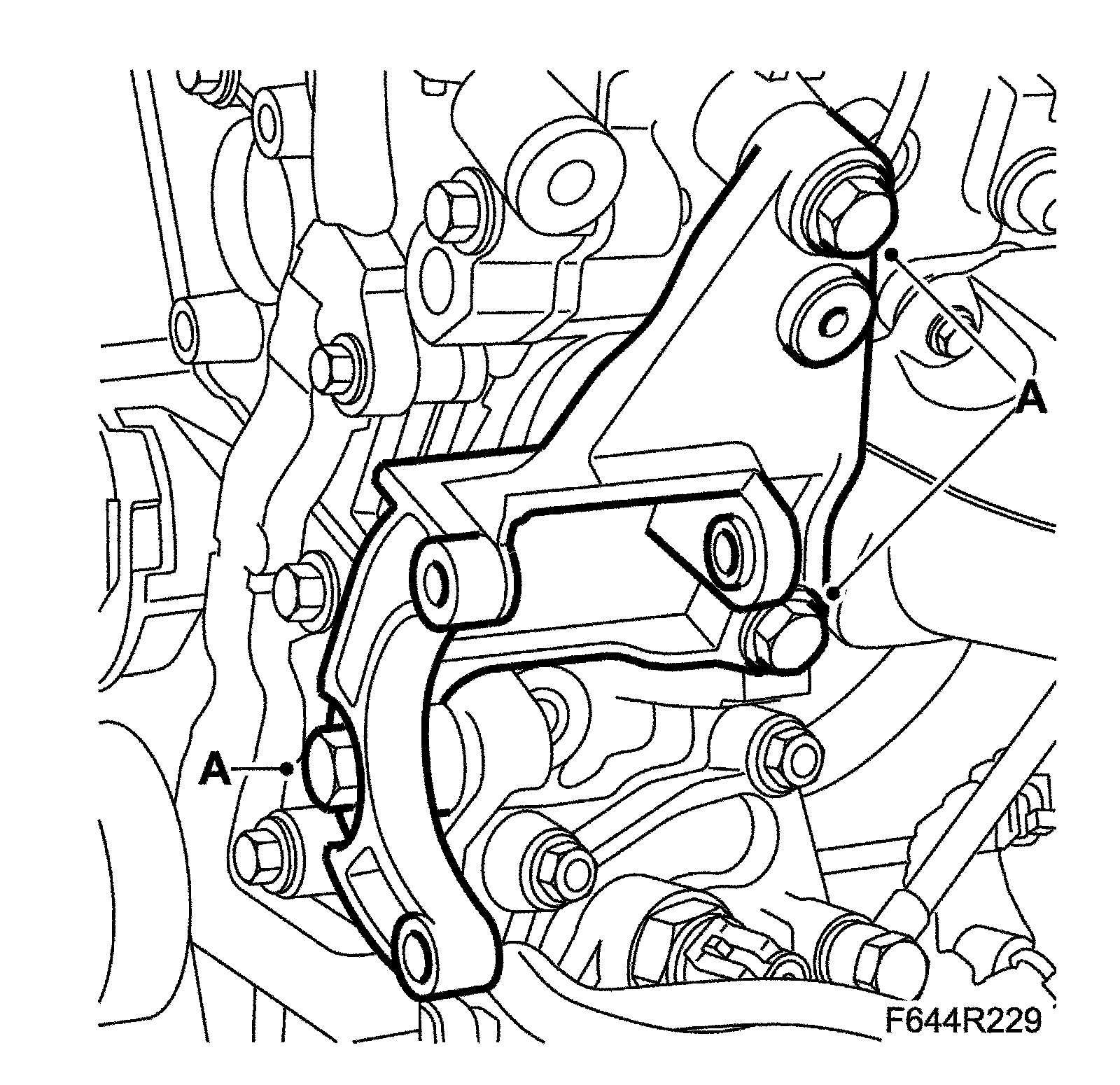

^ Position the bracket and fit the screws (A).





2. Fit the Power steering pump, B284
