Procedures

Procedure - detachable towbar

Cars without bumper skirt

1. Print out template 1 and cut out the template.

2. Position template 1 (A) on the inside of the bumper shell against the upper marking and draw around the lower edge of the template.

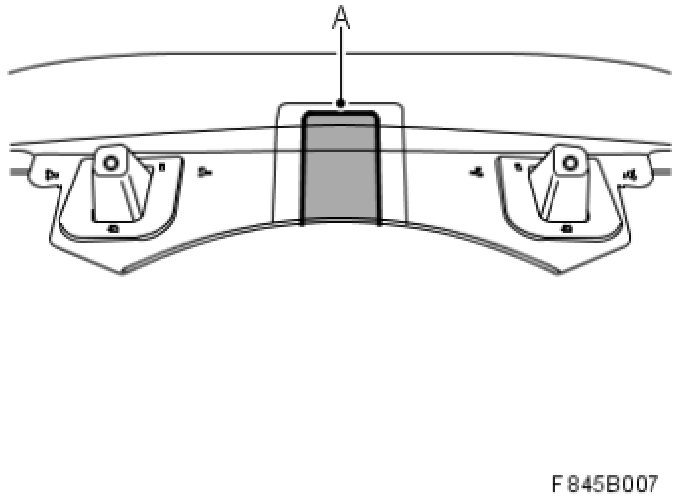

3. Cut/saw from the inside of the bumper shell (B).

NOTE: The cut-out may need to be adapted to the towbar after fitting. Check that there is a small amount of play between towbar and bumper.





Cars with bumper skirt

1. Print out template 2 and cut out the template.

2. Saw from the inside of the bumper in accordance with the outer markings up to (A).





3. Turn the bumper over.

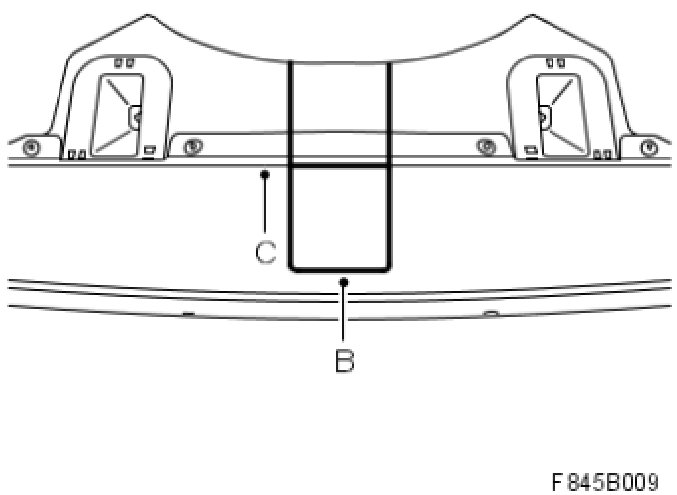

4. Position template 2 (B) on the outside of the bumper skirt against the edge (C). Centre between the sawn grooves and draw around the template.

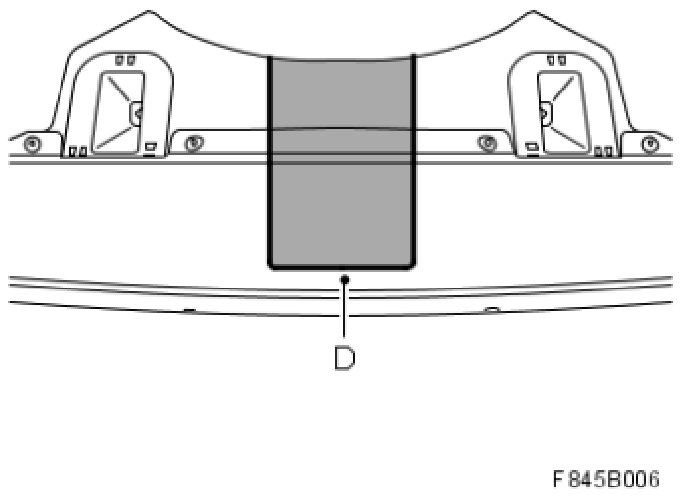

5. Saw from the outside of the bumper skirt in accordance with the marking (D).

NOTE: The cut-out may need to be adapted to the towbar after fitting. Check that there is a small amount of play between towbar and bumper.





Procedure - fixed towbar

Cars without bumper skirt

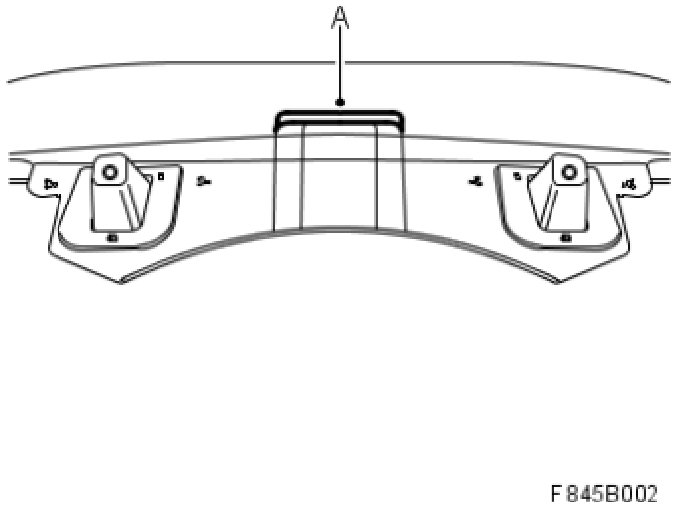

1. Cut/saw from the inside of the bumper in accordance with the inner markings (A).

NOTE: The cut-out may need to be adapted to the towbar after fitting. Check that there is a small amount of play between towbar and bumper.





Cars with bumper skirt

1. Print out template 3 and cut out the template.

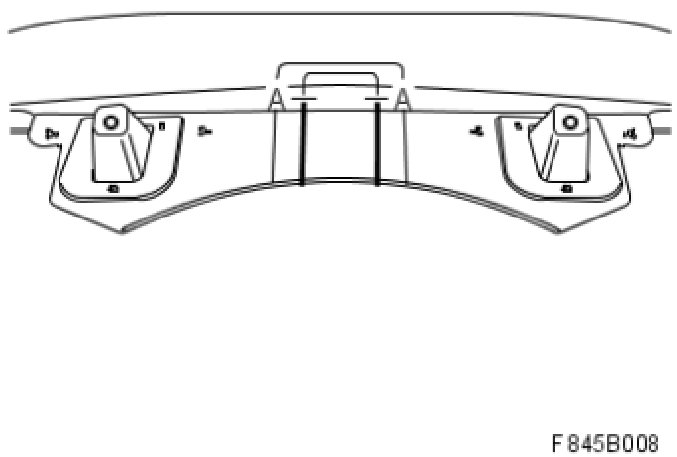

2. Saw from the inside of the bumper in accordance with the inner markings up to (A).





3. Turn the bumper over.

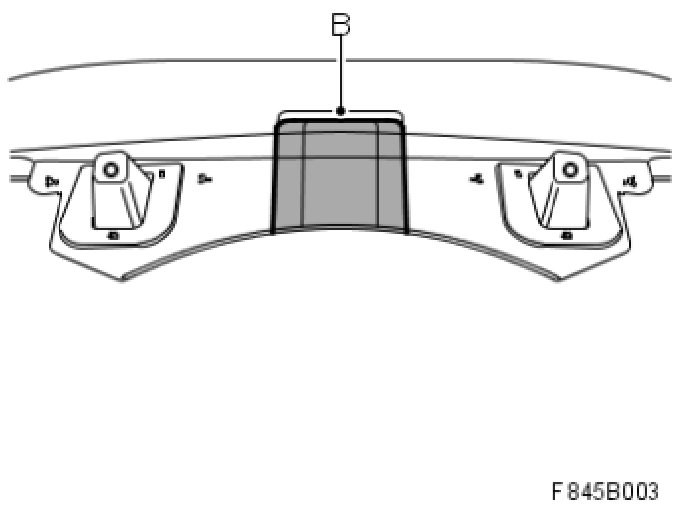

4. Position template 3 (B) on the outside of the bumper skirt against the edge (C). Centre between the sawn grooves and draw around the template.

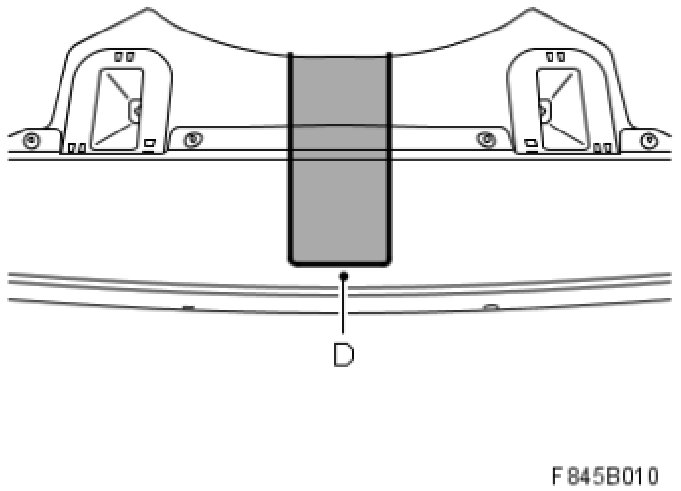

5. Saw from the outside of the bumper skirt in accordance with the marking (D).

NOTE: The cut-out may need to be adapted to the towbar after fitting. Check that there is a small amount of play between towbar and bumper.

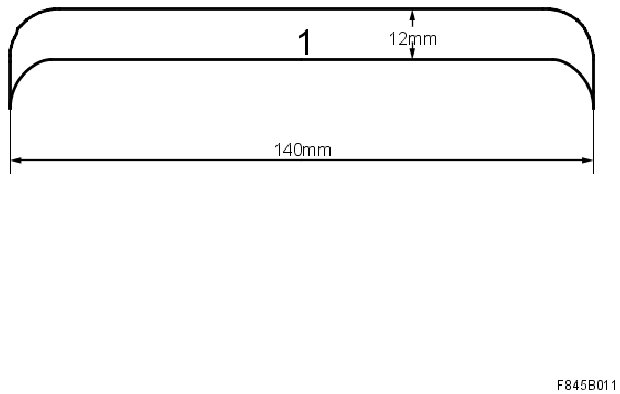

Template 1

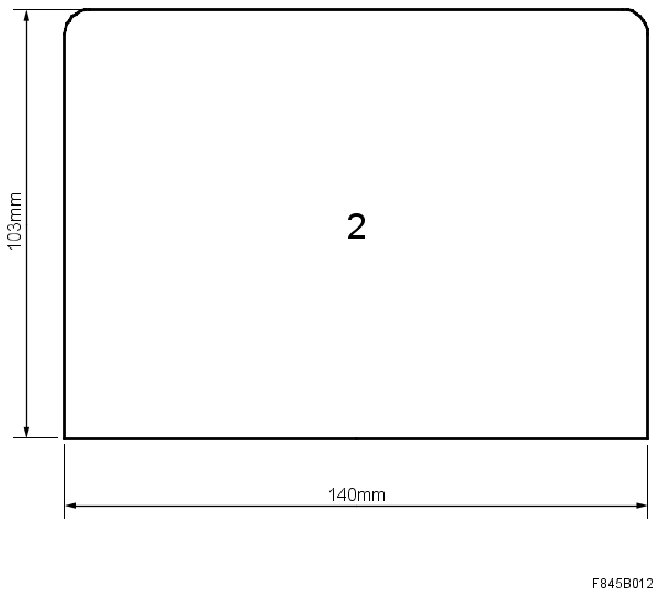

Template 2

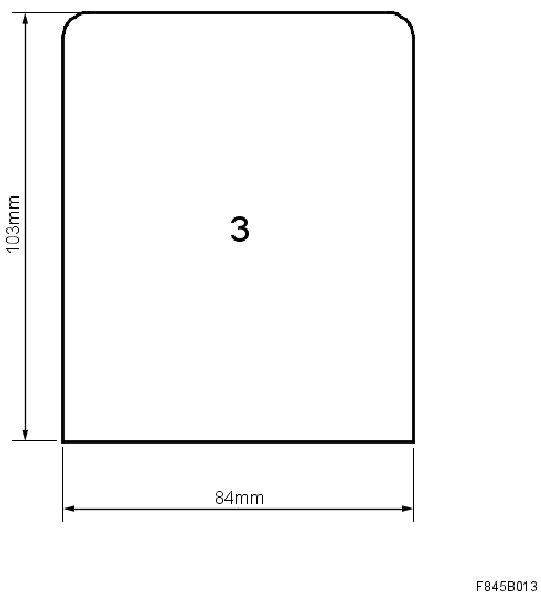

Template 3





ALLDATA EDITOR NOTE:
Templates not to scale.
