Home >> Saab >> 2008 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams >> Electrical Diagrams >> Electric Window Lift, RR

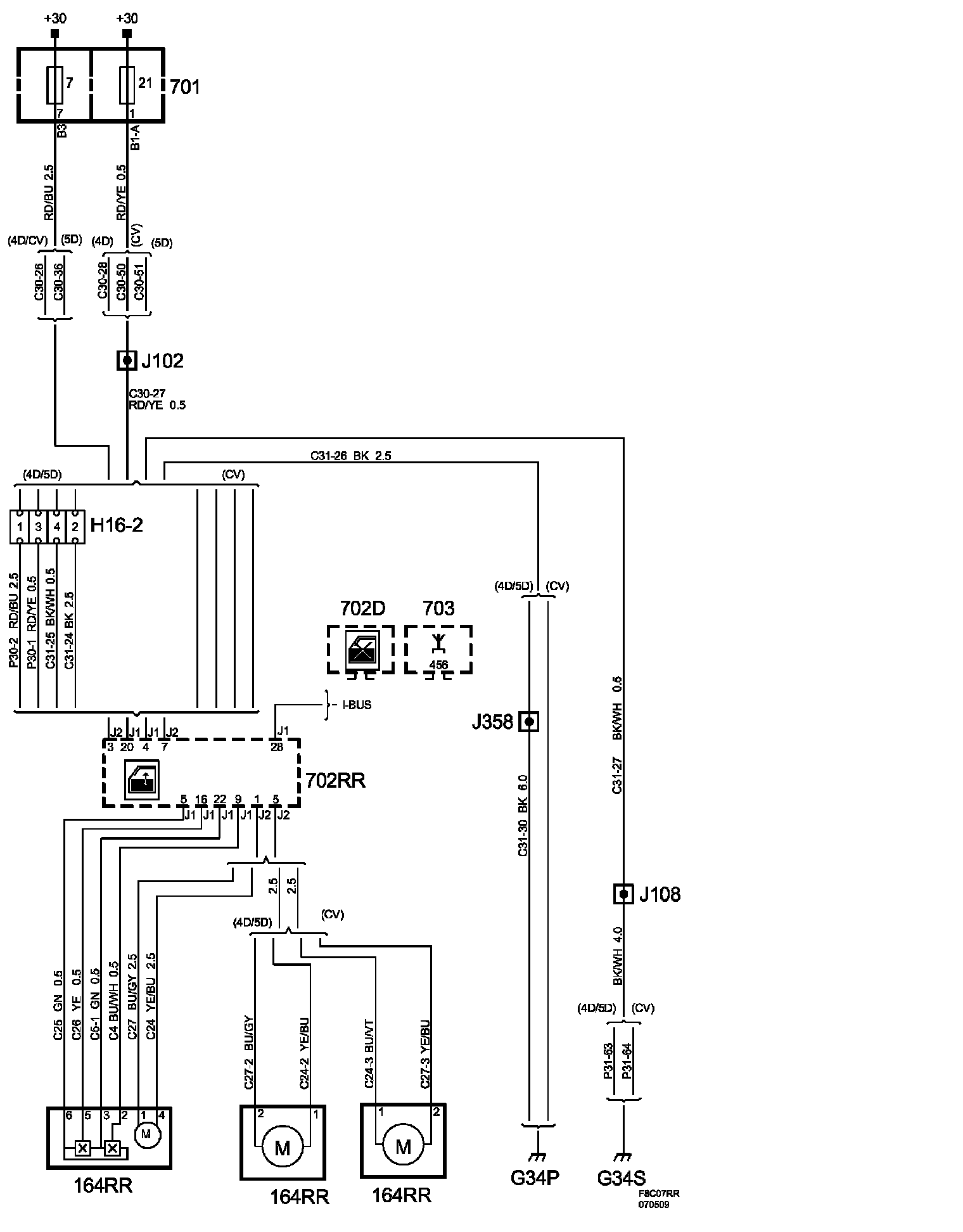

Electric Window Lift, RR

Electric Window Lift, RR:

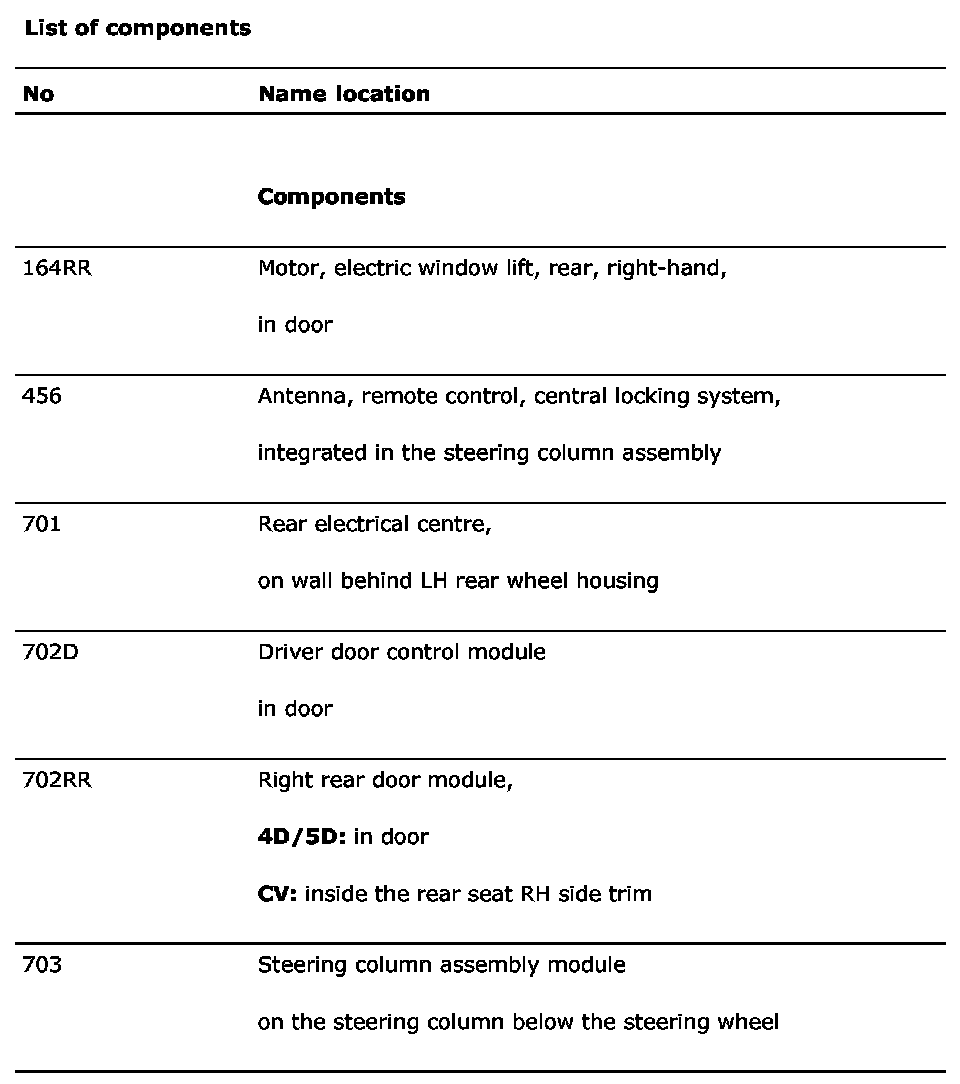

List of Components (Part 1):

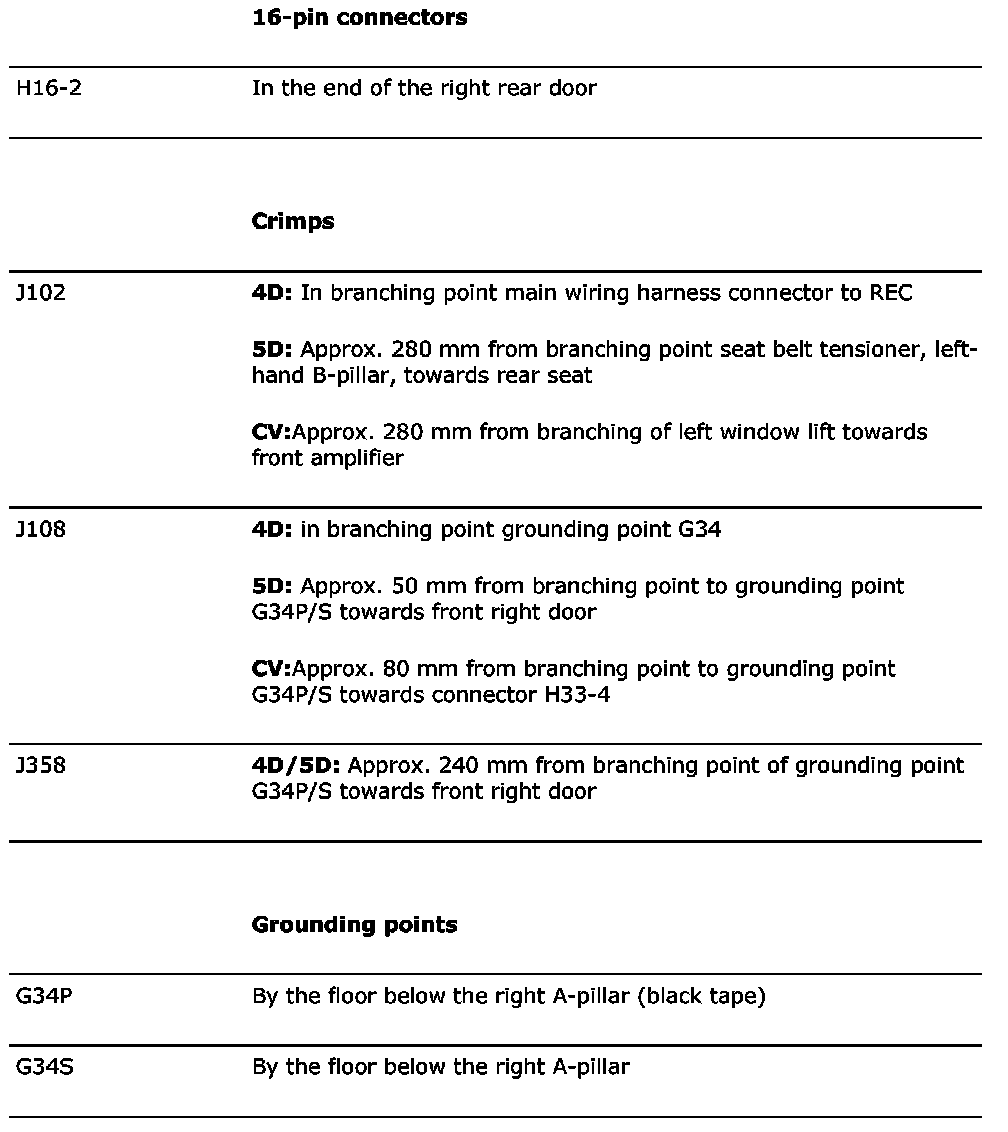

List of Components (Part 2):
