Diesel Data: Automotive Repair

Washer Fluid Level Switch: Description and Operation

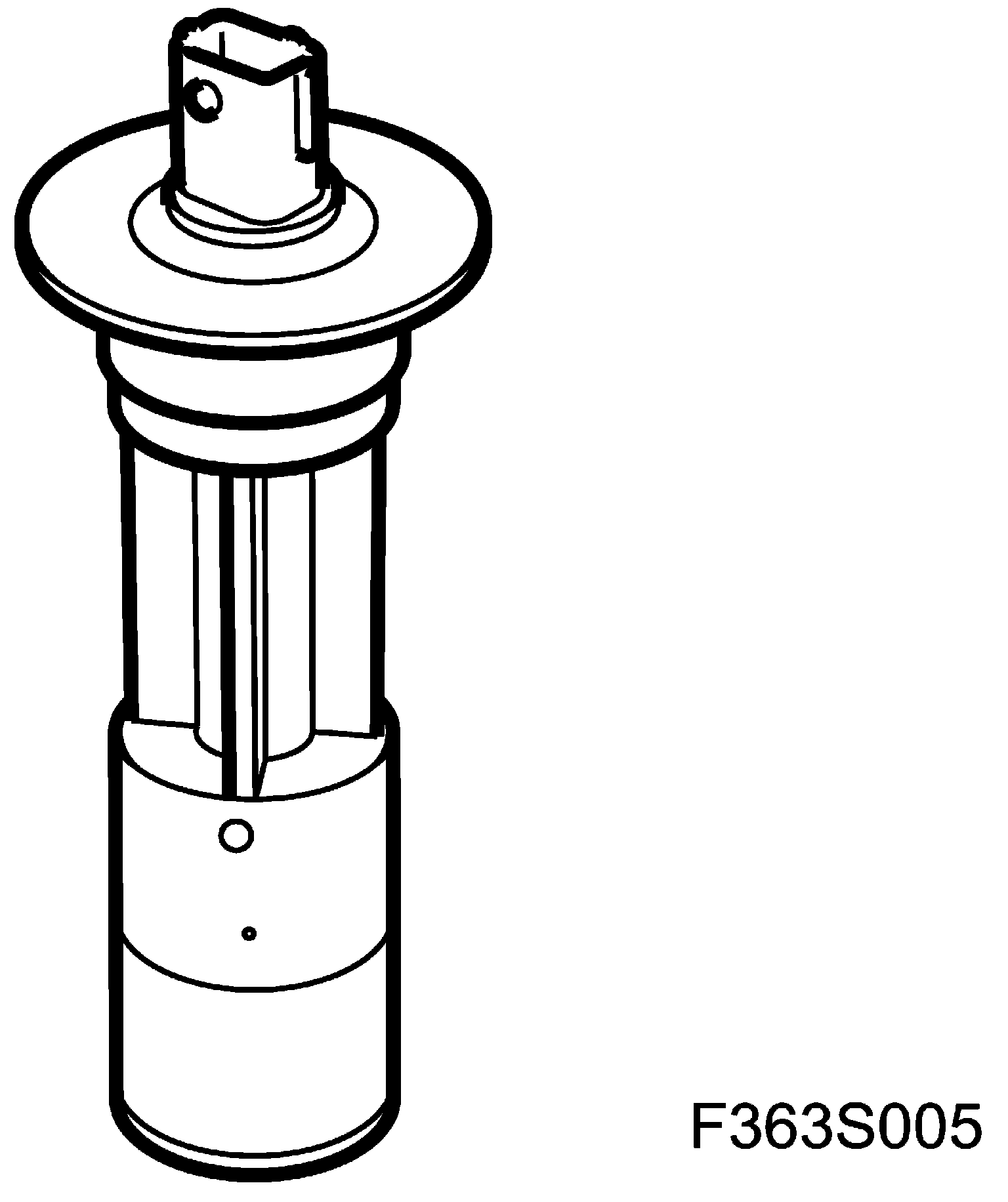

Washer Fluid Level Switch (195)

Location





Main task
Inform the driver that the washer fluid level is low.

Type
Float with corresponding switch.

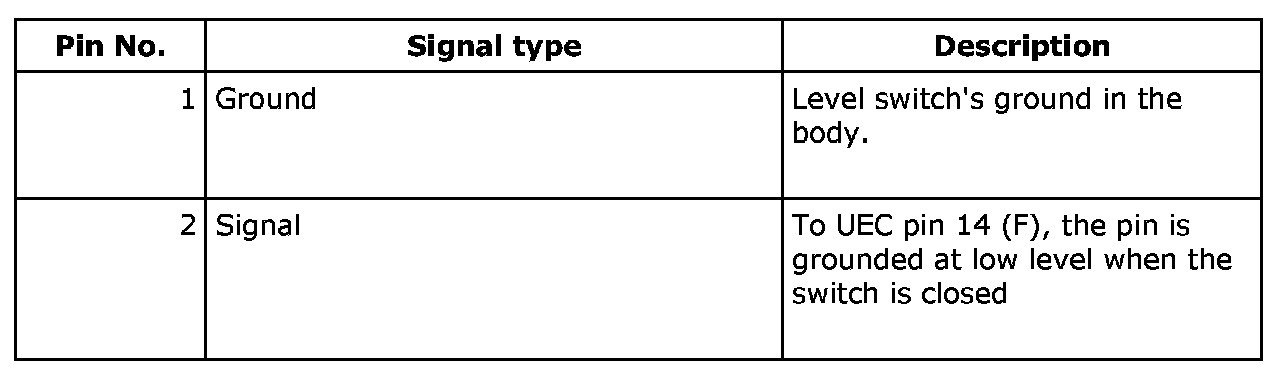

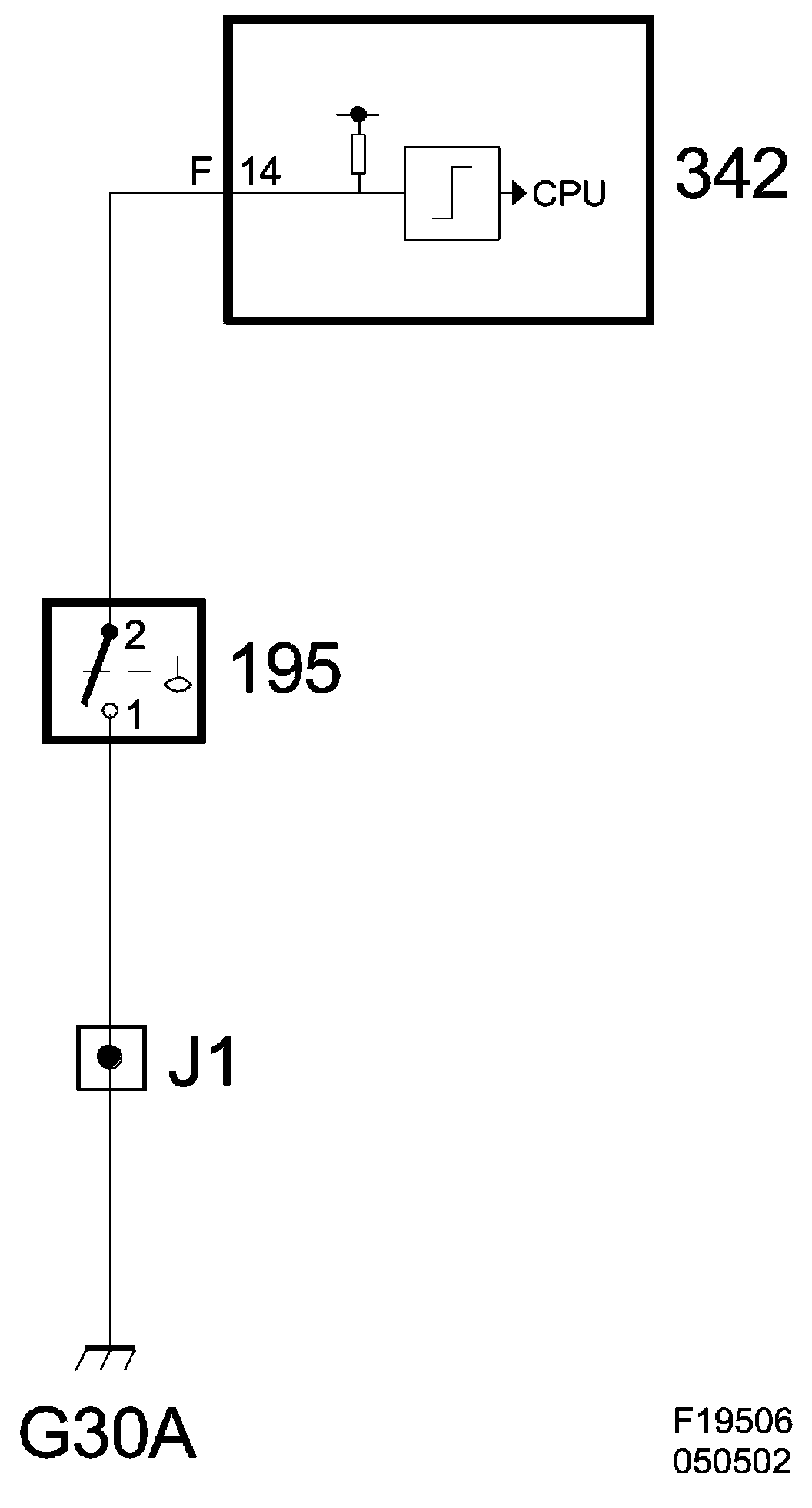

Connection
