Control Module Ground
Control Module Ground
Control Module Ground

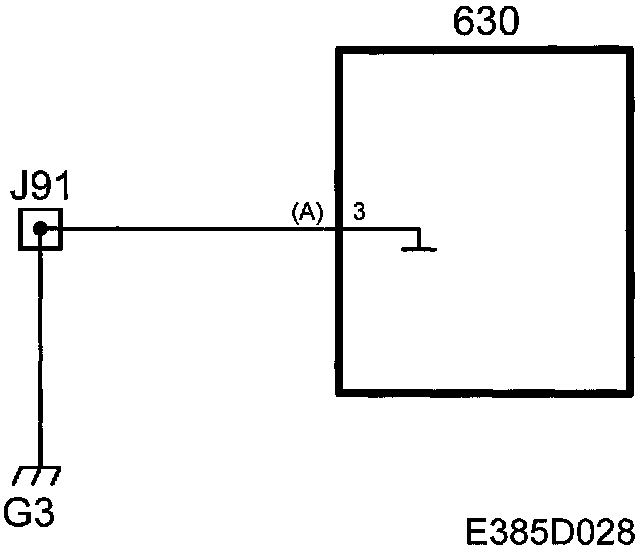

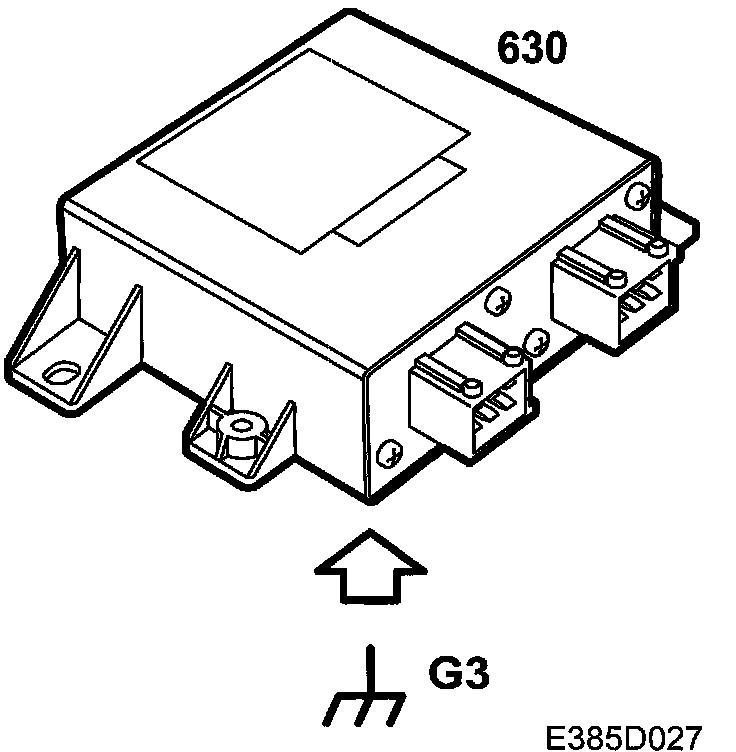

The control module is grounded from grounding point G3 on pin 3(A).
