Speakers, Rear Doors



Speakers, Rear Doors

To remove

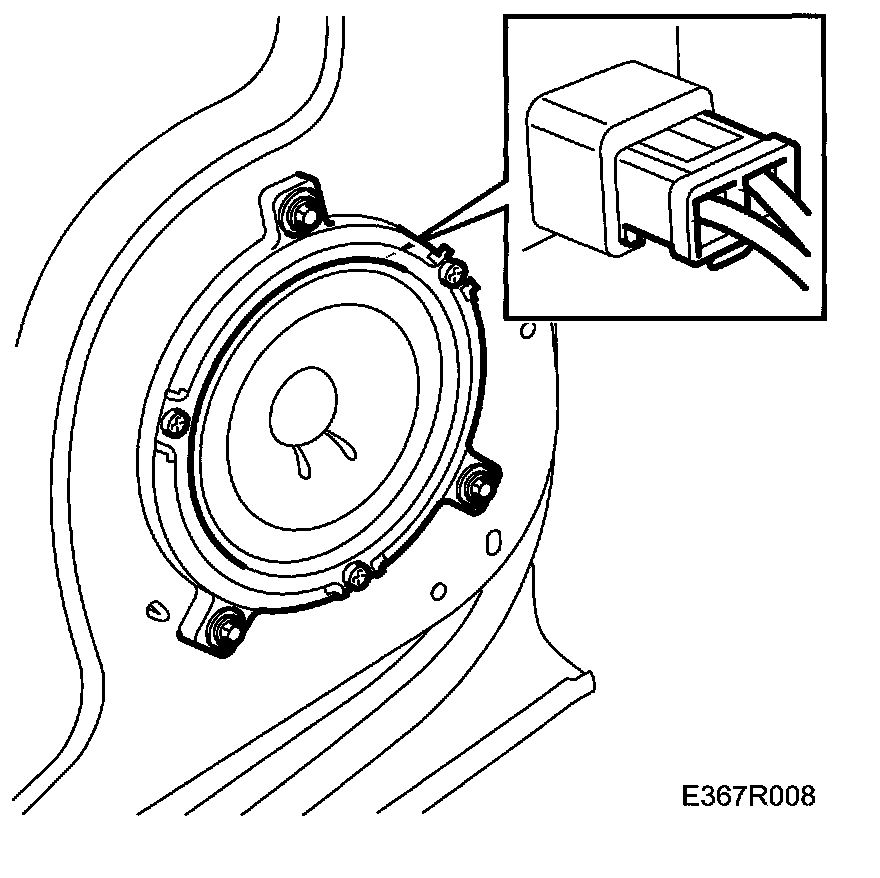

1. Remove the door trim to gain access to the speakers.
2. Remove the screws securing the speakers.
3. Take out the speakers and unplug the connectors.


To fit
Fit in reverse order.

NOTE: To obtain the best sound from the speakers,the doors should be air-tight.
