Passenger Assist Handle: Service and Repair

Courtesy Handle

To remove

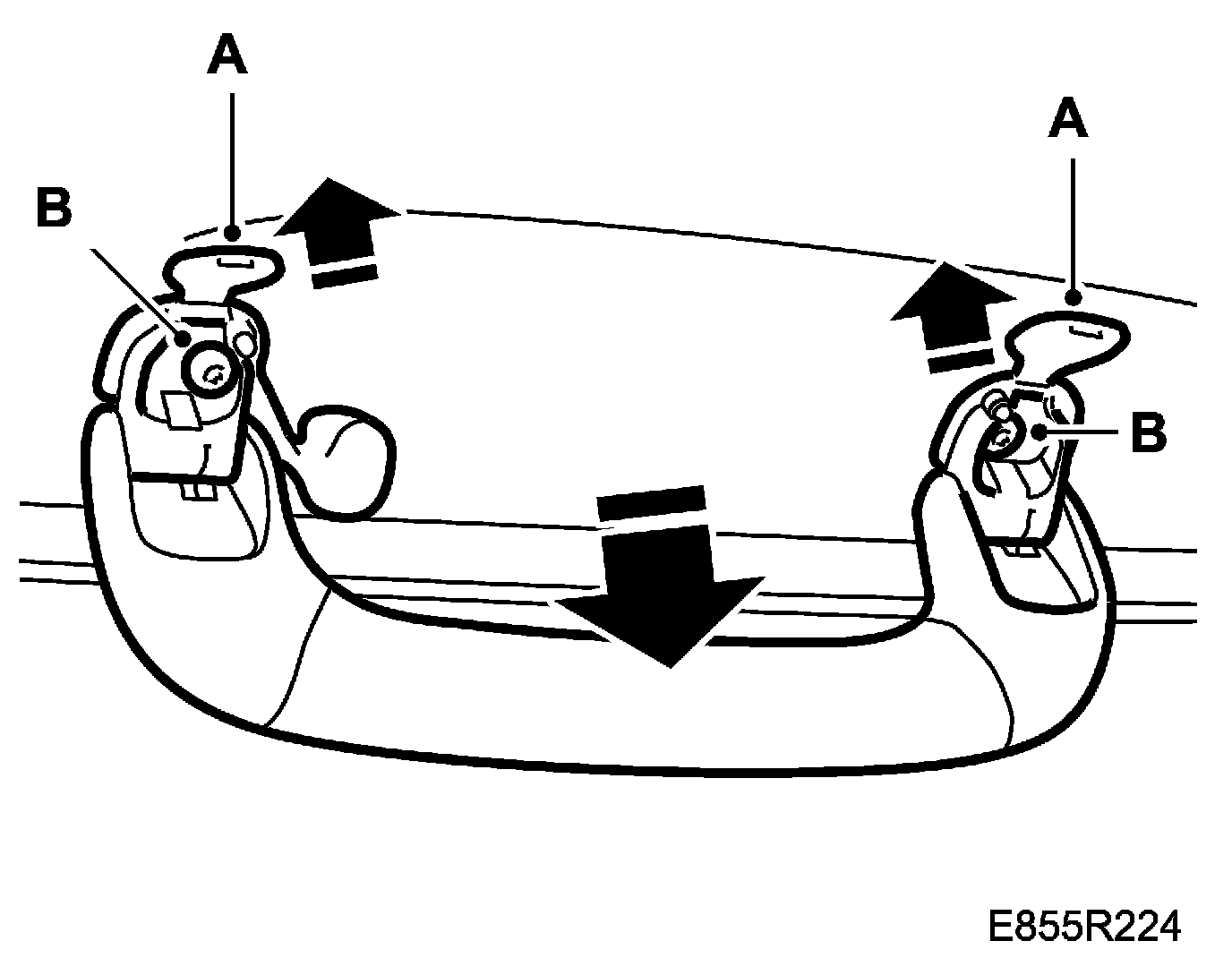

1. Move aside the covers (A) using a small screwdriver.
2. Remove the courtesy handle (B), 2 screws.

To fit







1. Fit the courtesy handle (B), 2 screws.
2. Move back the covers (A).
