Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Door Actuator / Motor, HVAC
>>
Motor, Air Distribution Damper, Defroster/Panel/Floor (221A)
Motor, Air Distribution Damper, Defroster/Panel/Floor (221A)

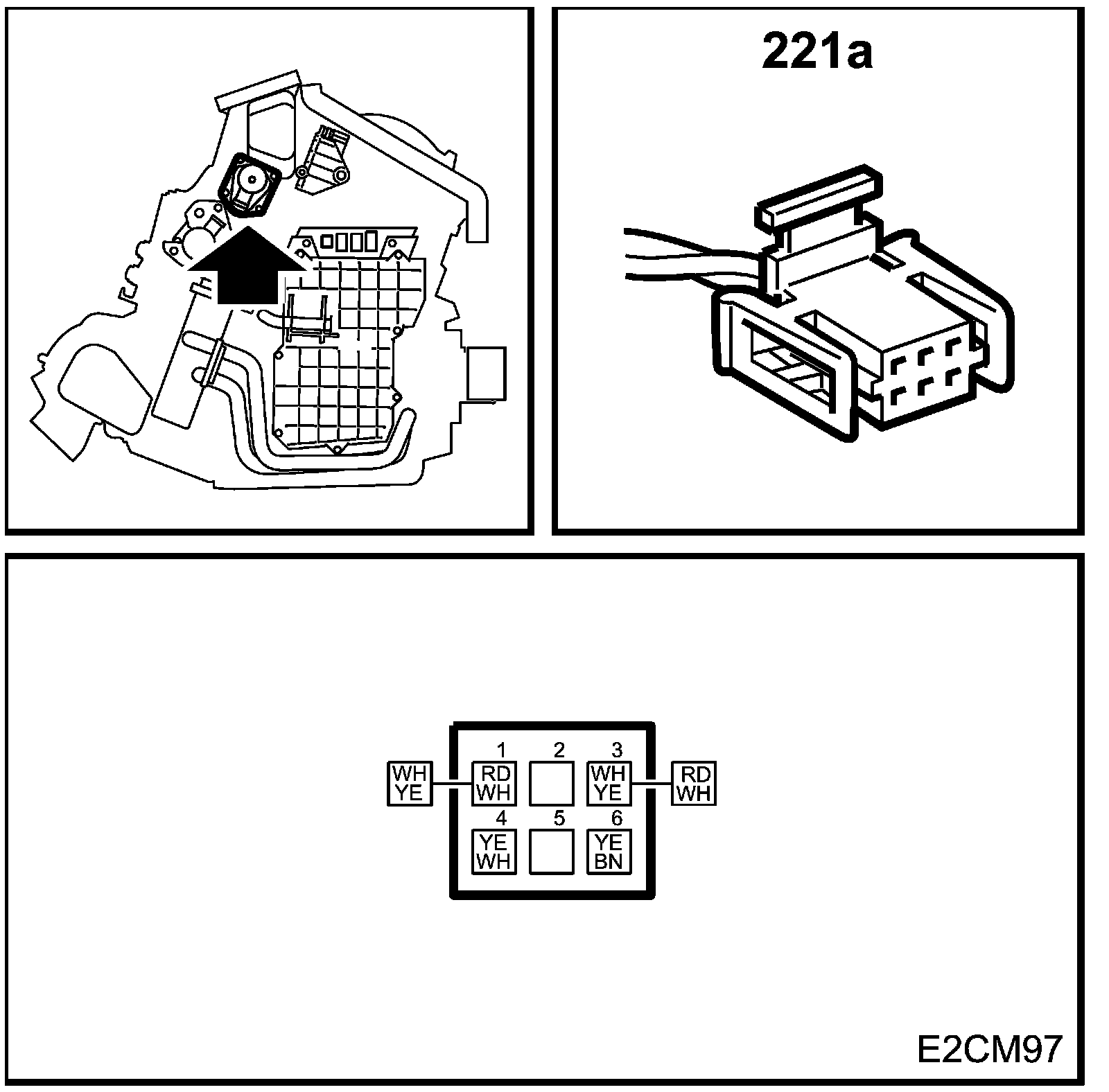

Motor, Air Distribution Damper, Defroster/Panel/Floor (221a):
