Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
DICE Control Module (628) LHD
DICE Control Module (628) LHD

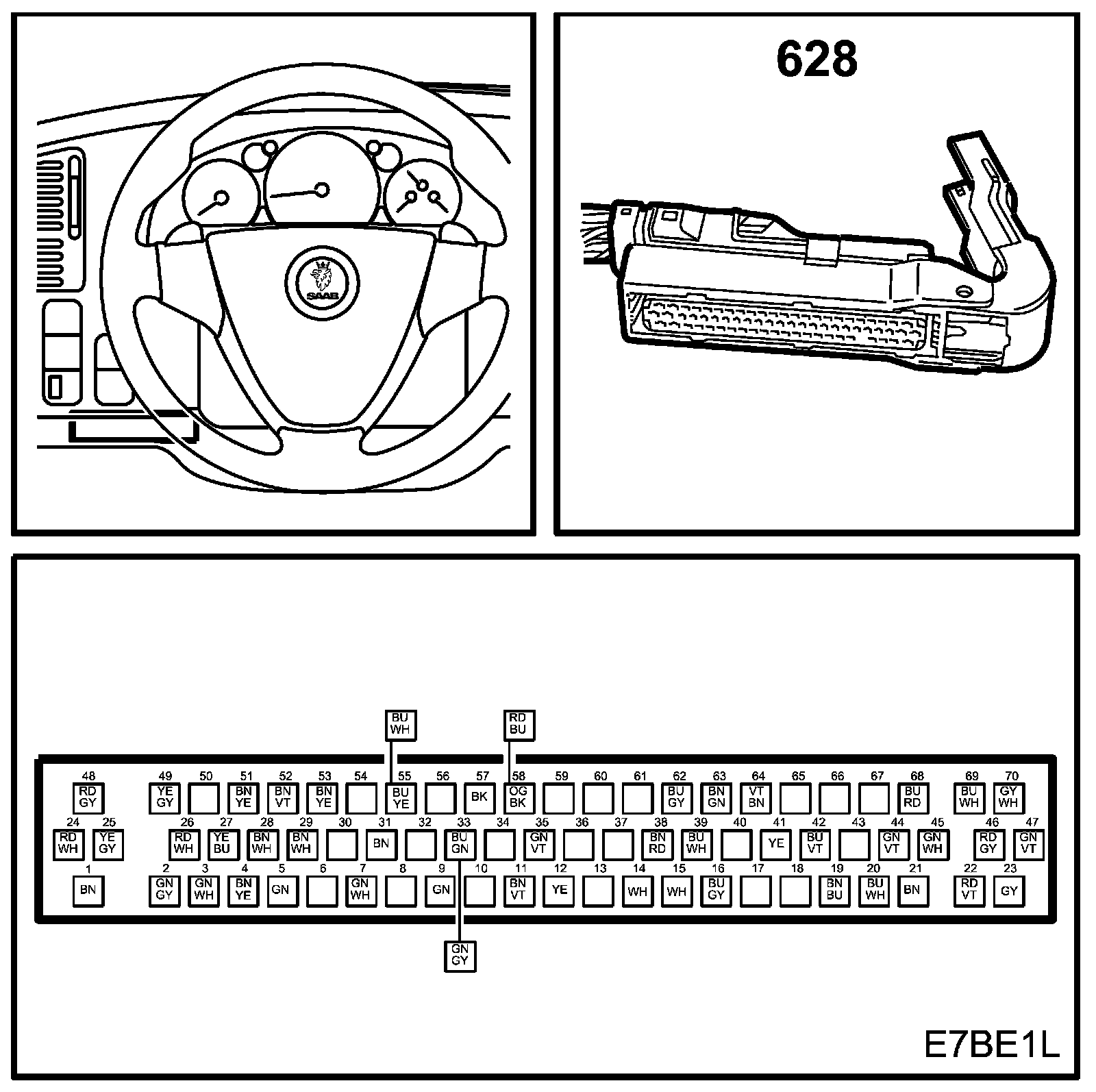

DICE Control Module (628) LHD:

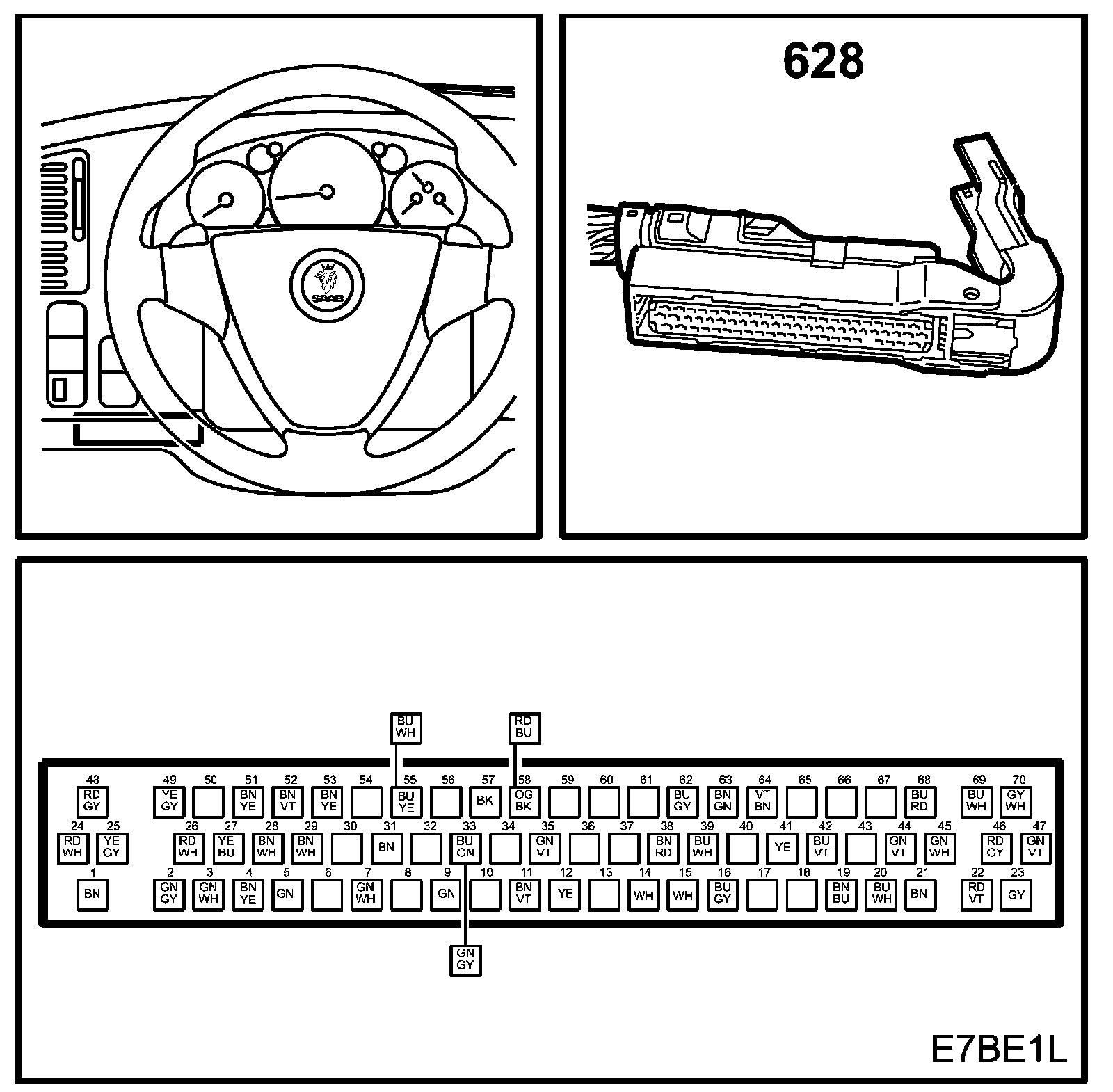

DICE Control Module (628) LHD:
