Power Door Lock Actuator
>>

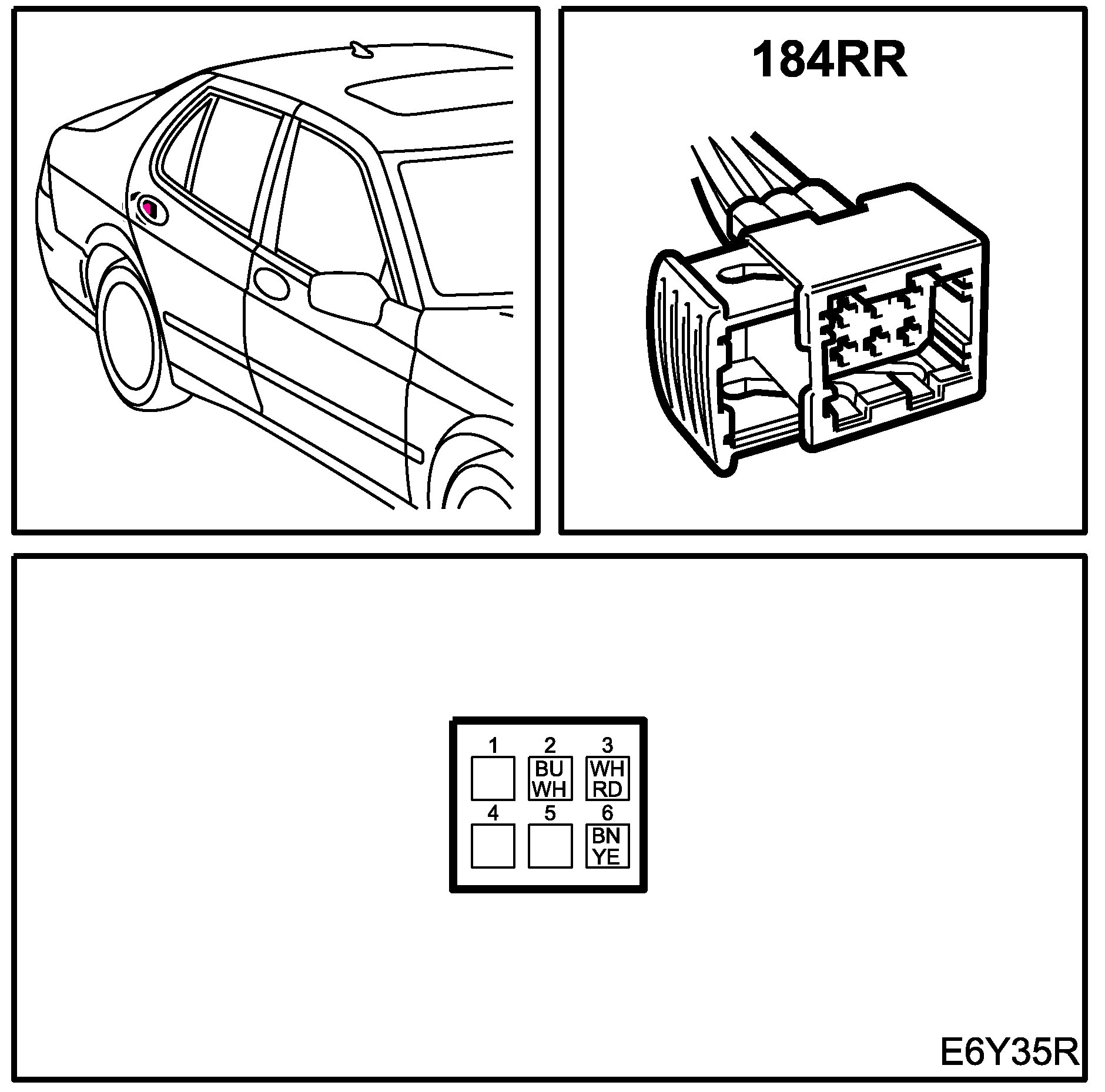

Central Locking System Motor, Rear Right Door (184RR)
Central Locking System Motor, Rear Right Door (184RR)
Central Locking System Motor, Rear Right Door (184RR):
