Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>

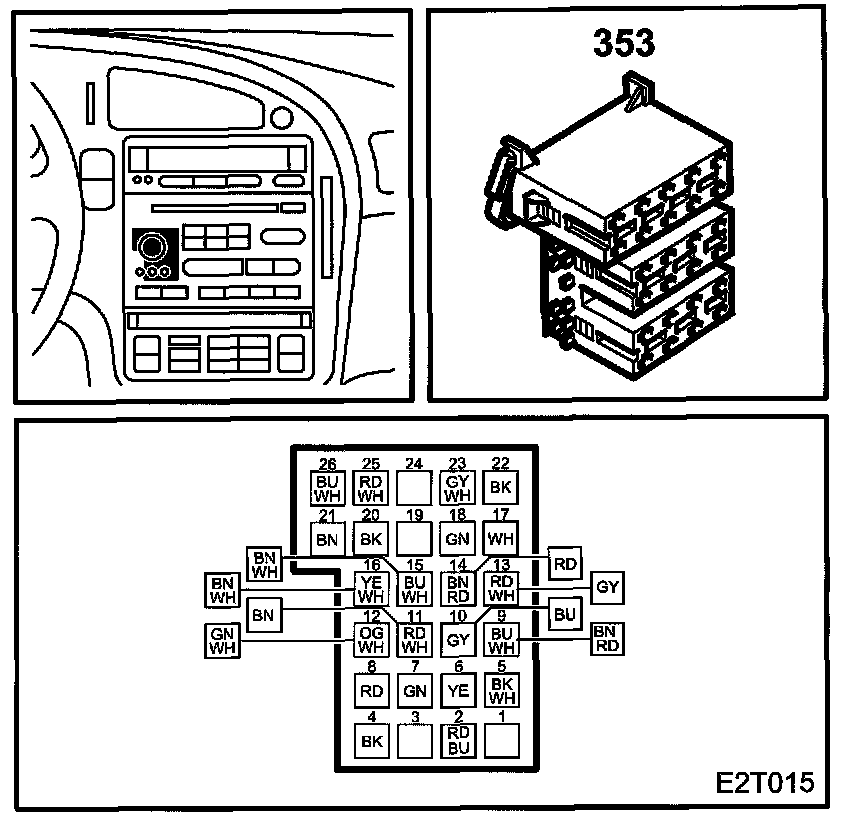

Main Unit, Audio System (353)
>>
Without Navigation System
Without Navigation System
Main Unit, Audio System (353):
