Crimp Connection J2, Front Harness
Crimp Connection J2, Front Harness

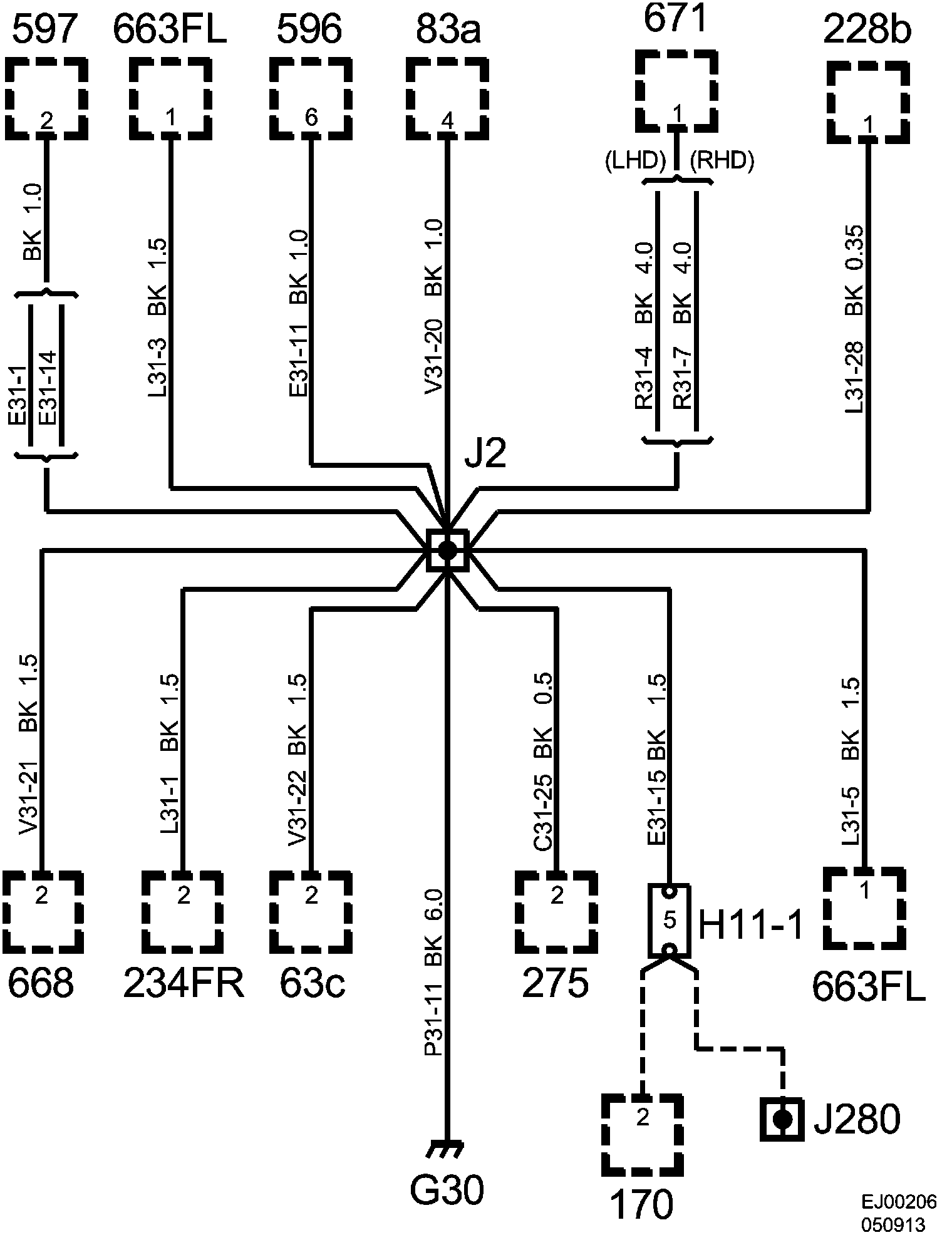

Crimp Connection J2, Front Harness:
