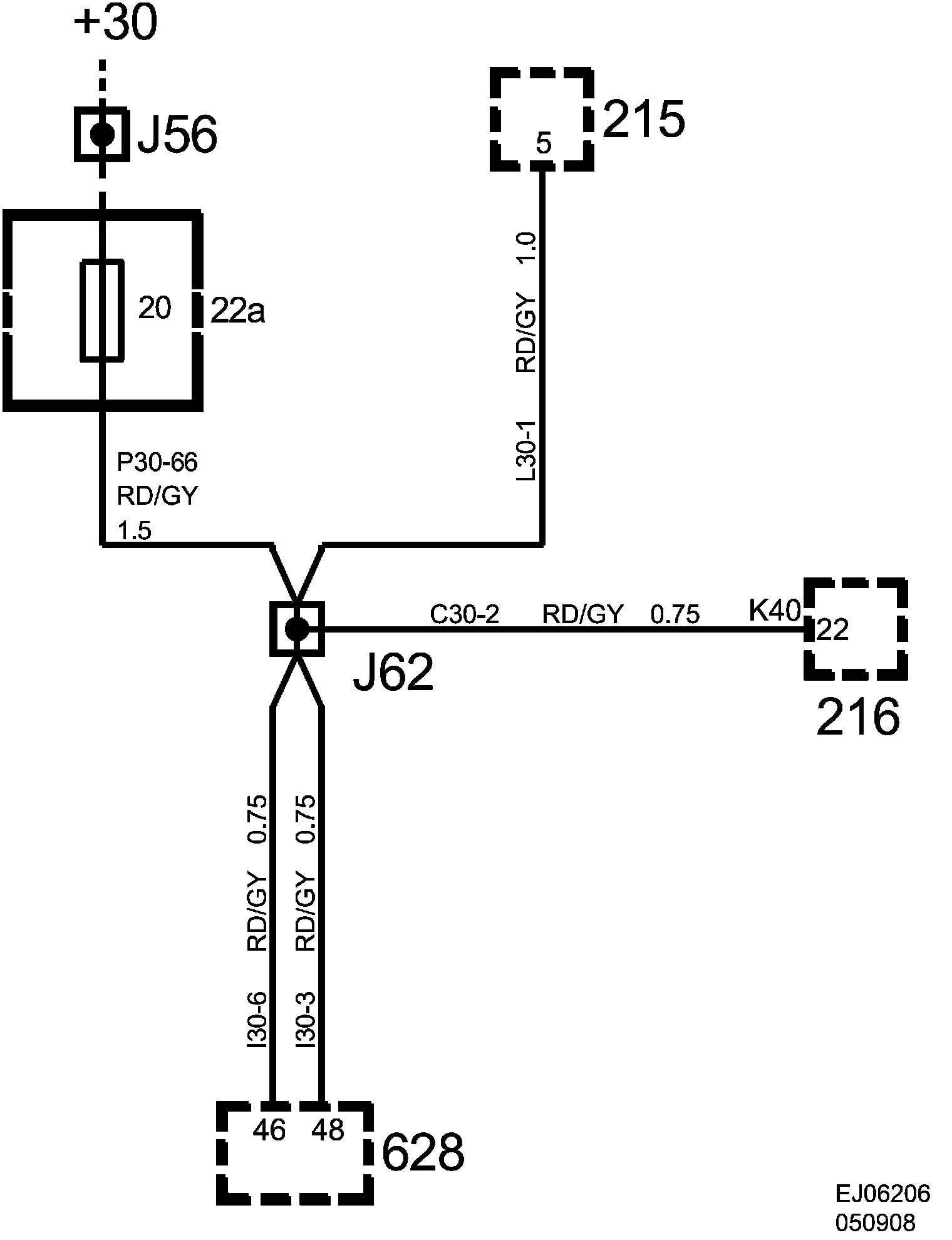

Crimp Connection J62, Instrument Harness
Crimp Connection J62, Instrument Harness
Crimp Connection J62, Instrument Harness:
