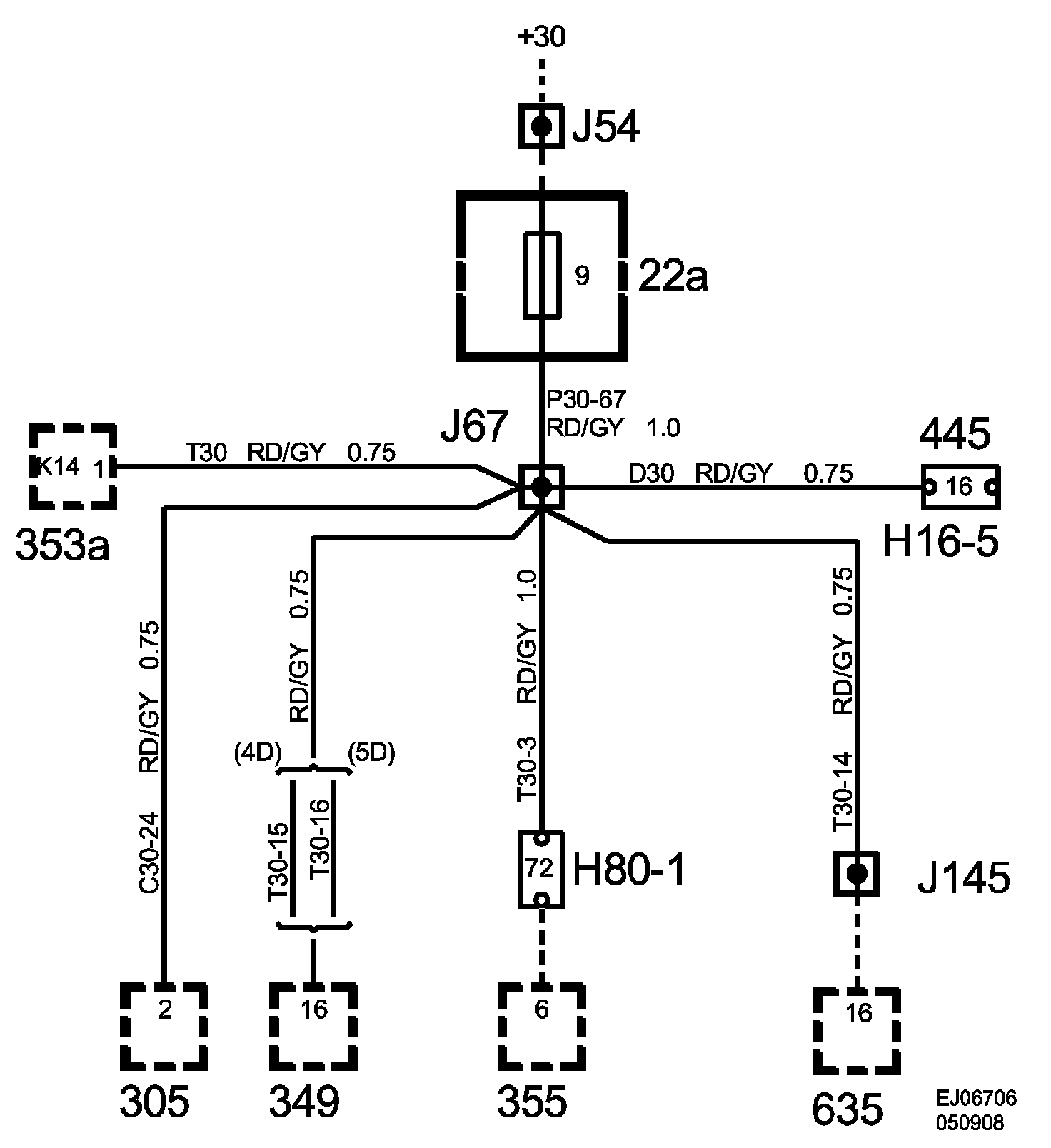

Crimp Connection J67, Instrument Harness

Crimp Connection J67, Instrument Harness:

Diagram Legend (List Of Components): The names of the components shown on this diagram can be determined via their numbers at vehicle level component locations/List of Components by Component Number. Component Locations
