Grounding Point G24
Grounding Point G24

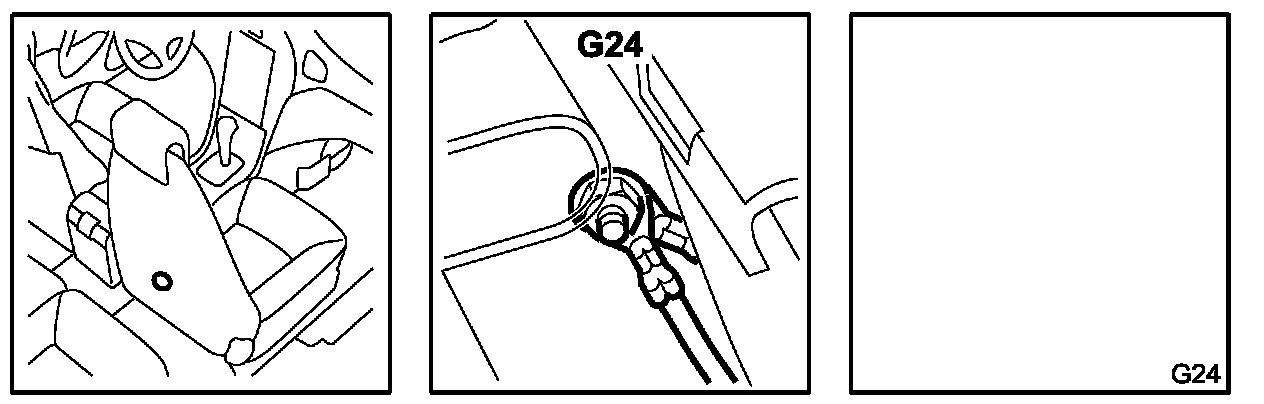

Location:
On seat member under RH seat.

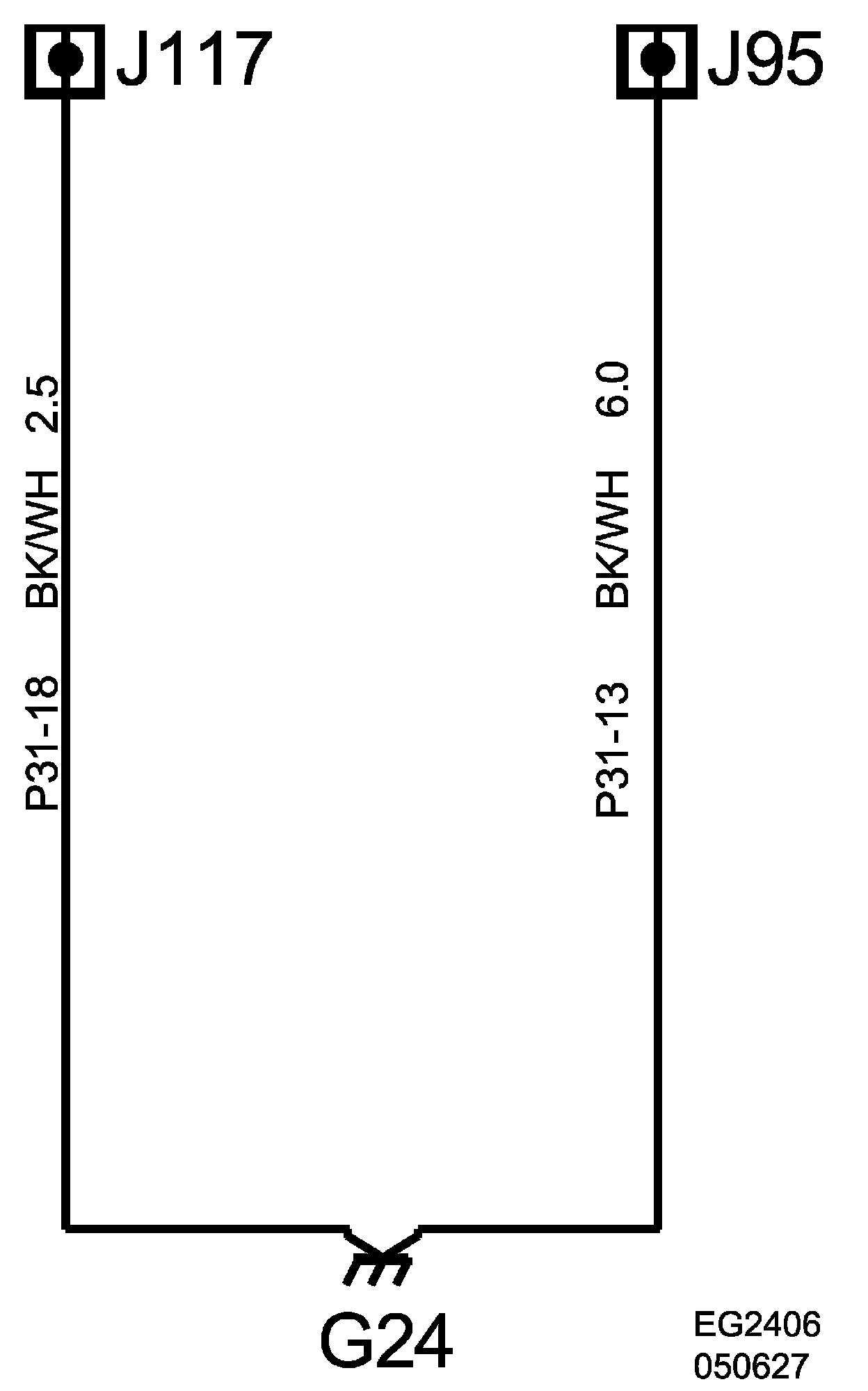

Grounding Point G24:

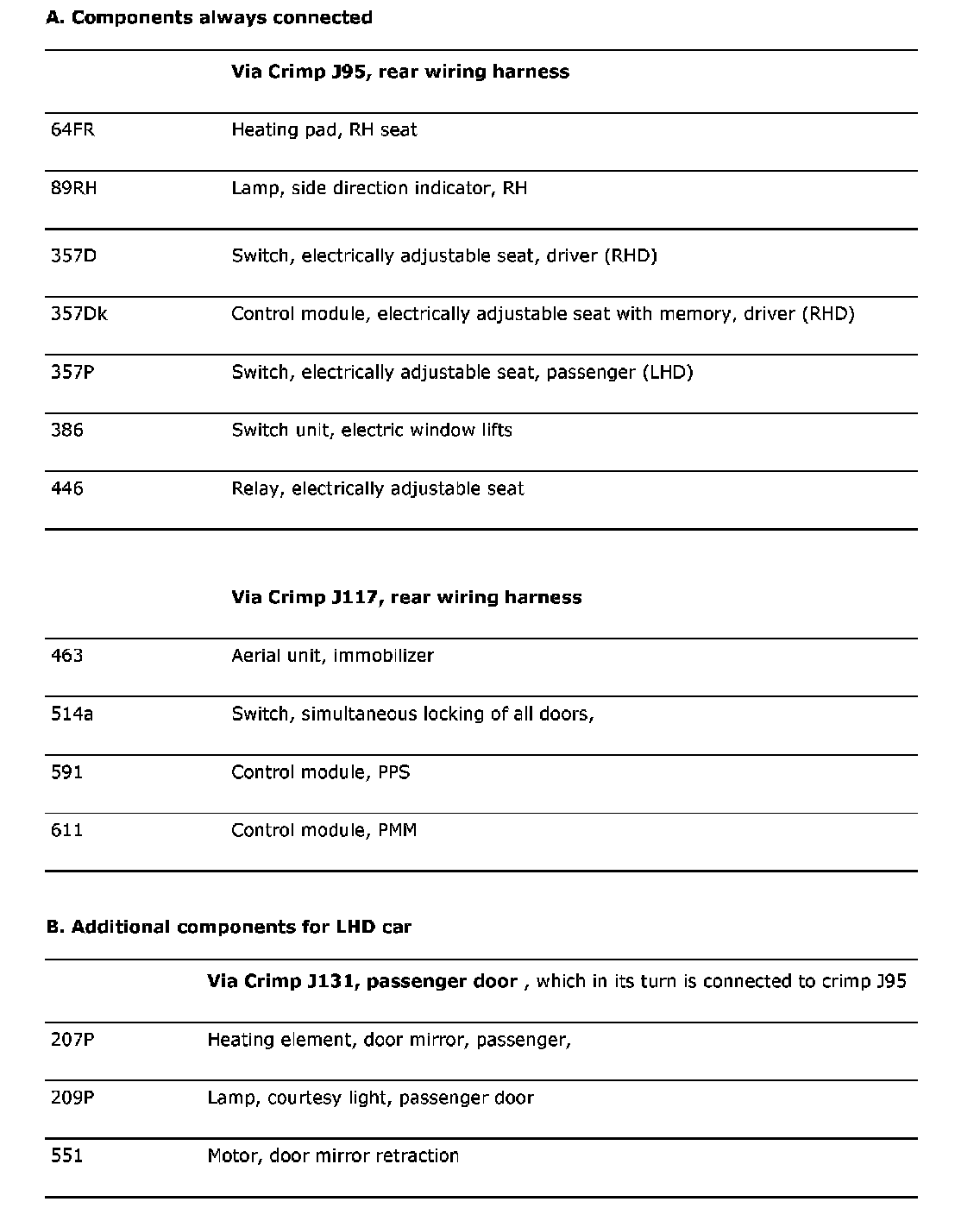

Components Always Connected:
