Grounding Point G31
Grounding Point G31

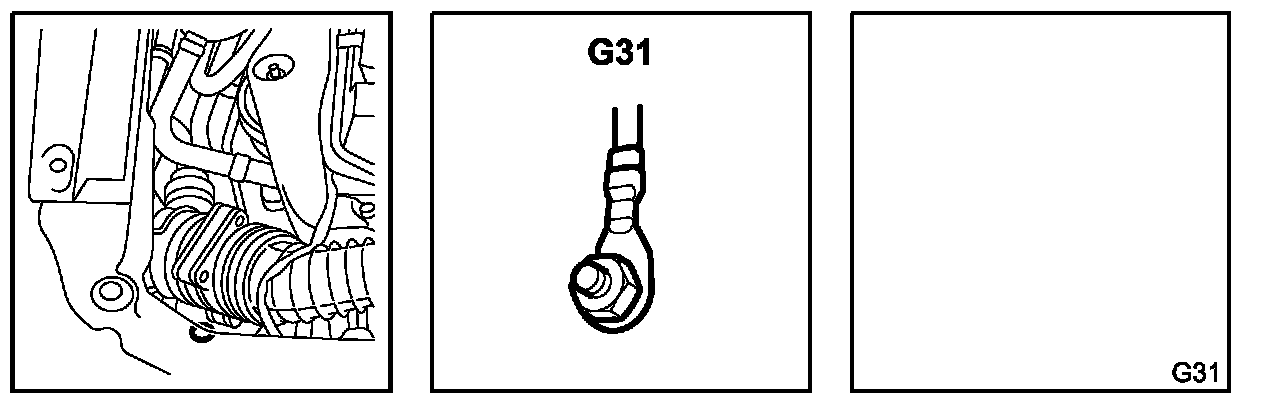

Location:
On the RH structural member behind the headlamp.

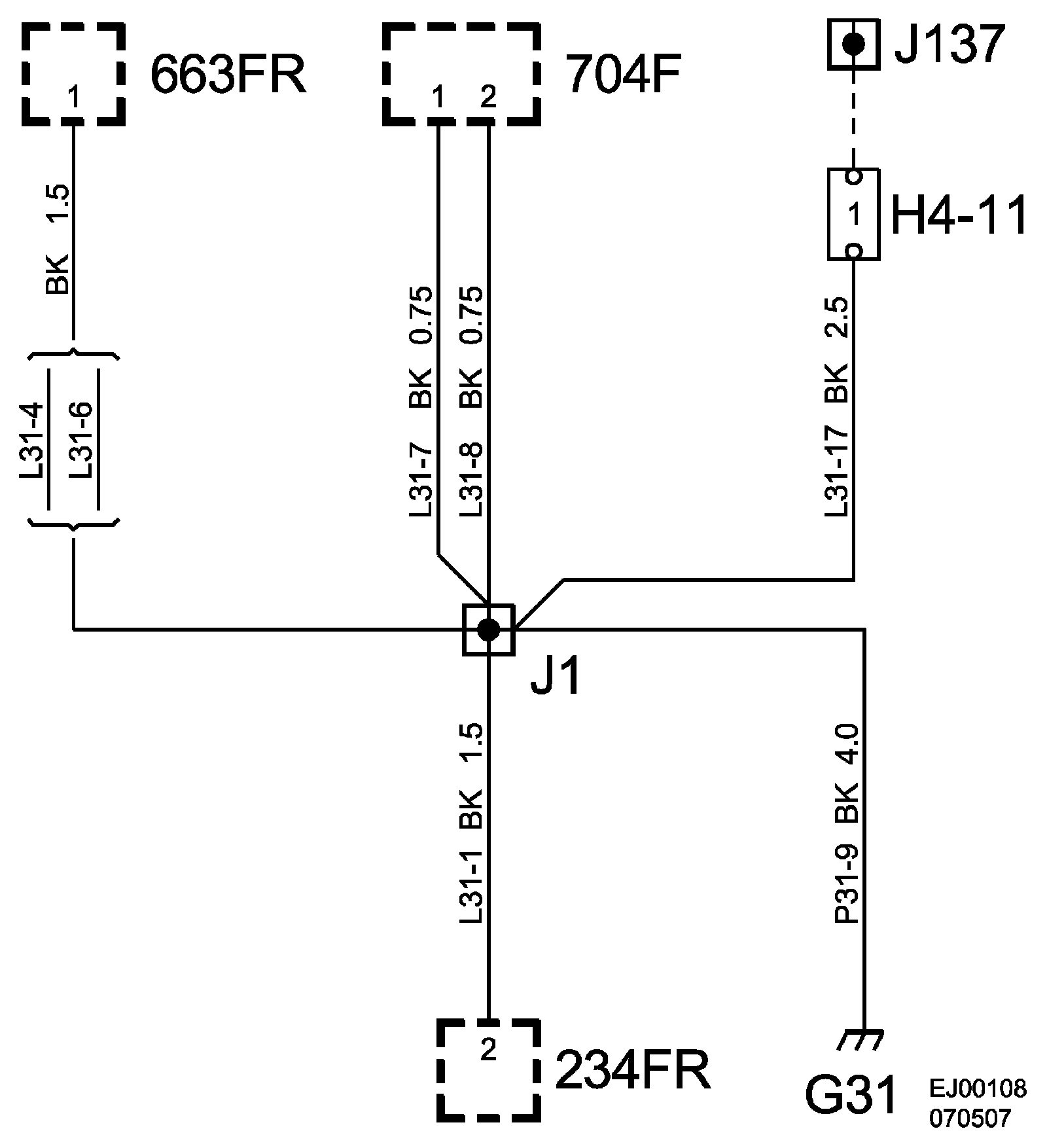

Grounding Point G31:

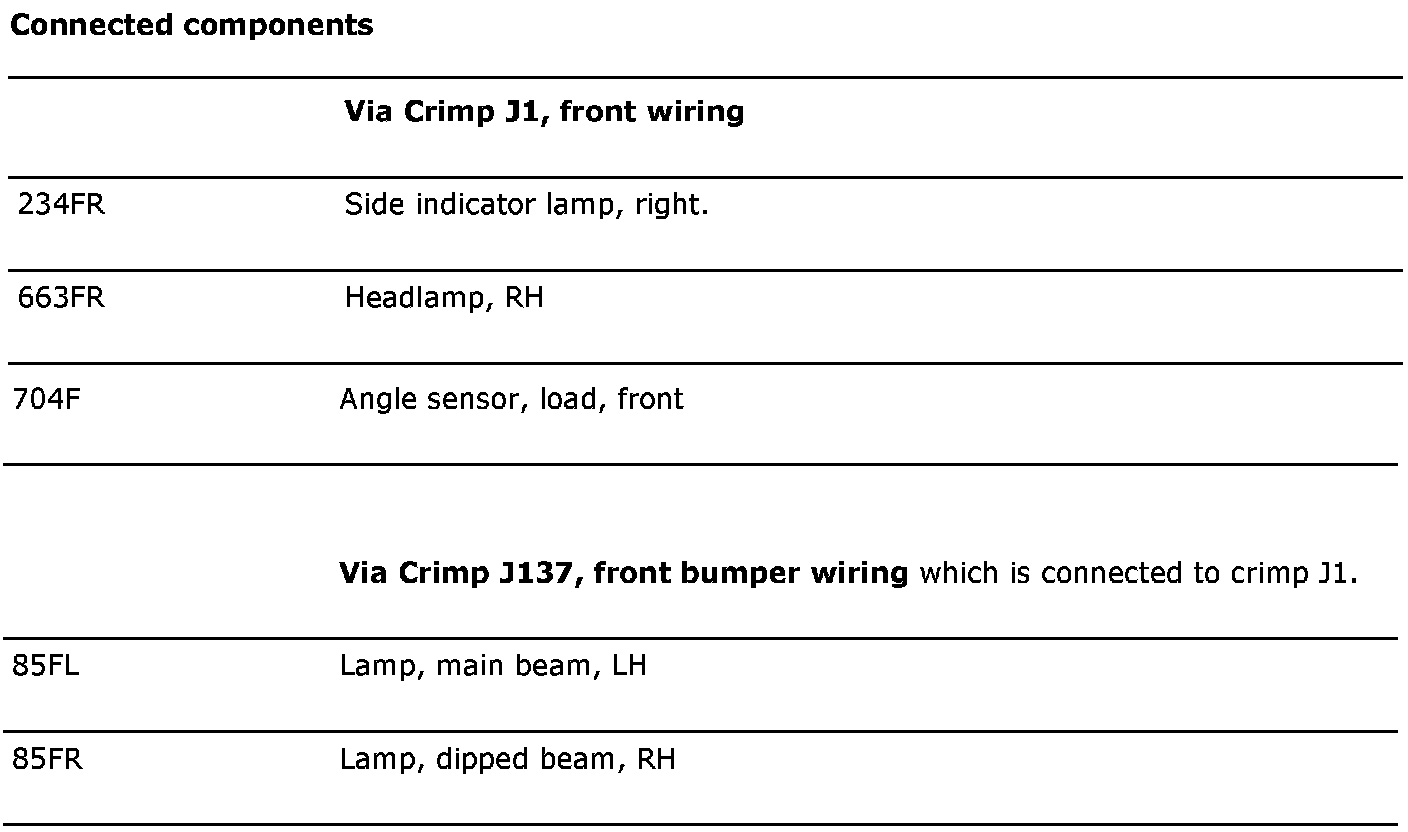

Connected Components:
