Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounding Point G33
Grounding Point G33
Location:
Below left-hand A pillar.
Grounding Point G33:

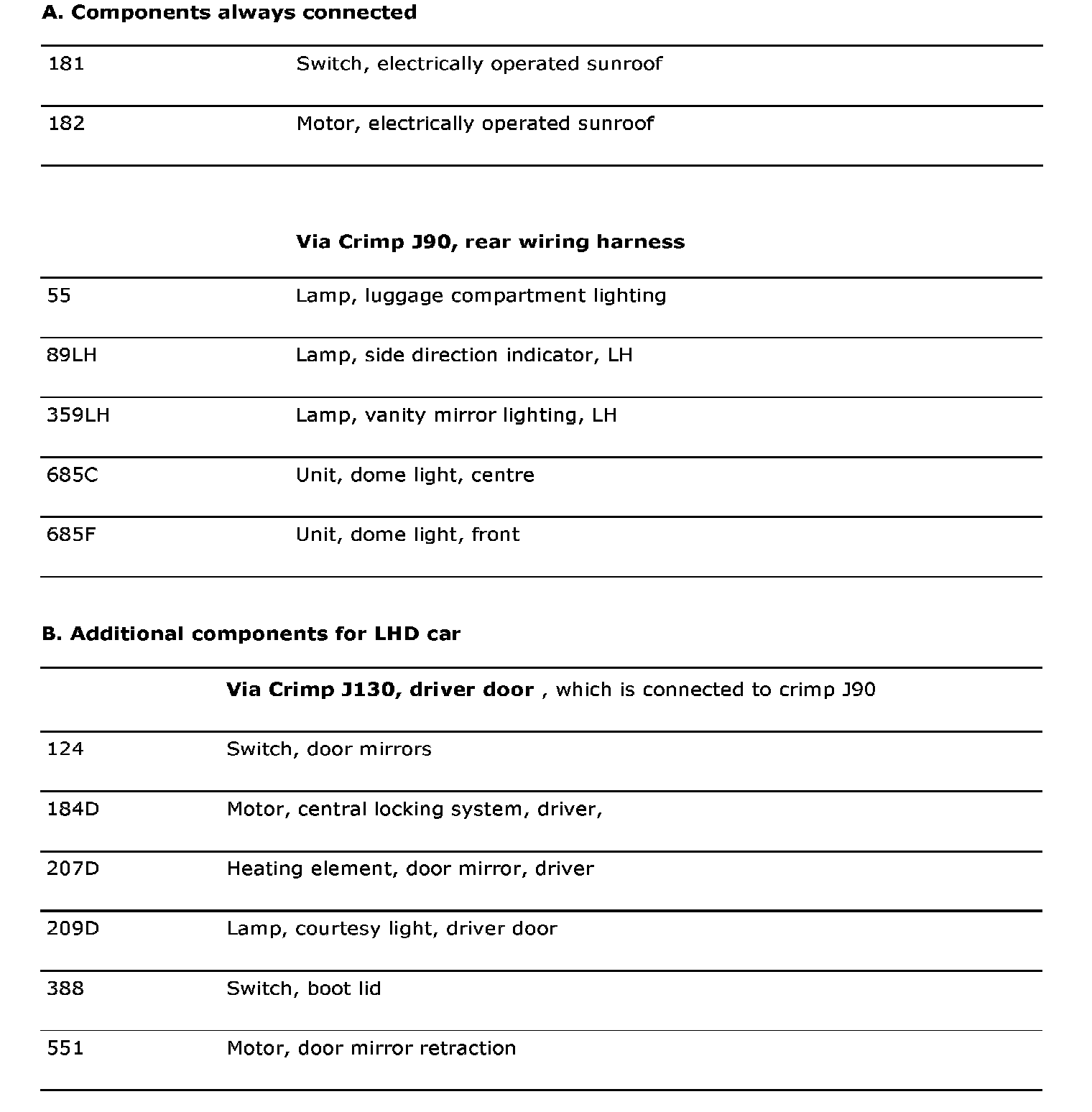

Components Always Connected:
