Warning Lamp, Handbrake

Warning Lamp, Handbrake

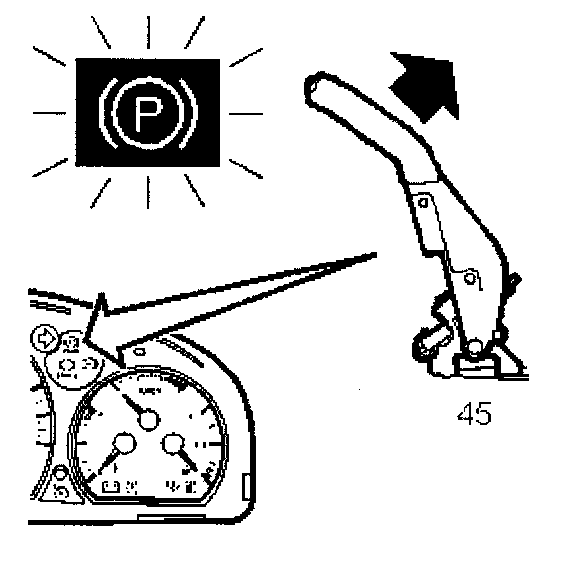

The handbrake warning lamp is situated on the RH side of the main instrument unit and informs the driver if the handbrake is applied.

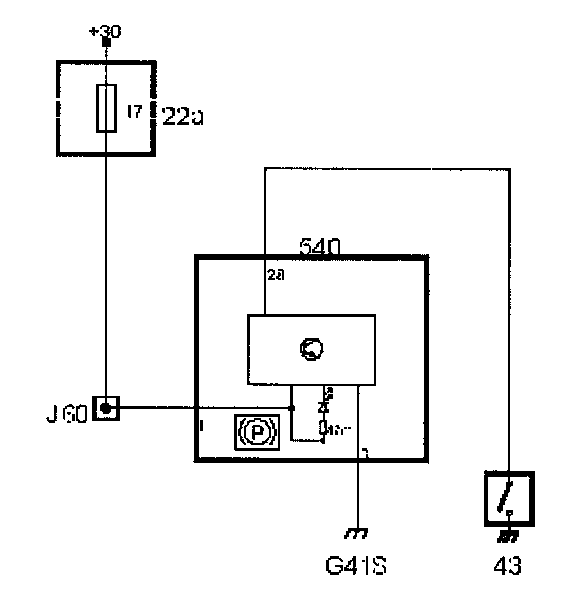

When the handbrake is applied, pin 28 on the MIU is grounded by the switch on the handbrake lever, which causes the control module to turn on the lamp.


If the car speed exceeds 5 km/h from a speed less than 5 km/h with the handbrake applied, the MIU sends a message to the SID control module requesting an acoustic signal.


Diagnosis


The function has no diagnostics.
