Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Lamp
>>
Diagrams
>>
Connector Views
>>
Lamp, RH Brake Light (30RR)
>>
4D
4D

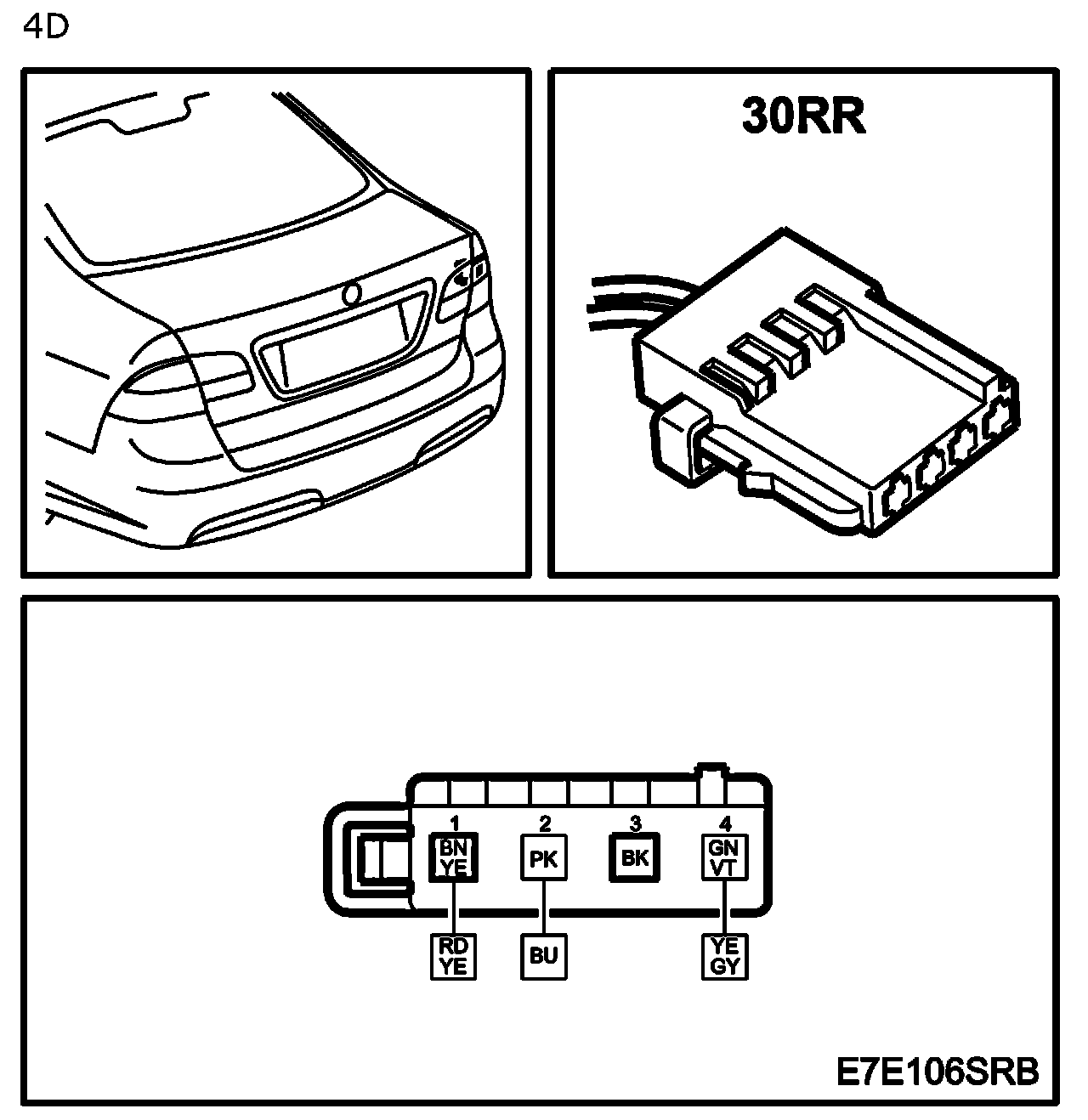

Lamp, RH Brake Light (30RR), 4D:
