Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>
Grounding Point G2
Grounding Point G2

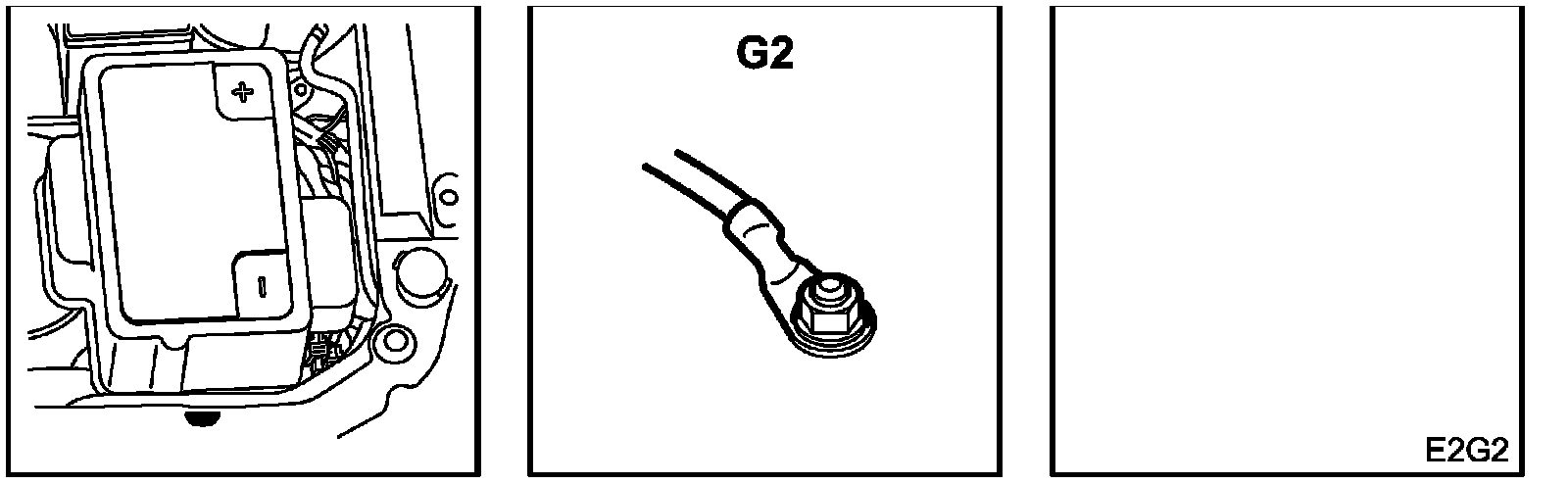

Location:
Left-hand structural member behind headlamp (battery ground).

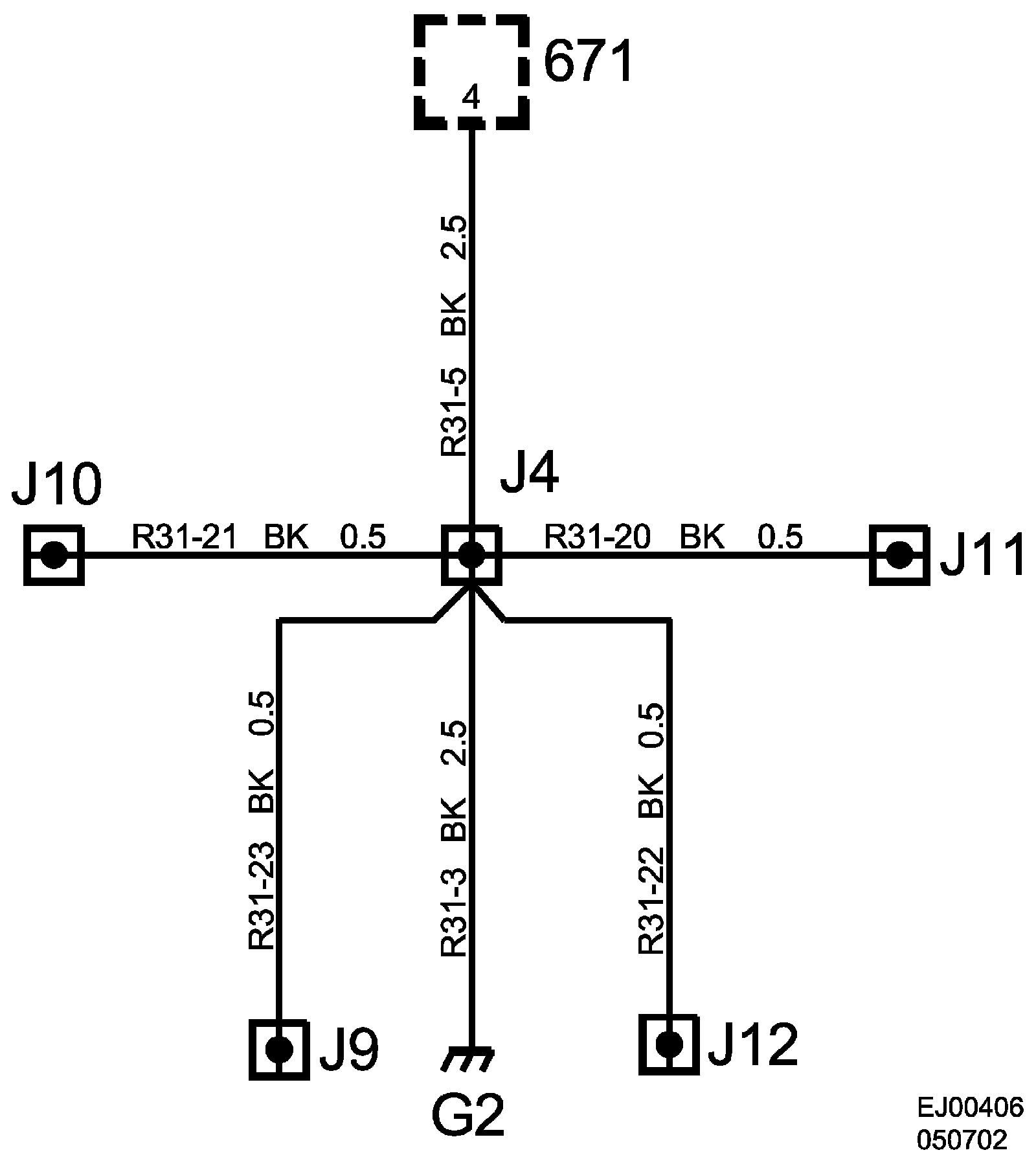

Grounding Point G2:

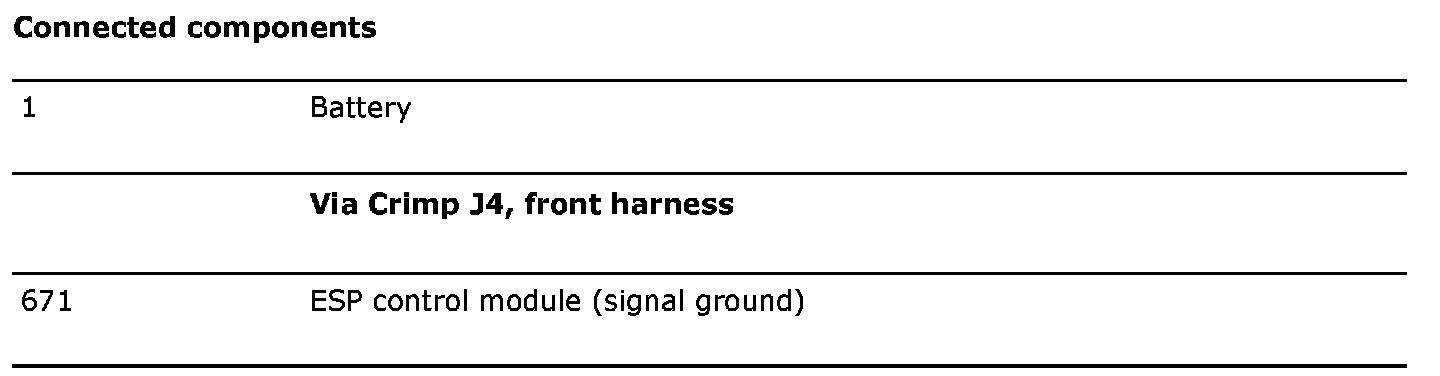

Connected Components:
