Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>
Grounding Point G3
Grounding Point G3
Location:
In luggage compartment under LH light cluster.
Grounding Point G3:

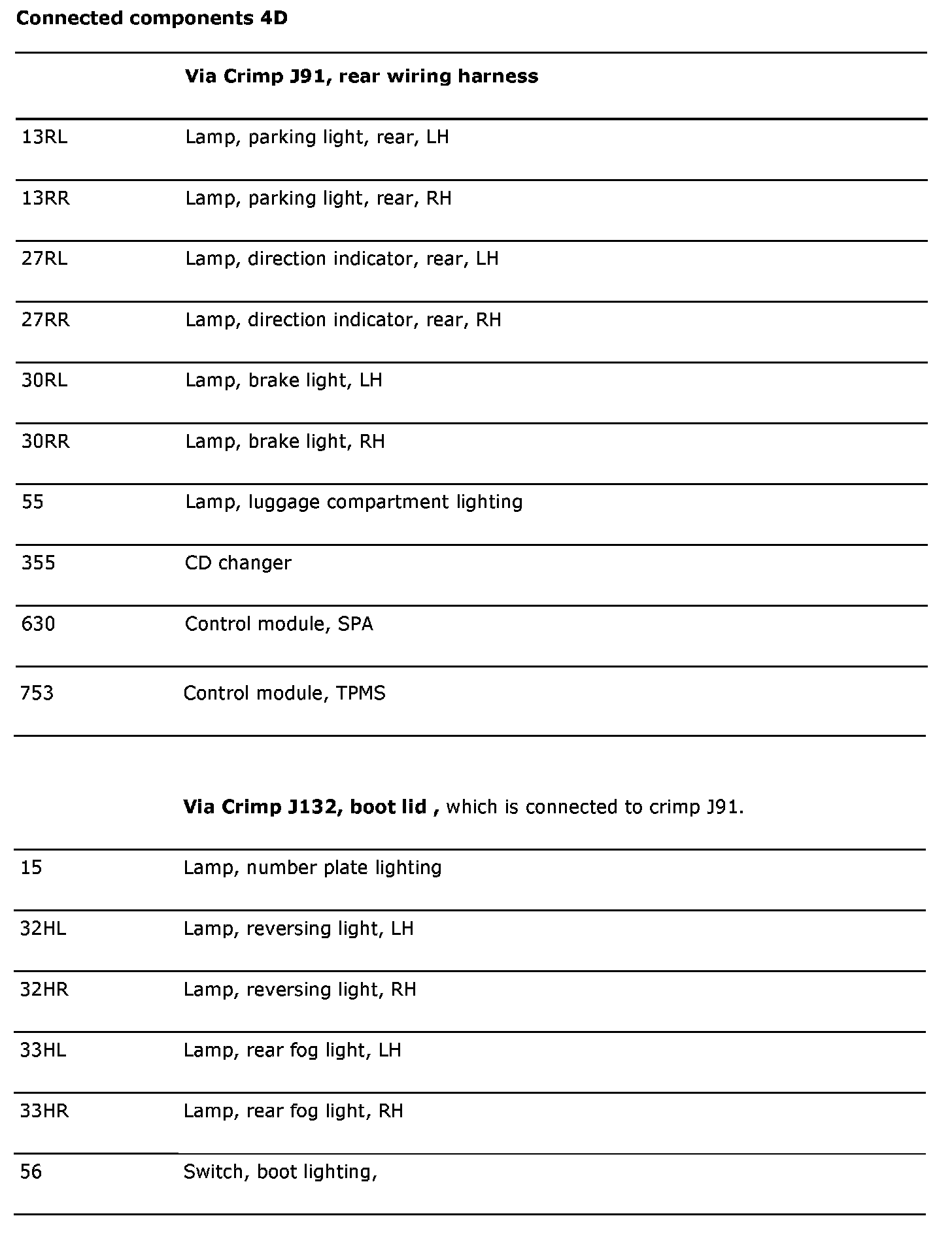

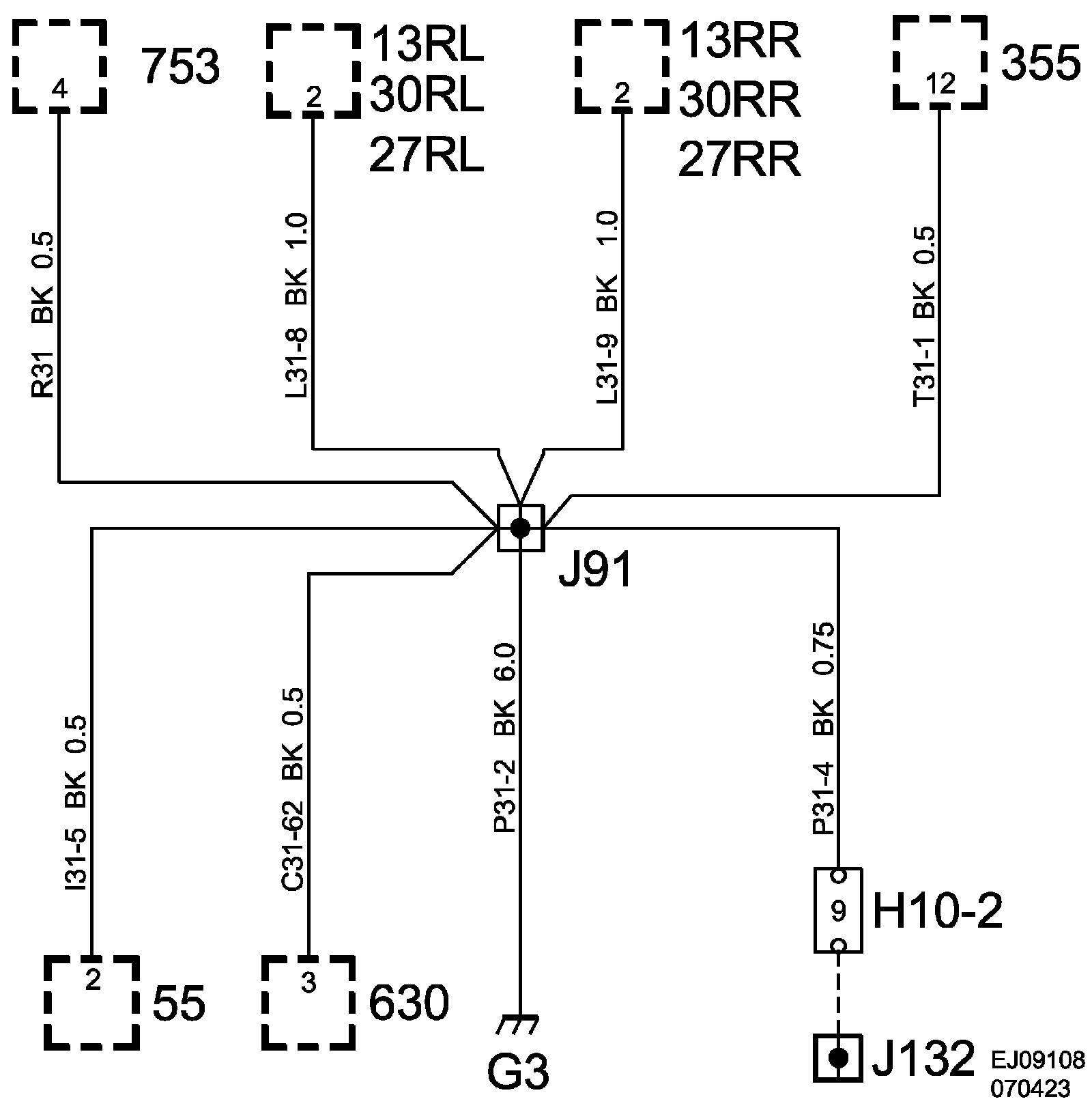

Connected Components 4D:

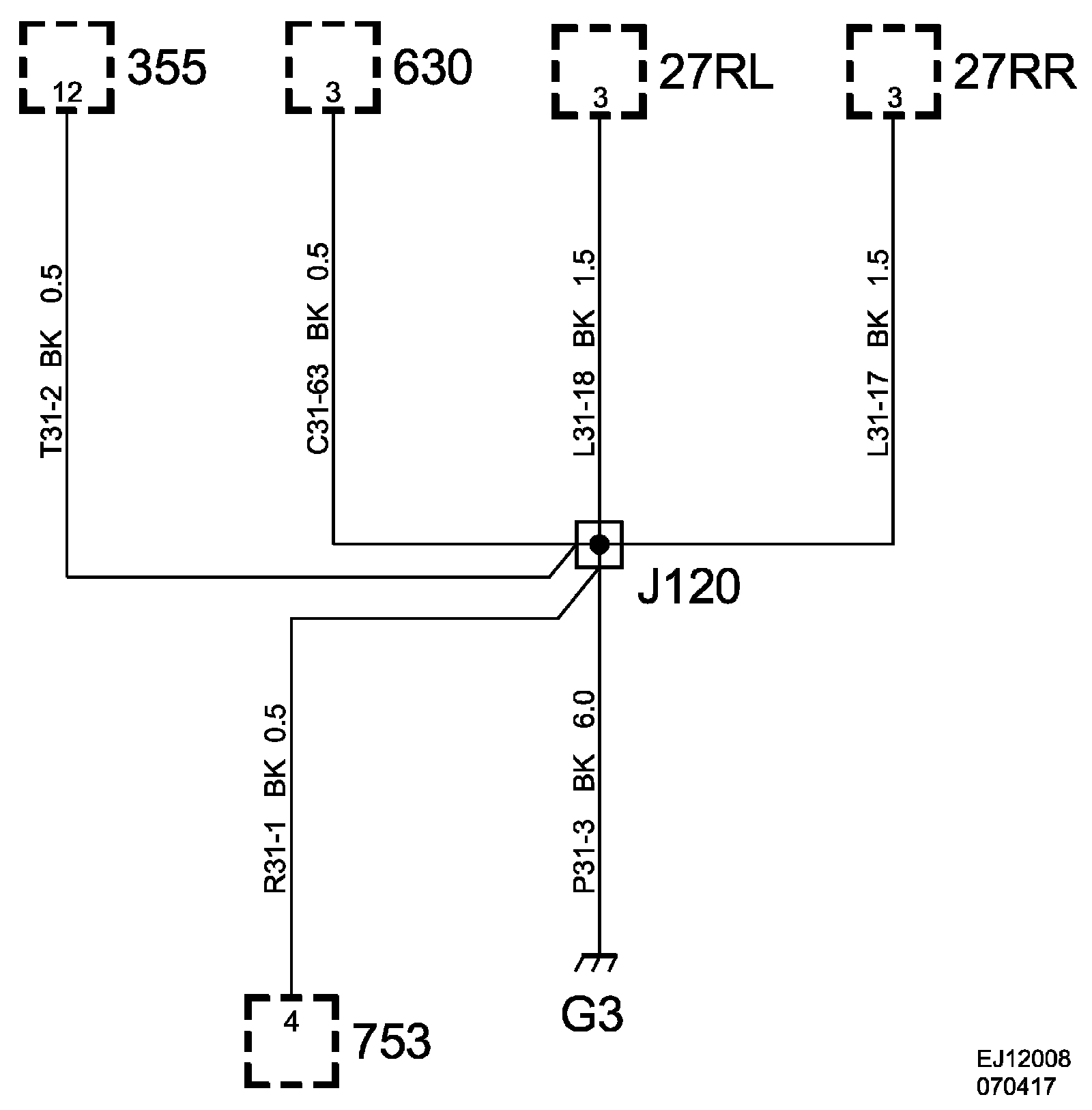

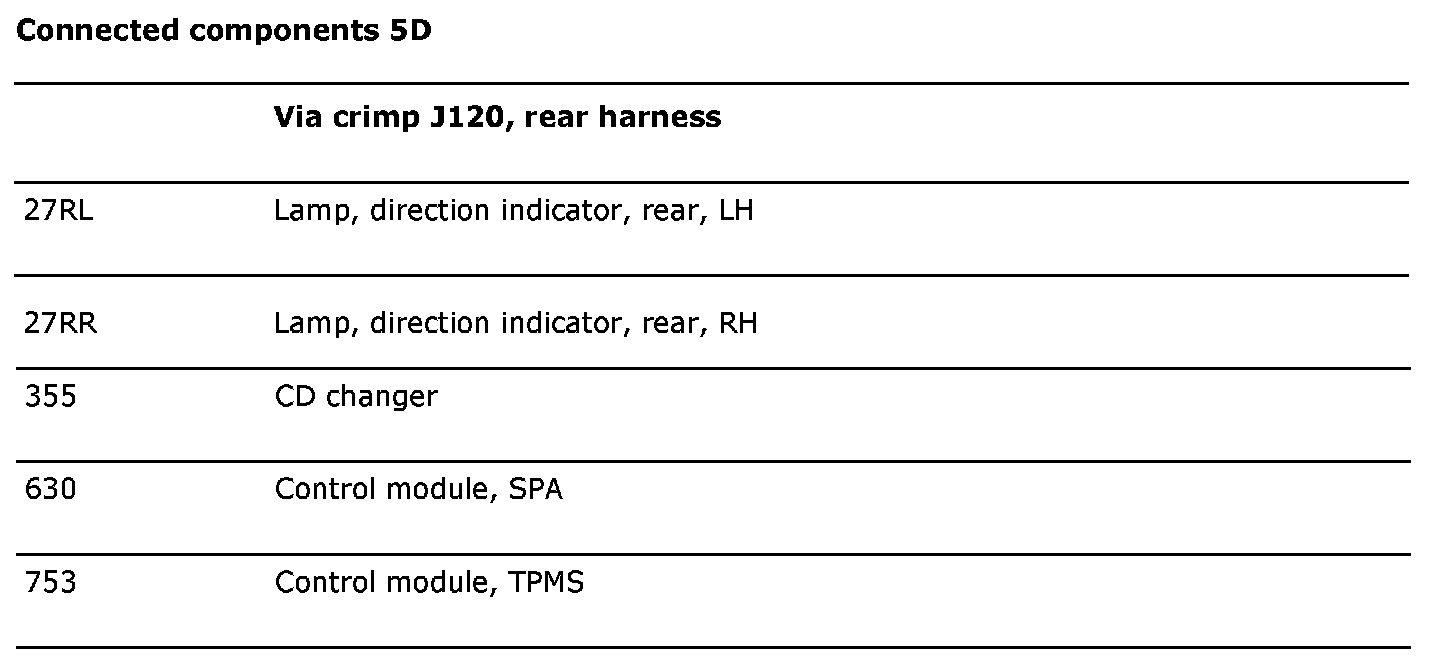

Connected Components 5D:
