Main Fuse Board 22a In the Dashboard

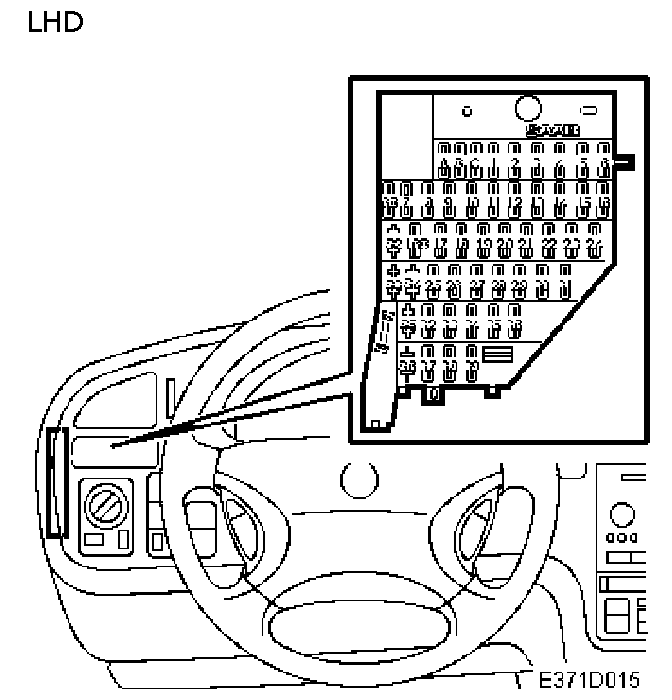

Location: On the short side of dashboard beside driver's door

Upper socket is input current.

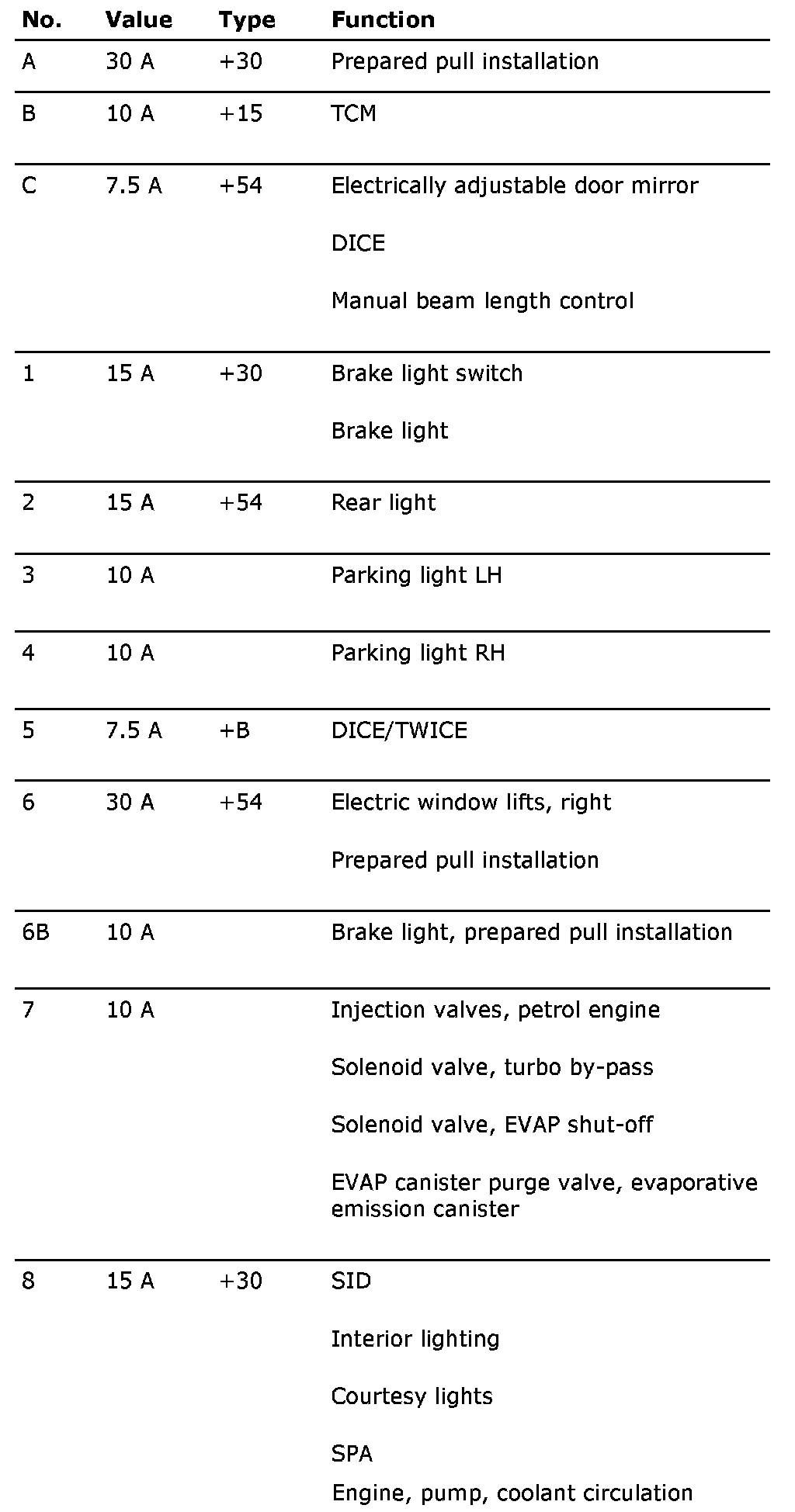

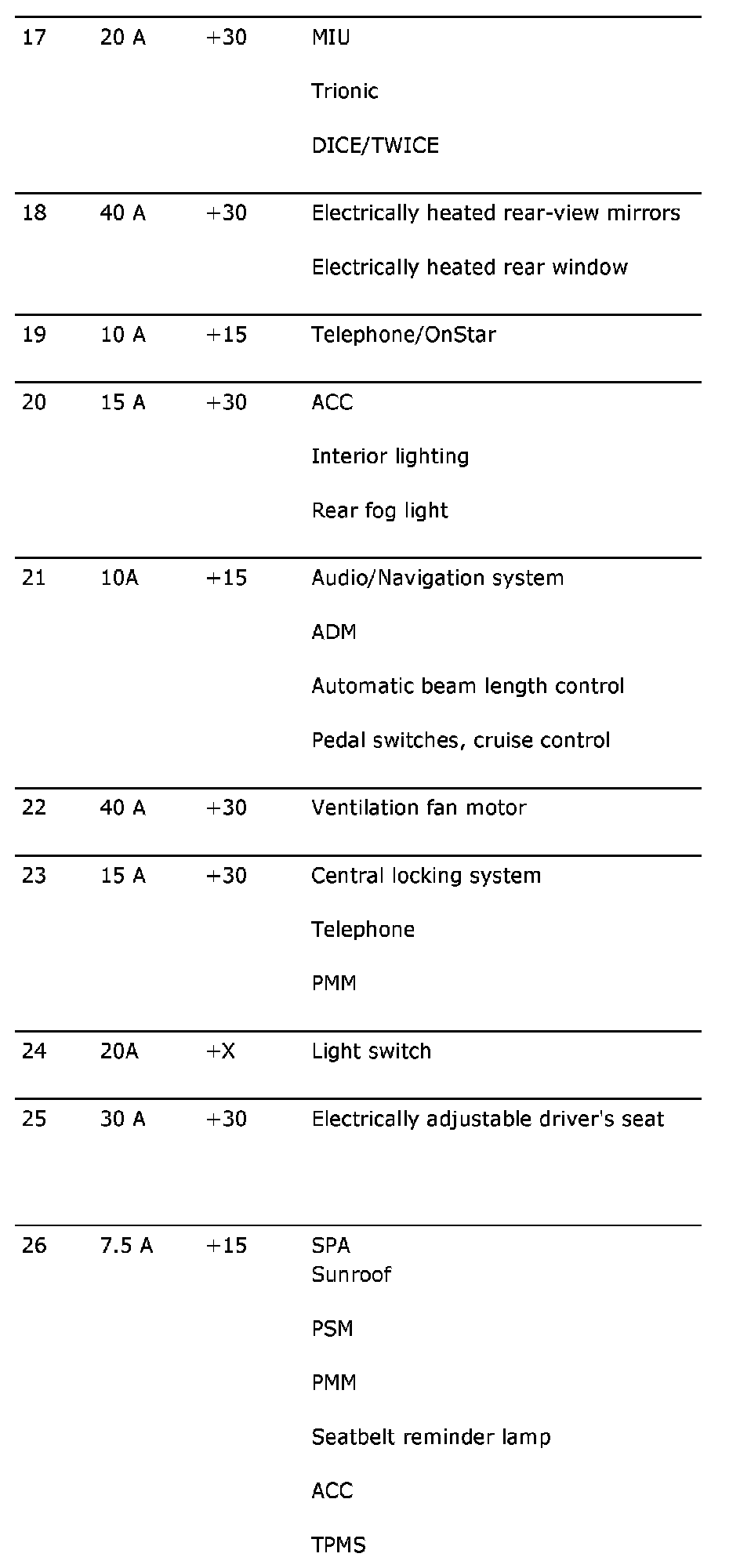

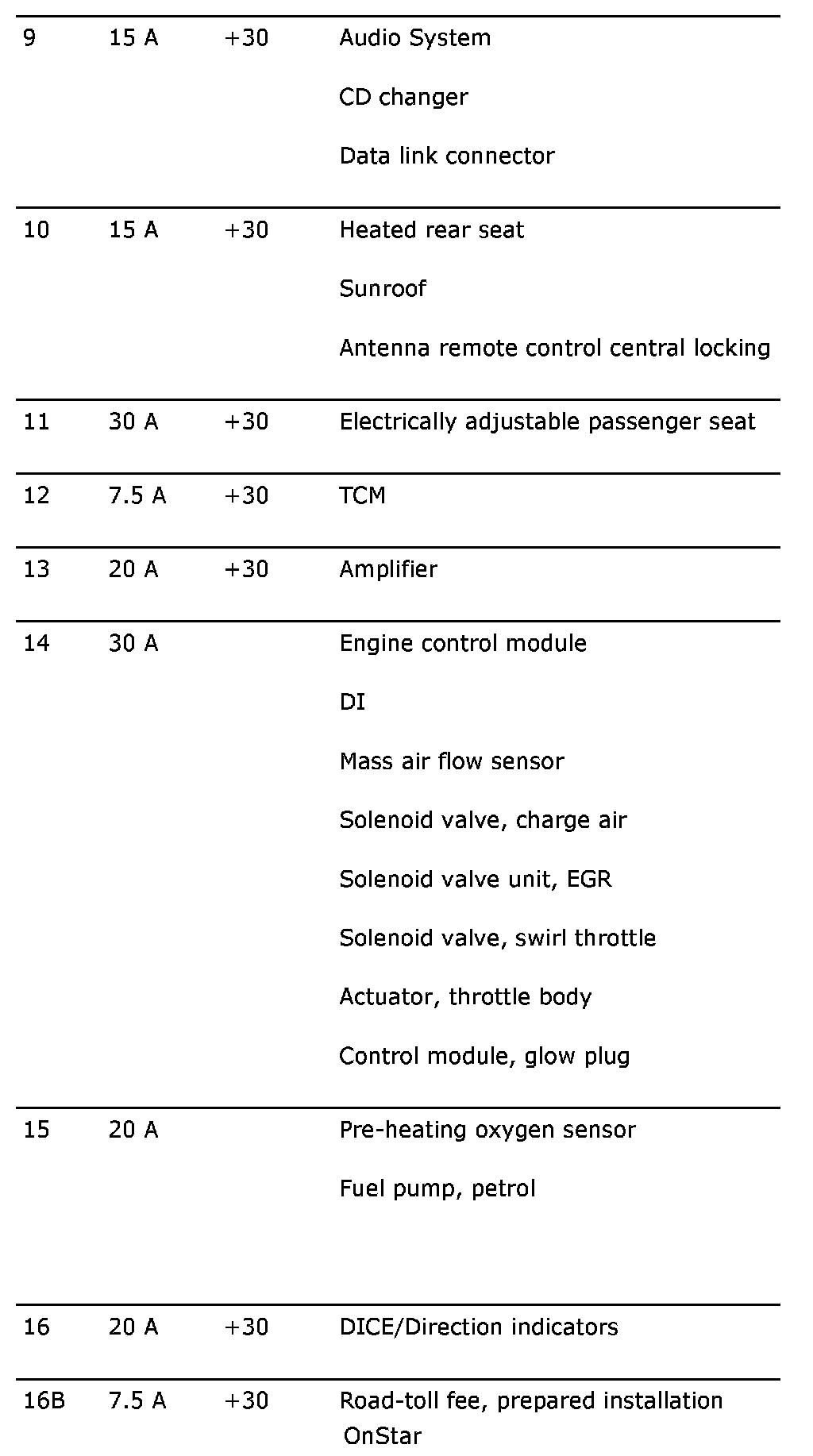

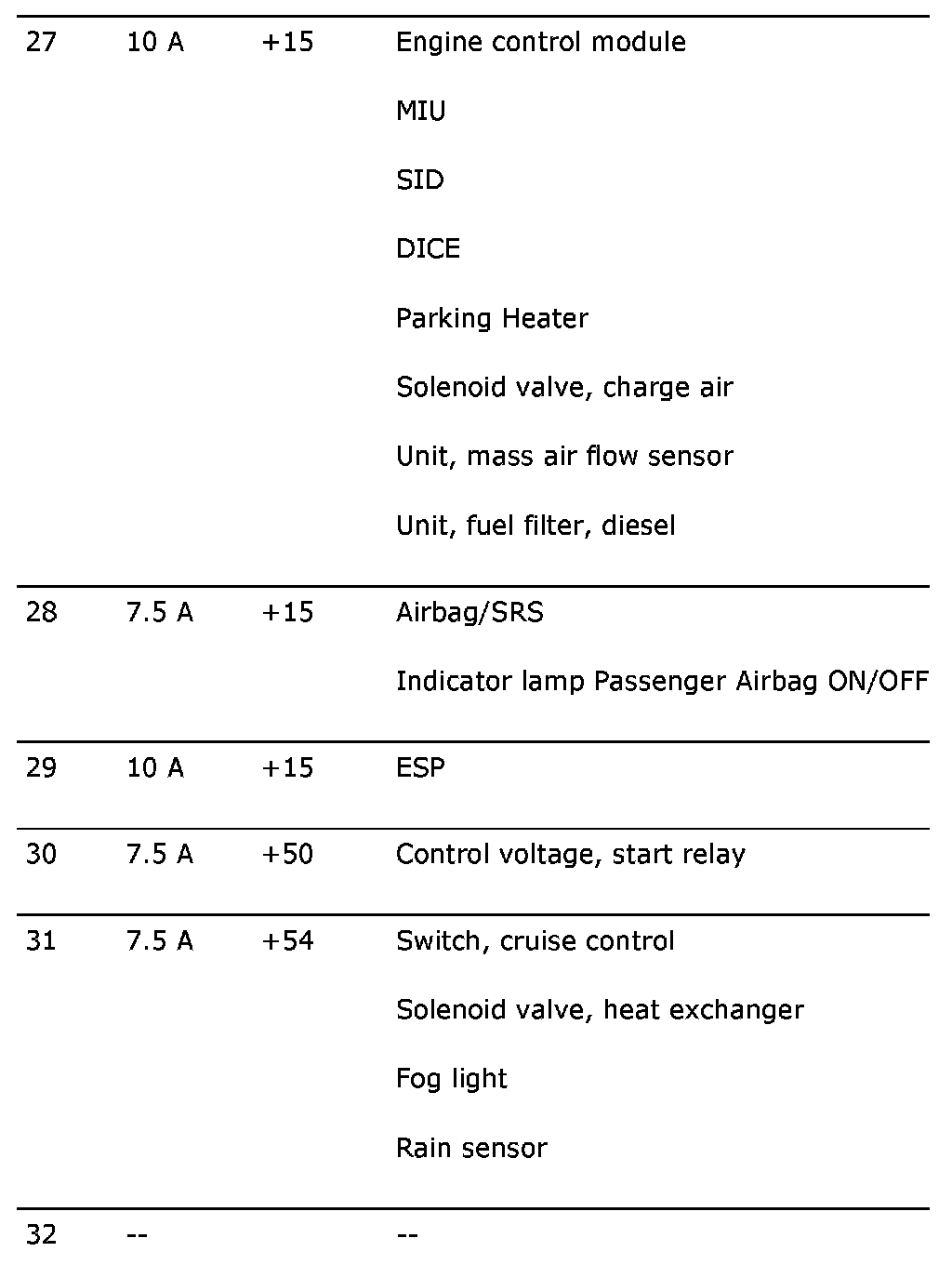

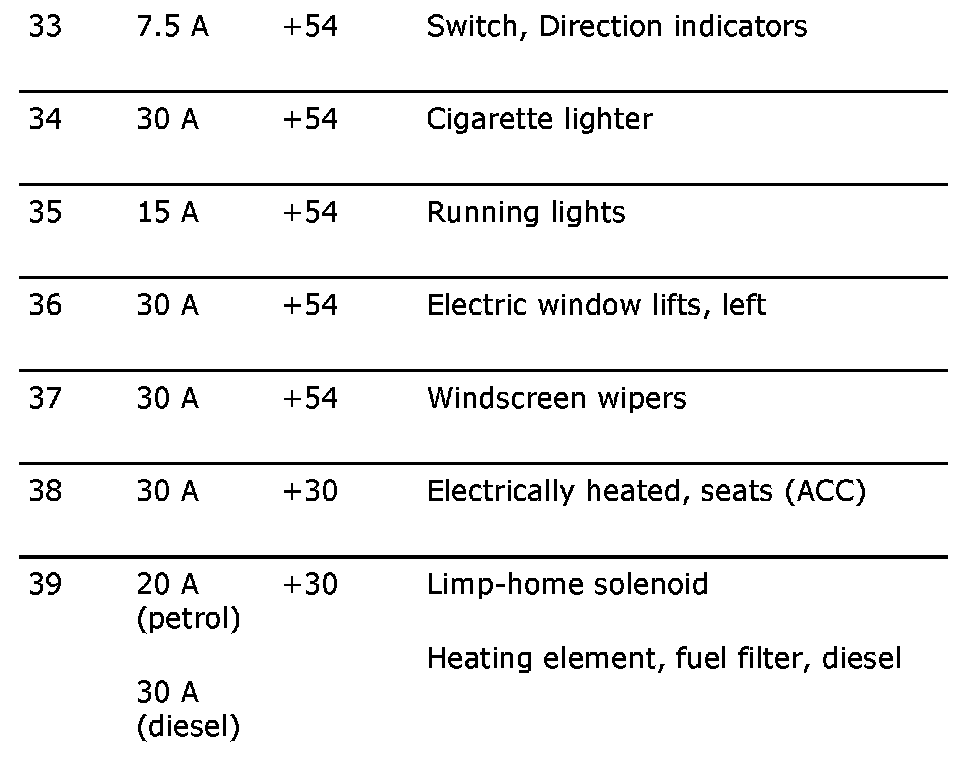

Main Fuse Board 22a In The Dash Board:
