Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Crimps (Splices)
>>

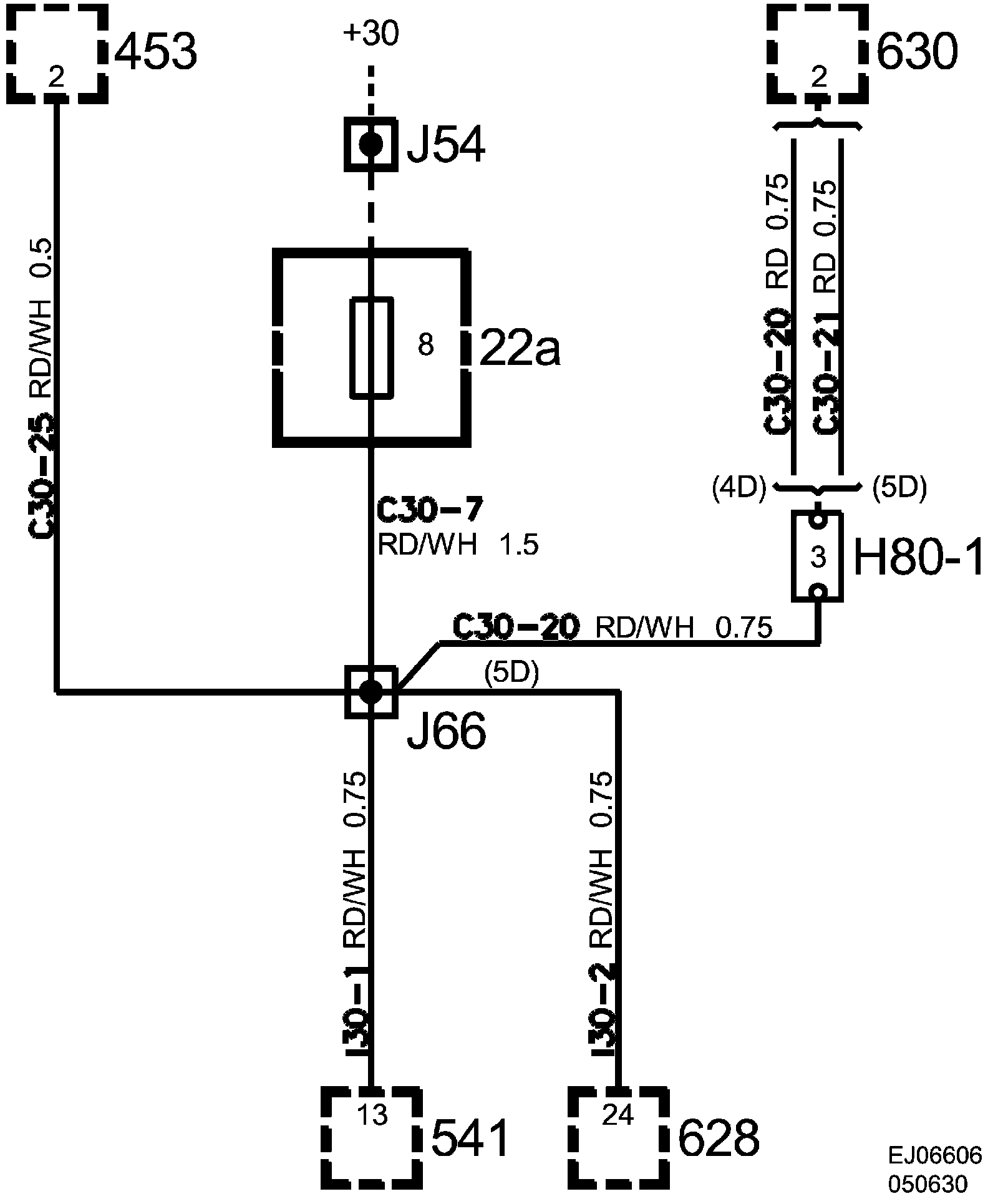

Crimp J66, Instrument Harness
Crimp J66, Instrument Harness
Crimp J66, Instrument Harness:
