Grounding Point G3
Grounding Point G3
Location:
In luggage compartment under LH light cluster.
Grounding Point G3:

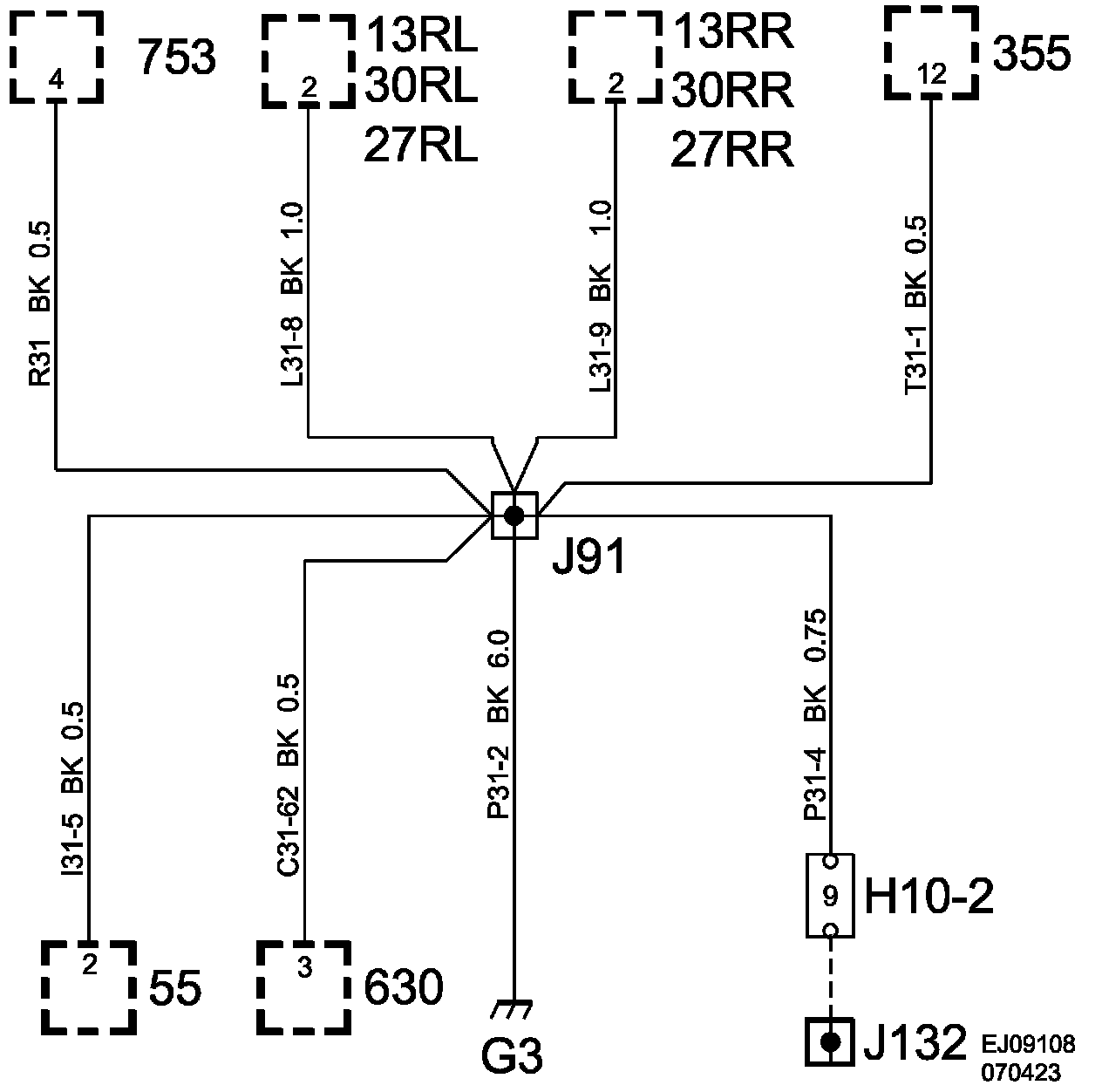

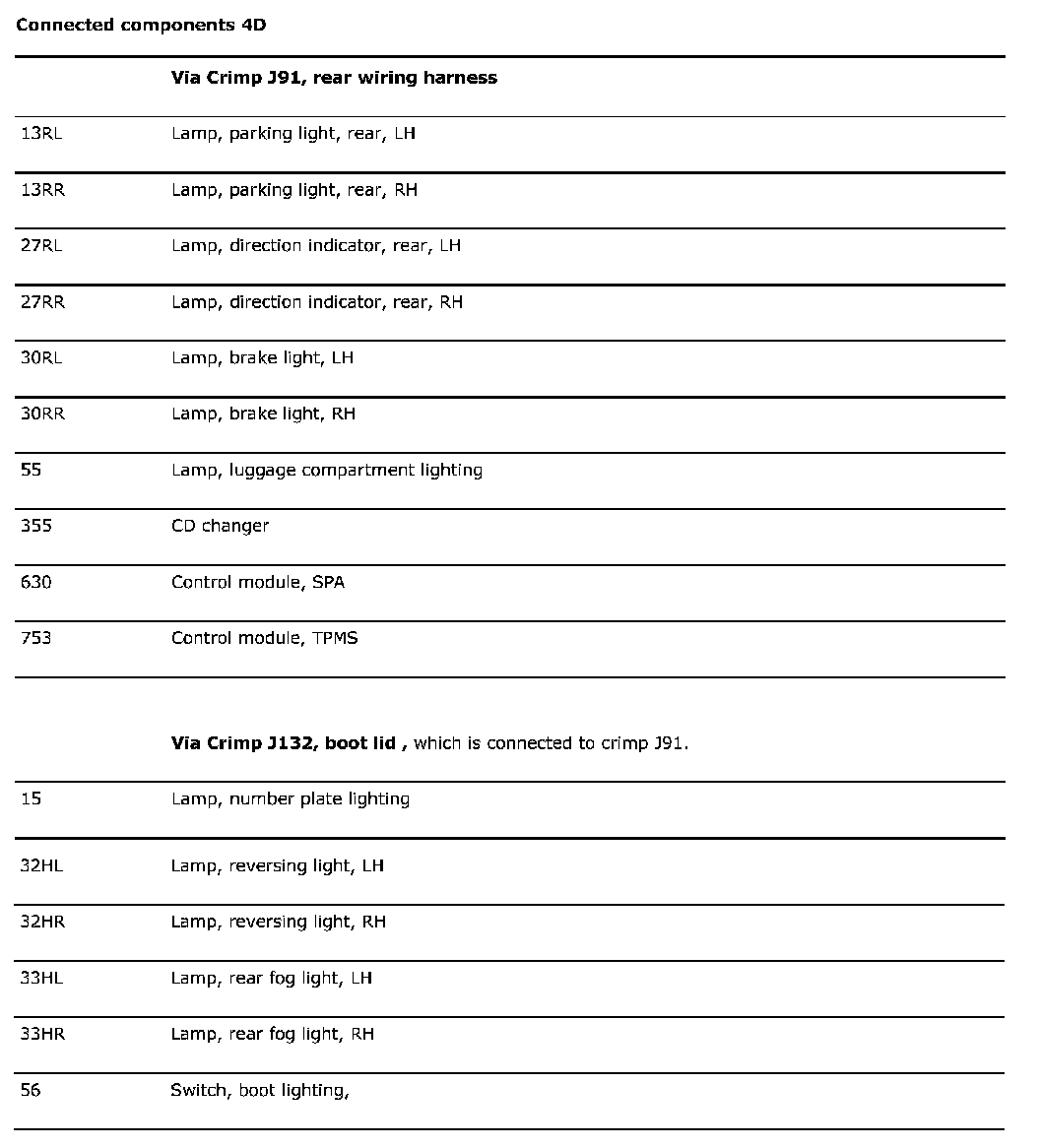

Connected Components 4D:

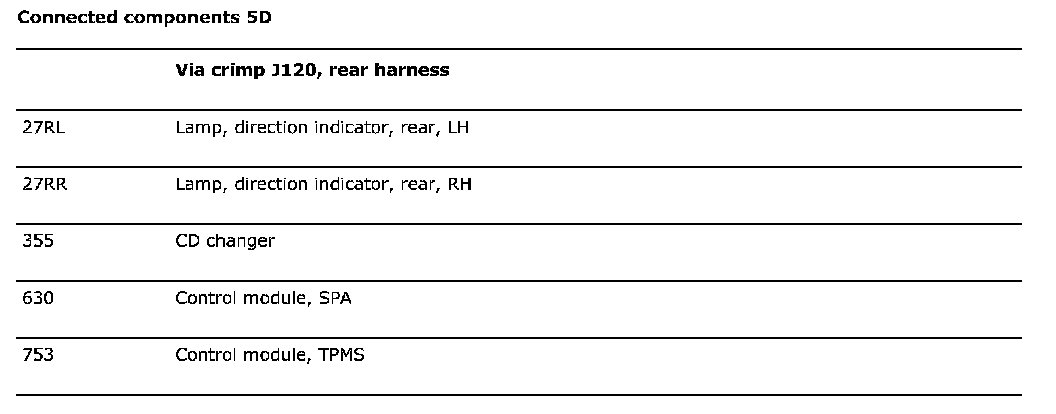

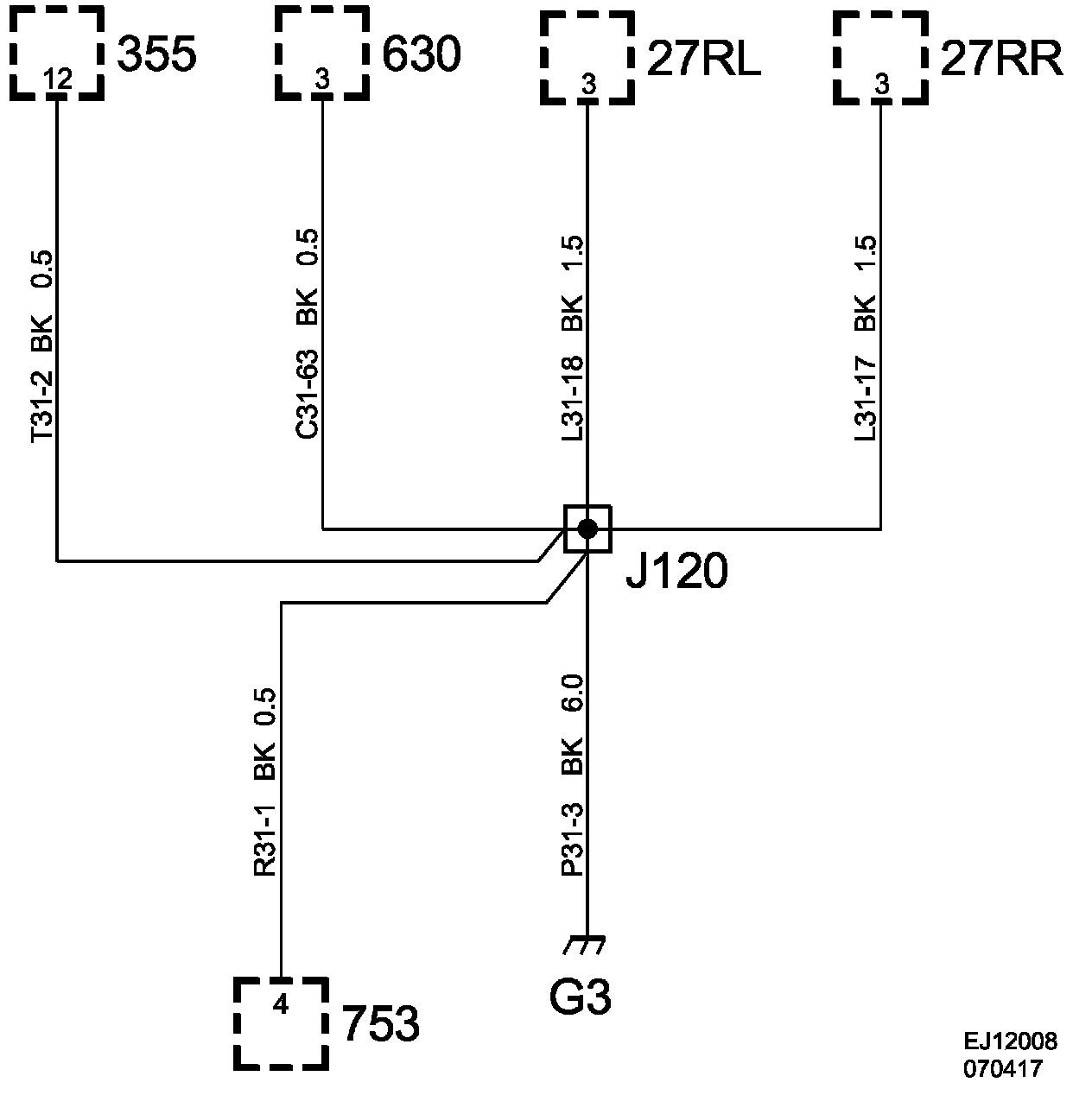

Connected Components 5D:
