Grounding Point G5
Grounding Point G5

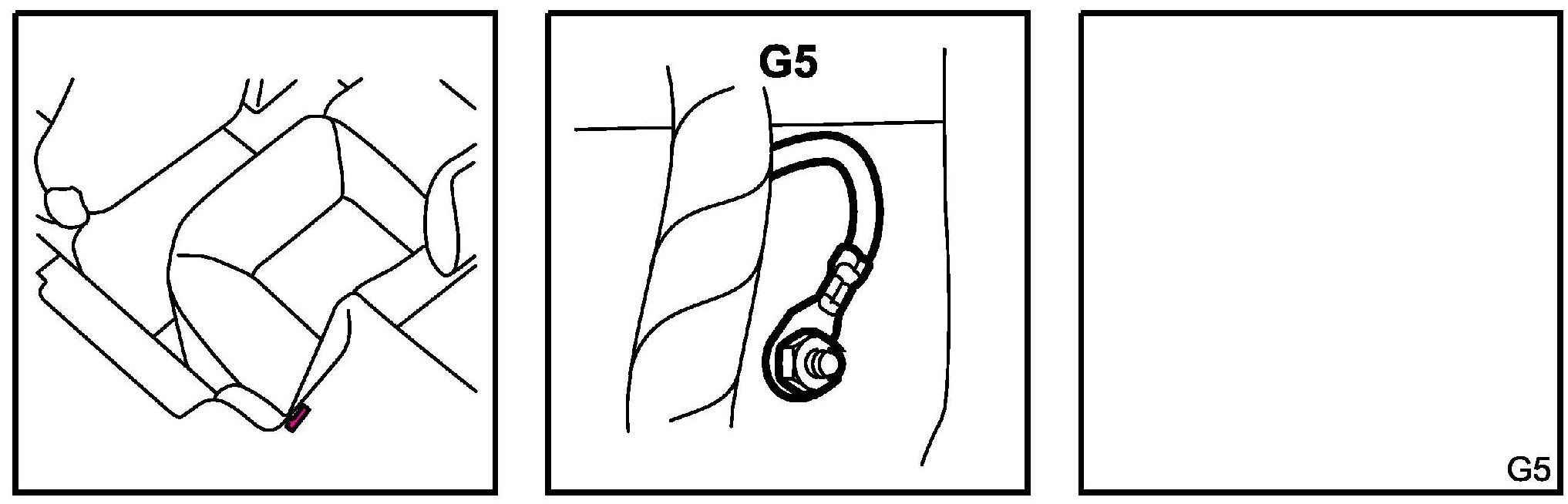

Location:
Under left-hand corner of rear seat.

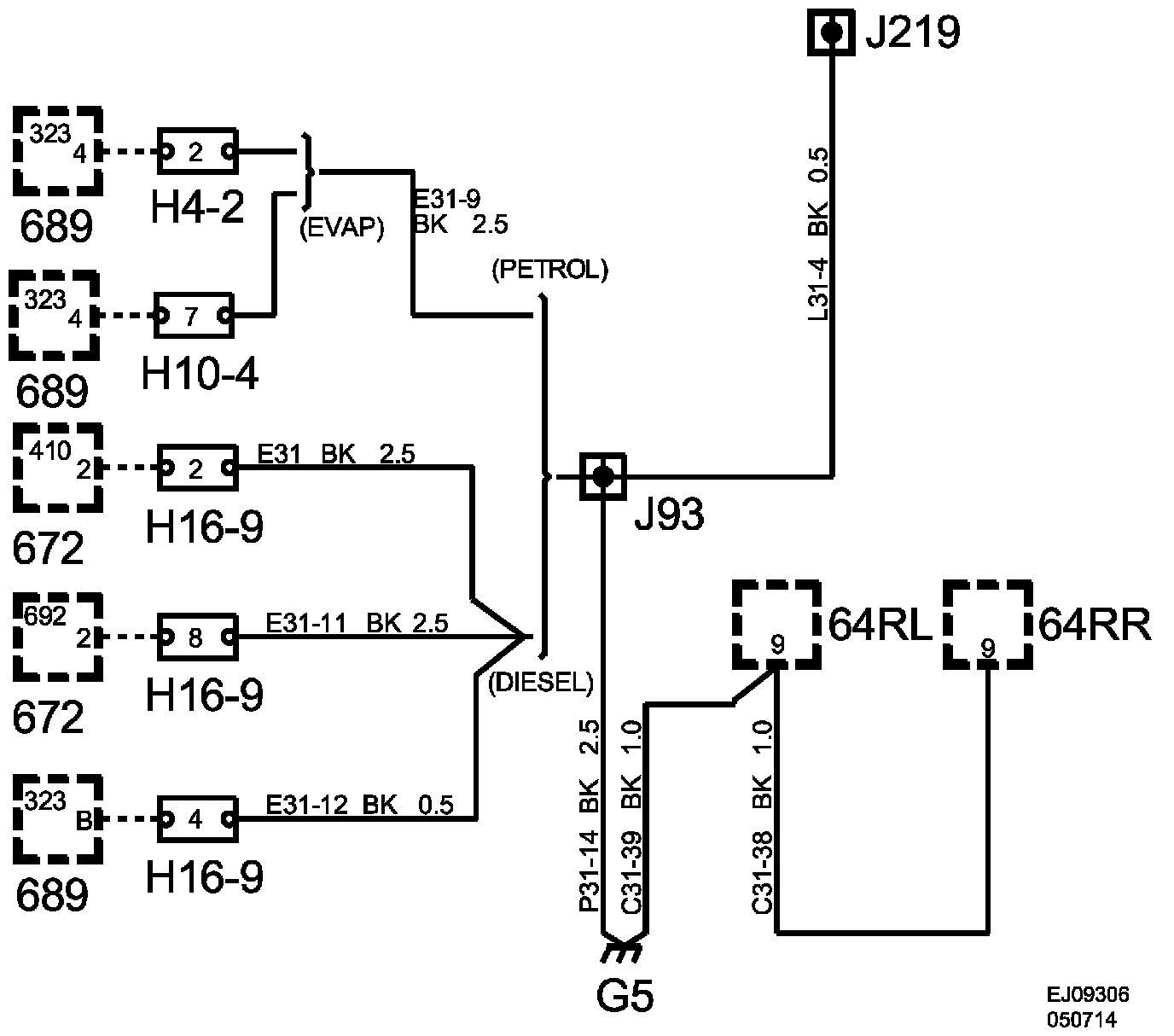

Grounding Point G5:

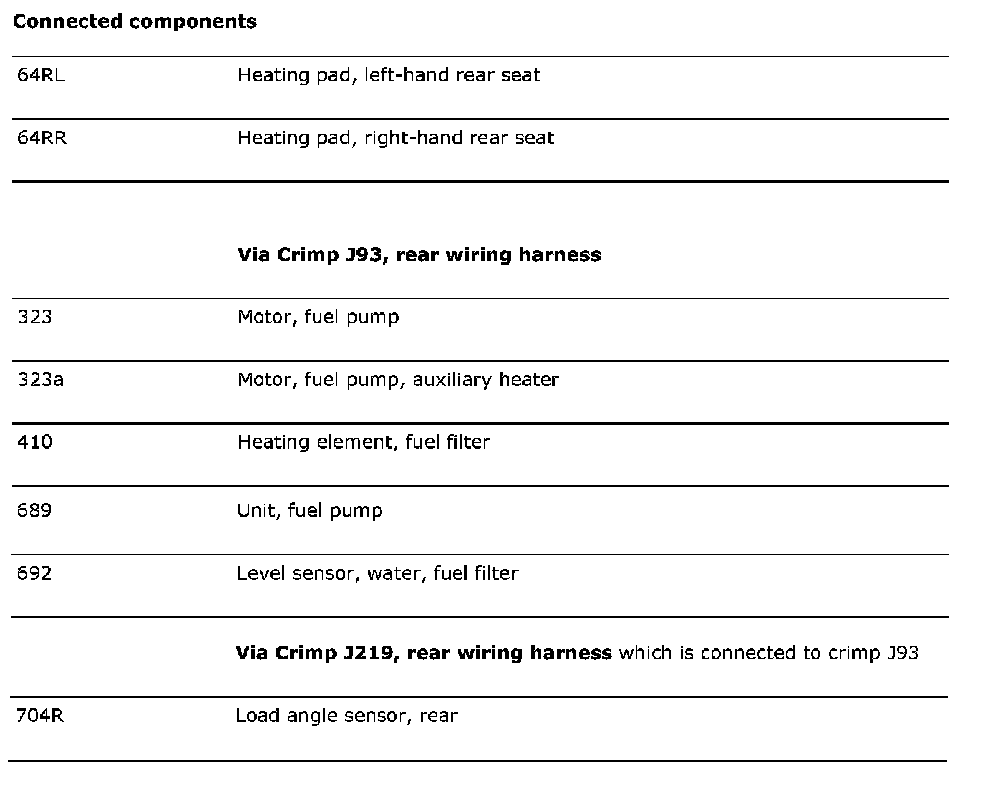

Connected Components:
